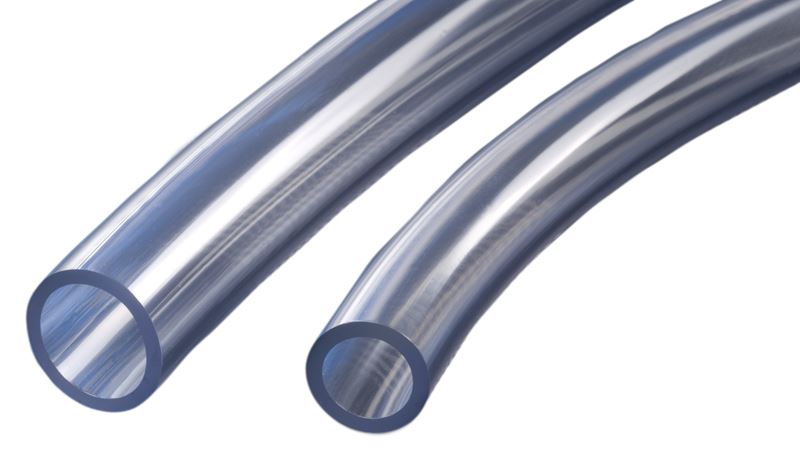

K018-0305X100 Kuri Tec® by Kuriyama | Klearon™ 68 | K018 Series | Medical & Food Grade Clear PVC Tubing | 3/16" ID | 5/16" OD | 1/16" Wall Thickness | 100ft Length

K018-0305X100 Kuri Tec® by Kuriyama | Klearon™ 68 | K018 Series | Medical & Food Grade Clear PVC Tubing | 3/16" ID | 5/16" OD | 1/16" Wall Thickness | 100ft Length

Sale price$32.53

Kuri Tec® by Kuriyama
KLEARON™ 68 | K018 Series | Food Grade Clear PVC Tubing

Clear Phthalate Free PVC food grade tubing for applications requiring more flexibility.

Ideal for medical, laboratory, and water system applications, including USP Class VI uses.

Suitable for water transfer, purification, beverage dispensing, ice making, and general air or drainage lines where added flexibility is desired.

Package Quantity: 100 Foot

In stock
Buy More, Save More!
Quantity Price Each
10–39 $30.58
40–79 $27.65
80+ $24.40
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Kuri Tec
Series:
  • KLEARON 68
  • K018 Series
Color(s):
  • Clear/Semi-Clear
General Applications:
  • Ideal for medical applications requiring USP class VI.
  • Similar to K010 applications in which a slightly more flexible tube is desired by the customer.
  • Tubing for laboratories.
  • Water transfer, purification systems.
  • Beverage dispensing & ice making applications.
  • Water, air, drainage lines.
Construction:
  • Crystal clear Phthalate Free PVC compound, formulated with ingredients in compliance with applicable FDA, RoHS, and USP Class VI requirements.
Service Temperature Range:
  • +25°F (-4°C) to +150°F (+65°C)
Features and Advantages:
  • High gloss.
  • Blue tint.
  • Food grade clear PVC tubing.
  • Self-extinguishing.
  • Compound hardness 68±3 Shore "A".
  • Phthalate Free.
Specifications:
  • FDA
  • Phthalate Free
  • RoHS
  • USP
Notes:
  • Working Pressure decreases as temperature increases. Pressure ratings can only be obtained with proper coupling procedures. Use of compression fittings with Kuri Tec® non-reinforced PVC tubing is not recommended. Hose claims involving use of these fittings will be disallowed
Part Number Nominal ID Nominal OD Nominal Wall Working
Pressure		 Approx. Weight
per Pkg
in mm in mm in mm (PSI)
@70°F
(20°C)
K018-0204X100 1/8" 3.2mm 1/4" 6.4mm 1/16" 1.6mm 65 PSI 2.0 lbs.
K018-0305X100 3/16" 4.8mm 5/16" 7.9mm 1/16" 1.6mm 55 PSI 2.7 lbs.
K018-0306X100 3/16" 4.8mm 3/8" 9.5mm 3/32" 2.4mm 60 PSI 4.5 lbs.
K018-0406X100 1/4" 6.4mm 3/8" 9.5mm 1/16" 1.6mm 55 PSI 3.4 lbs.
K018-0407X100 1/4" 6.4mm 7/16" 11.1mm 3/32" 2.4mm 58 PSI 5.5 lbs.
K018-0507X100 5/16" 7.9mm 7/16" 11.1mm 1/16" 1.6mm 50 PSI 4.0 lbs.
K018-0508X100 5/16" 7.9mm 1/2" 12.7mm 3/32" 2.4mm 55 PSI 6.5 lbs.
K018-0608X100 3/8" 9.5mm 1/2" 12.7mm 1/16" 1.6mm 45 PSI 4.7 lbs.
K018-0609X100 3/8" 9.5mm 9/16" 14.3mm 3/32" 2.4mm 50 PSI 7.5 lbs.
K018-0709X100 7/16" 11.1mm 9/16" 14.3mm 1/16" 1.6mm 35 PSI 5.3 lbs.
K018-0810X100 1/2" 12.7mm 5/8" 15.9mm 1/16" 1.6mm 30 PSI 6.0 lbs.
K018-1013X100 5/8" 15.9mm 13/16" 20.6mm 3/32" 2.4mm 35 PSI 11.6 lbs.

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
