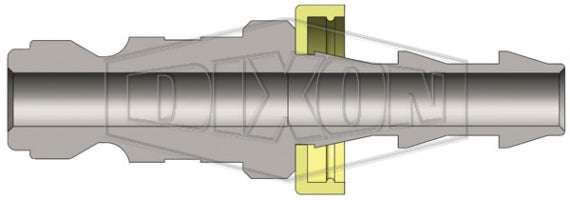

J2B2 by Dixon Valve | Pneumatic Quick Disconnect Coupling | J-Series | Push-Loc Hose Barb | 1/4" Hose ID x 1/4" Automotive Interchange | Plug | Steel
J2B2 by Dixon Valve | Pneumatic Quick Disconnect Coupling | J-Series | Push-Loc Hose Barb | 1/4" Hose ID x 1/4" Automotive Interchange | Plug | Steel

J2B2 by Dixon Valve | Pneumatic Quick Disconnect Coupling | J-Series | Push-Loc Hose Barb | 1/4" Hose ID x 1/4" Automotive Interchange | Plug | Steel

Minimum Order Quantity: 5 Units

Sale price$7.63

Dixon Valve & Coupling
Pneumatic Coupling: J-Series Automotive Interchange Plug (Push-Loc Barb)
Buy More, Save More!
Quantity Price Each
20–39 $7.17
40–79 $6.49
80+ $5.72
Discounts applied in cart/checkout.

Product Data:

Series:
  • J Series
Shape:

Straight

Ends Configuration:
  • 1/4in Male Tru-Flate QD Interchange
  • 1/4in Push-on Hose Barb
Compatibility & Interchange:
  • Truflate Automotive Interchange
  • Parker 10 Series, Rectus 55KM and Tomco A2100/PT400
Construction:
  • Machined components are manufactured using solid bar stock.
Safety Notes:
  • Operating pressure for couplings utilizing hose barb connections may be dramatically reduced to that of the hose rating and/or hose end connection combination. Consult hose manufacturer's catalog for hose end connection ratings. If in doubt, test under controlled conditions for suitability to application.
  • Dixon cannot assume liability for misapplication of production resulting in equipment down-time, lost production, and/or personal injury including death.
  • It is important to be safe when installing quick disconnect couplings into a pneumatic circuit. Never install a pneumatic coupling directly into an air tool, use a piece of hose that is at least 18" long, between the tool and the coupling, to prevent damage to the coupling. To protect the operator, safety devices, such as a safety check valve and safety cable should be installed in case there is a hose or coupling failure.
Additional Information:
J-Series | Automotive Interchange Plug (Push-Loc Barb)
Part Number Coupling Type Body Size Threads Material Length Maximum OD Hex Working Pressure / Burst Pressure
when Connected to:
J2B2 Plug/Male 1/4" 1/4" Steel 2.09"
(53.1mm)		 0.69"
(17.5mm)		 -
  • Brass Coupler & Steel Plug: Max. Working: 500 PSI (35 bar) | Burst: 11,500 PSI (793 bar)
    J2B3 Plug/Male 1/4" 3/8" Steel 2.09"
    (53.1mm)    		 0.86"
    (21.8mm)    		 -
    • Brass Coupler & Steel Plug: Max. Working: 500 PSI (35 bar) | Burst: 11,500 PSI (793 bar)
      J3B3 Plug/Male 3/8" 3/8" Steel 2.21"
      (56.1mm)      		 0.75"
      (19.1mm)      		 -
      • Steel Coupler & Steel Plug: Max. Working: 500 PSI (35 bar) | Burst: 18,000 PSI (1,241 bar)
        J4B4 Plug/Male 1/2" 1/2" Steel 2.67"
        (67.8mm)        		 0.75"
        (19.1mm)        		 -
        • Steel Coupler & Steel Plug: Max. Working: 500 PSI (35 bar) | Burst: 10,000 PSI (690 bar)

          Dixon Valve & Coupling

          Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
