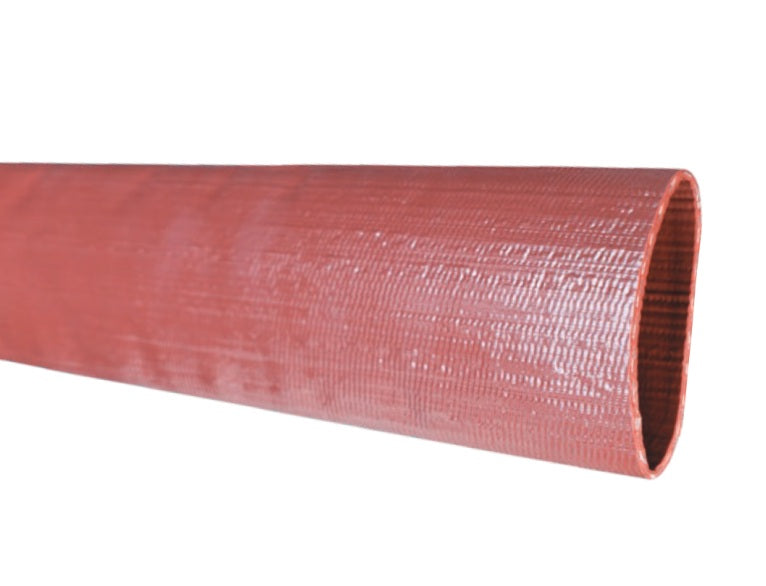

IS800X300 Ironsides® by Kuriyama | IS Series | Premium Heavy Duty Water Discharge Hose | PVC | 8" Size | 8.150" Hose ID | Brick Red | 300ft Length
Kuriyama

IS800X300 Ironsides® by Kuriyama | IS Series | Premium Heavy Duty Water Discharge Hose | PVC | 8" Size | 8.150" Hose ID | Brick Red | 300ft Length

Contact for Price

If you are interested in this item please fill out the Contact Form below.

Contact Us

How can we help you?

Price, availability, and details—available upon request.

SPECIFICATIONS

Applications: Agriculture
Construction
Industrial
Mining
Quarry
Construction: Spiral homogeneous PVC construction is ideal for agriculture and mining applications, and provides for minimal elongation.
Service Temperature Range: -10°F (-12°C) to +140°F (+60°C)
Other Features:
  • Durable PVC Material - Provides good abrasion, chemical and UV resistance.
  • Premium Heavy Duty Construction - Our most durable PVC layflat hose. Designed for applications requiring higher working pressures.
  • MSHA Accepted - Hose accepted by United States Dept. of Labor's Mine Safety and Health Administration as having met the Interim Fire Criteria Acceptance of Products Taken Into Underground Mines, acceptance no. IC-218/3.
  • UV Resistant - Hose resists damage that can result from exposure to UV light, allowing for prolonged outdoor use.
  • Smooth PVC Tube - Provides low friction loss.
  • PVC Cores - Hoses coiled around durable PVC cores providing for easy unwinding.
  • Compact Design - Flat hose design rolls up into tight coils for easy storage and transport, takes up less space than other hoses.
Part Number
100ft		 Part Number
300ft		 Size Hose ID Wall
Thickness		 Working
Pressure
(PSI)		 Burst
Pressure
(PSI)
(in) (mm) (in) (mm) (in) at 68°F at 68°F
- IS150X300 1-1/2" 38.1mm 1.610" 40.9mm 0.087" 150 PSI 450 PSI
- IS200X300 2" 50.8mm 2.090" 53.1mm 0.091" 150 PSI 450 PSI
- IS250X300 2-1/2" 63.5mm 2.579" 65.5mm 0.095" 150 PSI 450 PSI
- IS300X300 3" 76.2mm 3.090" 78.5mm 0.098" 150 PSI 450 PSI
- IS400X300 4" 101.6mm 4.098" 104.1mm 0.110" 125 PSI 375 PSI
- IS600X300 6" 152.4mm 6.161" 156.5mm 0.118" 115 PSI 345 PSI
IS800X100 IS800X300 8" 203.2mm 8.150" 207.0mm 0.122" 70 PSI 210 PSI
IS1000X100 - 10" 254.0mm 10.120" 257.0mm 0.130" 65 PSI 195 PSI

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
