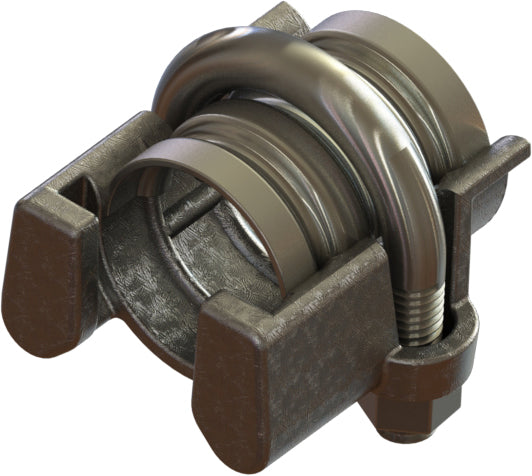

IC-5 by Campbell Fittings | Interlocking U-Bolt Clamp | Double U-Bolt | 1-1/4" Hose Size | 1-9/16" - 2" Hose OD min/max

IC-5 by Campbell Fittings | Interlocking U-Bolt Clamp | Double U-Bolt | 1-1/4" Hose Size | 1-9/16" - 2" Hose OD min/max

Sale price$38.95

by Campbell
Interlocking U-Bolt Clamps:Double U-Bolt
Buy More, Save More!
Quantity Price Each
10–39 $36.61
40–79 $33.11
80+ $29.21
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight
Recommended Use:
  • High-pressure steam and air
Recommended Use:
  • 360 design wraps completely around hose for superior retention.
  • Clamps fit hoses tightly without cracking, eliminating costly rework.
  • Bolts on "up side" allow easier tightening/re-tightening and improve "dragability".
  • Field repairable.
Part Number Hose OD (min) Hose OD (max) Hose Size
IC-4 1-5/16" 1-1/2" 1"
IC-4L 1-1/2" 1-11/16" 1"
IC-5 1-9/16" 2" 1-1/4"
IC-6 1-15/16" 2-3/16" 1-1/2"
IC-6L 2-3/16" 2-3/8" 1-1/2"
IC-8 2-11/32" 2-11/16" 2"
IC-8L 2-11/16" 2-15/16" 2"
IC-10 3" 3-9/32" 2-1/2"
IC-10L 3-9/32" 3-9/16" 2-1/2"

Campbell Fittings

Campbell Fittings offers a range of hose fittings, couplings, ferrules, and sleeves, for applications across a variety of industries.
