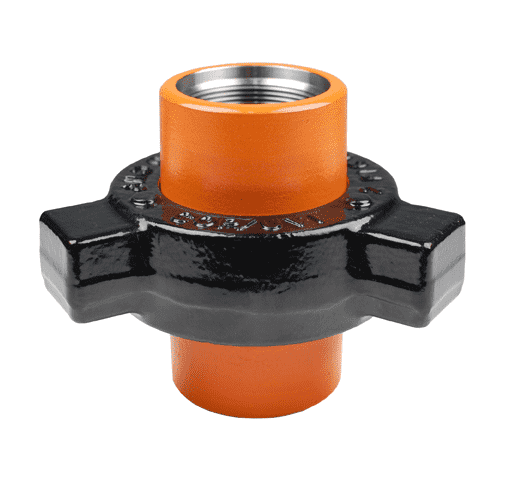

HUT602-1 by Kuriyama | Figure 602 | Threaded Hammer Union | 6000 PSI | CWP | 1" Female NPT x 1" Female NPT | Buna-N

HUT602-1 by Kuriyama | Figure 602 | Threaded Hammer Union | 6000 PSI | CWP | 1" Female NPT x 1" Female NPT | Buna-N

Sale price$64.06

Kuriyama Couplings™ - Hammer Unions - Figure 602 - Threaded Female NPT x Female NPT - 6000 PSI CWP

Buy More, Save More!
Quantity Price Each
10–39 $60.22
40–79 $54.45
80+ $48.05
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Ends Configuration:
  • 1in Female NPT
  • 1in Female NPT
Material(s):
  • Ductile Iron
Applications:
  • Applications include oil, gas, air, and water.
  • For use with Kuriyama Hoses
Features:
  • Specially Designed Lip Type Elastomer Seal Protects Metal to Metal Sealing Surface and Reduces Line Flow Turbulence.
  • Unions conform to NACE, ISO and DNV standards.
  • Color coded for easy identification.
  • CWP (Cold Working Pressure) is the maximum pressure at 70 deg. F (+21 deg. C).
  • Unions are completely interchangeable with competitors of like products.
Materials:
  • ASTM Grade 65-45-12
  • ASTM A-105
  • ASTM A29
  • NPT threads conform to ASME B1.20.1
  • Elastomer seals are BUNA-N
Part Number Size Weight (Lbs.)
HUT602-1 1" x 1" 3.75 lbs
HUT602-2 2" x 2" 12.90 lbs
HUT602-3 3" x 3" 22.80 lbs
HUT602-4 4" x 4" 37.04 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
