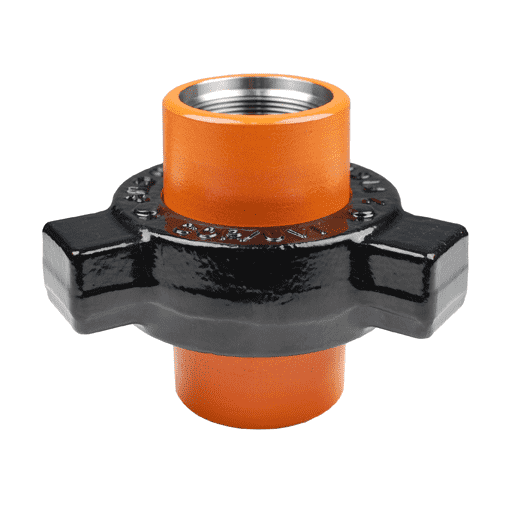

HUT400-3 by Kuriyama | Figure 400 | Threaded Hammer Union | 4000 PSI | CWP | 3" Female NPT x 3" Female NPT | Buna-N

HUT400-3 by Kuriyama | Figure 400 | Threaded Hammer Union | 4000 PSI | CWP | 3" Female NPT x 3" Female NPT | Buna-N

Sale price$176.99

Kuriyama Couplings™ - Hammer Unions - Figure 400 - Threaded Female NPT x Female NPT - 4000 PSI CWP

Buy More, Save More!
Quantity Price Each
5–19 $166.37
20–59 $150.44
60+ $132.74
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Ends Configuration:
  • 3in Female NPT
  • 3in Female NPT
Material(s):
  • Ductile Iron
Applications:
  • Applications include oil, gas, air, and water.
  • For use with Kuriyama Hoses
Features:
  • Medium Pressure Union.
  • Unions conform to NACE, ISO and DNV standards.
  • Color coded for easy identification.
  • CWP (Cold Working Pressure) is the maximum pressure at 70 deg. F (+21 deg. C).
  • Unions are completely interchangeable with competitors of like products.
Materials:
  • ASTM Grade 65-45-12
  • ASTM A-105
  • ASTM A29
  • NPT threads conform to ASME B1.20.1
  • Elastomer seals are BUNA-N
Part Number Size Weight (Lbs.)
HUT400-2 2" x 2" 11.00 lbs
HUT400-3 3" x 3" 19.60 lbs
HUT400-4 4" x 4" 29.65 lbs
