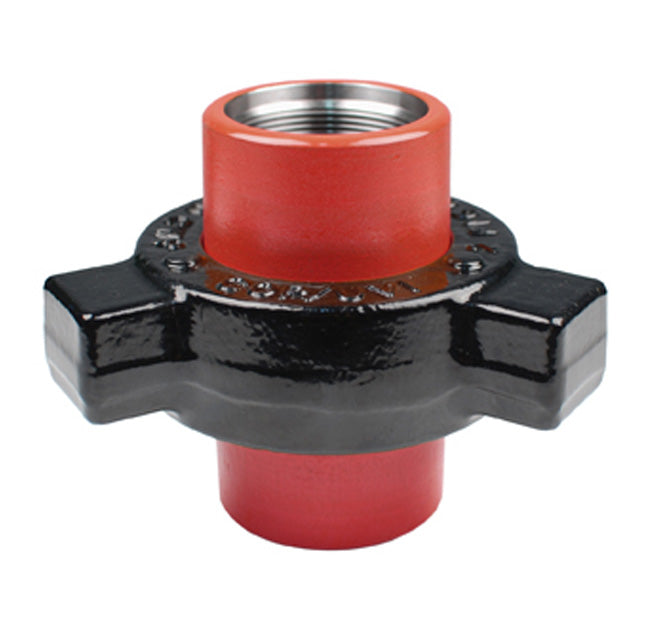

HUT400-3 by Kuriyama | HUT400 Series | Threaded Hammer Union | Figure 400 | 3" Size | 4000 PSI CWP | Carbon Steel

HUT400-3 by Kuriyama | HUT400 Series | Threaded Hammer Union | Figure 400 | 3" Size | 4000 PSI CWP | Carbon Steel

Sale price$174.53

Kuriyama of America Inc.
HUT400 Series | Threaded Hammer Union | Figure 400

Applications include oil, gas, air, and water.

Color-coded for easy identification.

Unions are interchangeable with like products.
Buy More, Save More!
Quantity Price Each
5–19 $164.06
20–59 $148.35
60+ $130.90
Discounts applied in cart/checkout.

What are the Features?

  • Applications include oil, gas, air, and water.
  • Color-coded for easy identification.
  • Unions are interchangeable with like products.
  • CWP (Cold Working Pressure) is the maximum pressure at +70¢ªF (+21¢ªC).

What are the Materials?

  • Body: AISI 1040 Carbon Steel.
  • Nut: AISI 1040 Carbon Steel.
Part Number Size
(in)		 CWP Rating
at 70°F 		Weight
Each
(lbs)
HUT400-2 2" 4000 PSI 11.00 lbs
HUT400-3 3" 4000 PSI 19.60 lbs
HUT400-4 4" 4000 PSI 29.65 lbs

Product Data:

Series:
  • HUT400 Series
MAWP:

4000

Shape:

Straight

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
