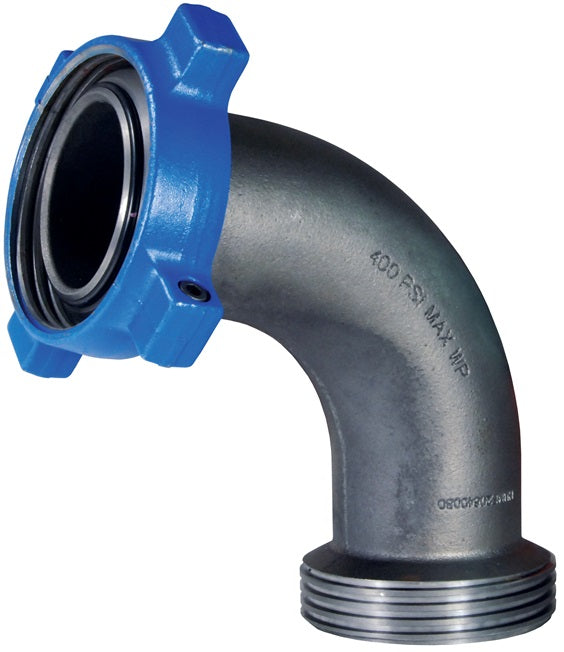

HUMF20640090 by Dixon Valve | Boss® LPS One-Piece Hammer Union Adapter | 90° Elbow | Figure 206 | 4" Size | Male Hammer Union x Female Hammer Union | Ductile Iron

HUMF20640090 by Dixon Valve | Boss® LPS One-Piece Hammer Union Adapter | 90° Elbow | Figure 206 | 4" Size | Male Hammer Union x Female Hammer Union | Ductile Iron

Sale price$606.95

Dixon Valve
Boss® | LPS One-Piece Hammer Union Elbow Adapter | Male Hammer Union x Female Hammer Union

Used in the transfer of water, brine, water-based chemicals, water-based acids and gelatinous proppant (sand) slurry used at hydraulic fracturing sites.
Buy More, Save More!
Quantity Price Each
5–14 $570.53
15–29 $515.91
30+ $455.21
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Boss
Shape:

90 Degree
Features:
  • No welds or pipe threads to deteriorate to cause premature leakage.
  • Two-piece nut it pinned and bolted for perfect alignment.
  • Figure 206 threads are interchangeable with other reliable brands.
  • Easy to weld to 12" pipe manifolds.
  • Used with HU200400RN two-piece nut.
Material:
  • Ductile Iron
Specifications:
  • Iron adapter meets ASTM standards.
  • Forged Steel nut meets AISI standards.
Part Number Size Figure Description
HUMF20640045 4" 206 Male Hammer Union x Female Hammer Union | 45° Elbow
HUMF20640060 4" 206 Male Hammer Union x Female Hammer Union | 60° Elbow
HUMF20640080 4" 206 Male Hammer Union x Female Hammer Union | 80° Elbow
HUMF20640090 4" 206 Male Hammer Union x Female Hammer Union | 90° Elbow

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
