HU1502200BW by Dixon Valve | Hammer Union | 1502-Series | Buttweld | 15,000 NSCWP (PSI) | 2" Size | Forged Steel
HU1502200BW by Dixon Valve | Hammer Union | 1502-Series | Buttweld | 15,000 NSCWP (PSI) | 2" Size | Forged Steel

HU1502200BW by Dixon Valve | Hammer Union | 1502-Series | Buttweld | 15,000 NSCWP (PSI) | 2" Size | Forged Steel

Sale price$261.60
Buy more, save moreDiscounts applied in cart/checkout.
Features:

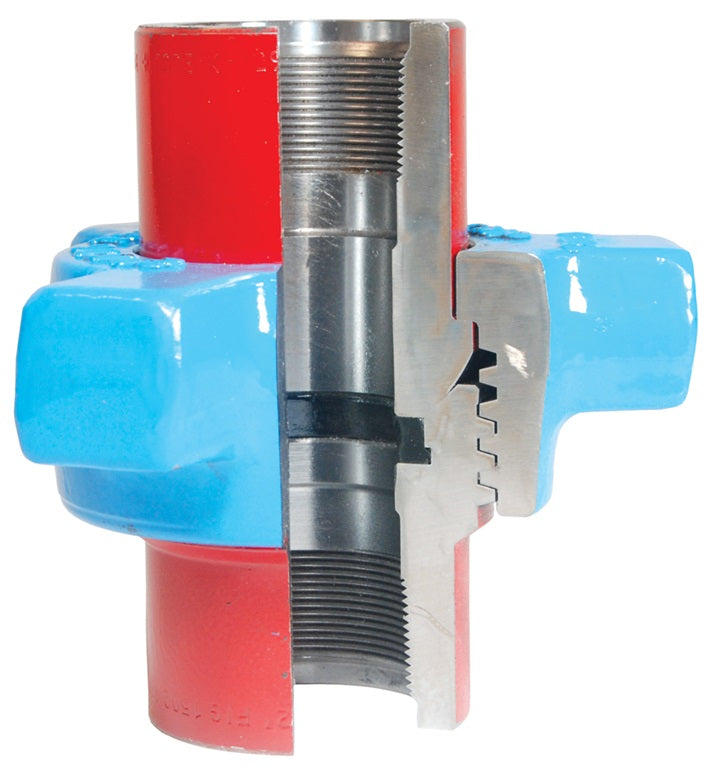

  • Lip type seal ring minimizes fluid flow turbulence while creating a pressure seal.
Construction:
  • Forged Steel.

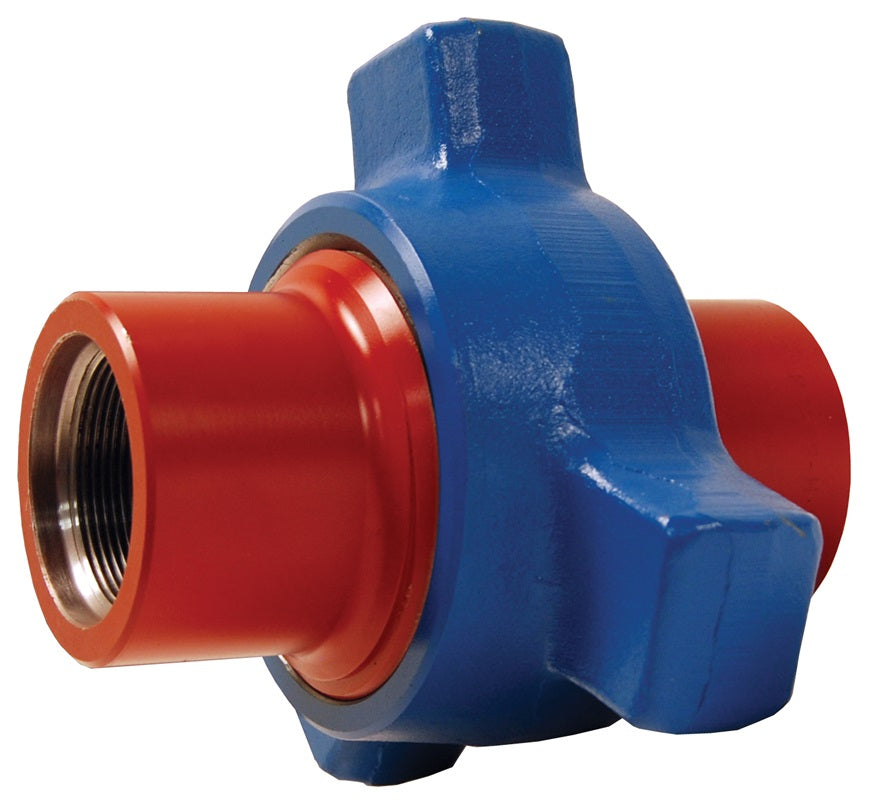

  • Red sub, blue nut.
Specifications:
  • Temperature range: -20°F to 250°F (-29°C to 121°C).
  • Up to 15,000 PSI NSCWP (non-shock cold working pressure).
  • Pressure rating given at ambient temperature 70°F/21°C.
Safety Notes:
  • Hammer unions work at extremely high pressures. Mismatching components of one series with another (i.e. series 602 with series 1502) can lead to destruction of property, serious bodily injury or death.
Part Number Size Configuration NSCWP (PSI)
HU1502200 2" Threaded 15000 PSI NSCWP
HU1502200BW* 2" Buttweld 15000 PSI NSCWP
HU1502300 3" Threaded 15000 PSI NSCWP
HU1502300BW* 3" Buttweld 15000 PSI NSCWP
HU1502400 4" Threaded 15000 PSI NSCWP

* Buttweld ends are schedule XXS (double extra strong schedule)

Additional Product Data:

Series:
  • 1502 Series
Shape:

Straight

Ends Configuration:
  • 2in Female NPT
  • 2in Female NPT
  • Some Ends Match

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
