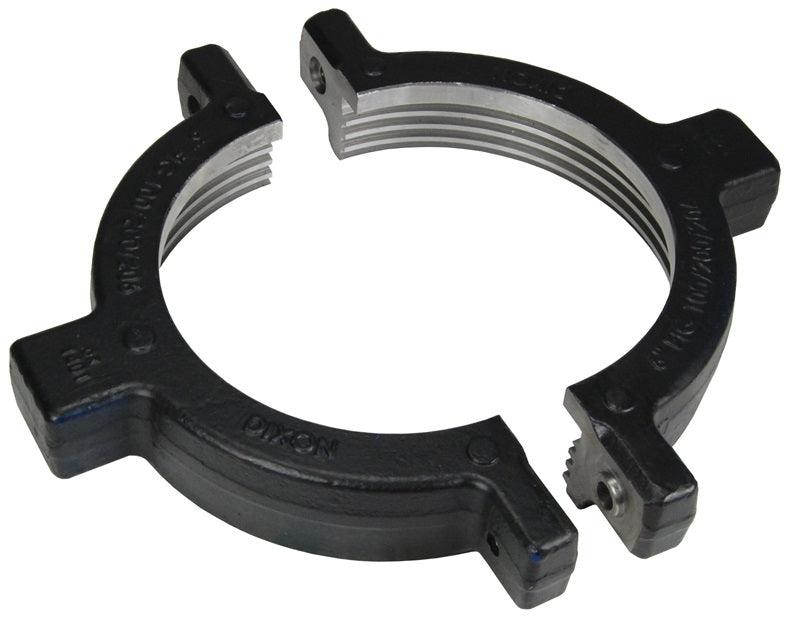

HU100800RN by Dixon Valve | Boss® LPS Hammer Union Split Nut | Figure 100 | Two-Piece | 8" Size | Forged Steel (AISI Standard)

HU100800RN by Dixon Valve | Boss® LPS Hammer Union Split Nut | Figure 100 | Two-Piece | 8" Size | Forged Steel (AISI Standard)

Sale price$479.85

Dixon Valve
Boss® | LPS Hammer Union Split Nut | Two-Piece

Replacement for damaged hammer union nuts.

Used with male one-piece flange adapters.

Interchangeable with reliable brands.
Buy More, Save More!
Quantity Price Each
5–14 $451.06
15–29 $407.87
30+ $359.89
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Boss
Shape:

No Orientation

Material(s):
  • Steel
Features:
  • Lug design provides enlarged surface area to hammer.
  • Repair nut is pinned and bolted for perfect alignment.
  • Nut can be installed on pre-existing hammer union assembly.
  • 4" Figure 200/206 nut is interchangeable with reliable brands.
  • 6" and 8" Figure 100/200/206 nuts are interchangeable with reliable brands.
Use:
  • Dixon recommends using Loctite® Threadlocker Red 271™ when bolting together two-piece hammer union nuts to ensure that bolts do not loosen when in service. Bolt torque recommendation is 60 foot pounds. Option two is to weld the seams of the split nut.
Construction:
  • Includes Bolts.
  • Forged steel meets AISI standards.
Specification:
  • Cold working pressure: Figure 50 500 PSI, Figure 100 1,000 PSI, Figure 200/206 2,000 PSI.
Part Number Size Description
HU200400RN 4" Figure 200/206, Blue (Includes Bolts)
HUS500RN 5" Figure 50, Black (Includes Bolts)
HU100600RN 6" Figure 100, Black (Includes Bolts)
HU200600RN 6" Figure 200/206, Blue (Includes Bolts)
HU100800RN 8" Figure 100, Black (Includes Bolts)
HU200800RN 8" Figure 200/206, Blue (Includes Bolts)

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
