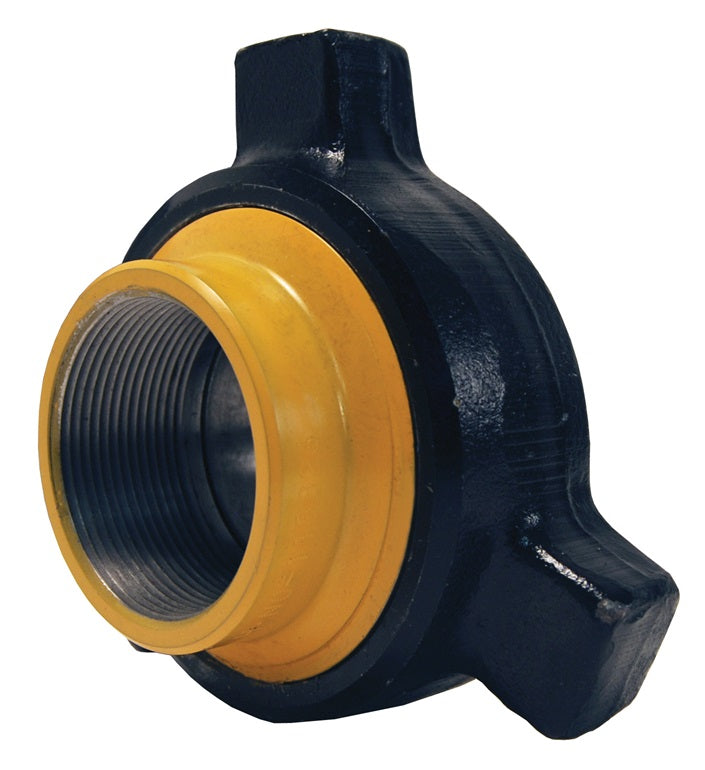

HU100400 by Dixon Valve | Boss® LPS Hammer Union | 100-Series | Threaded | 1,000 NSCWP (PSI) | 4" Size | Forged Steel
HU100400 by Dixon Valve | Boss® LPS Hammer Union | 100-Series | Threaded | 1,000 NSCWP (PSI) | 4" Size | Forged Steel

HU100400 by Dixon Valve | Boss® LPS Hammer Union | 100-Series | Threaded | 1,000 NSCWP (PSI) | 4" Size | Forged Steel

Sale price$176.99
Factory Order - Lead Time Applies
Buy more, save moreDiscounts applied in cart/checkout.
Features:
  • Non-shocking cold water pressure means that the rated value is the maximum operating pressure at ambient temperature.
  • No spikes higher than this pressure.
  • No instantaneous pressure increases (0-2,000 PSIG in 1/4 of a second).
Construction:

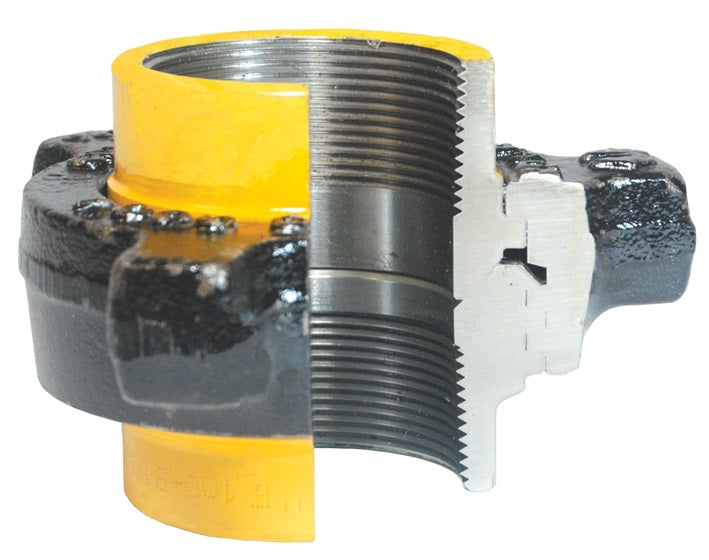

  • Forged Steel.
  • Yellow sub, black nut.
Specification:
  • Temperature range: -20°F to 250°F (-29°C to 121°C)
  • Ambient temperature: 70°F (21°C)
Safety Notes:
  • Hammer unions work at extremely high pressures, mismatching components of one series with another (i.e. series 602 with series 1502) can lead to destruction of property, serious bodily injury, or death.
Part Number Size Configuration NSCWP (PSI)
HU100200 2" Threaded 1,000 PSI NSCWP
HU100200BW* 2" Buttweld 1,000 PSI NSCWP
HU100250 2-1/2" Threaded 1,000 PSI NSCWP
HU100300 3" Threaded 1,000 PSI NSCWP
HU100400 4" Threaded 1,000 PSI NSCWP
HU100400BW* 4" Buttweld 1,000 PSI NSCWP
HU100600 6" Threaded 1,000 PSI NSCWP
HU100800 8" Threaded 1,000 PSI NSCWP

* Buttweld ends are schedule 40.

Additional Product Data:

Brand:
  • Boss
Series:
  • 100 Series
Shape:

Straight

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
