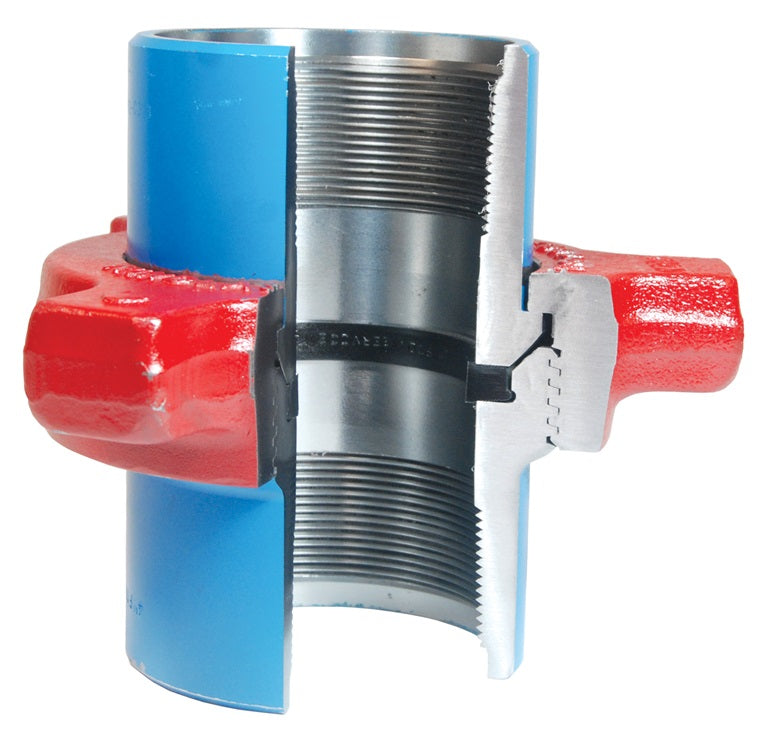

HU1002200 by Dixon Valve | Hammer Union | 1002-Series | Threaded | 10,000 NSCWP (PSI) | 2" Size | Forged Steel

HU1002200 by Dixon Valve | Hammer Union | 1002-Series | Threaded | 10,000 NSCWP (PSI) | 2" Size | Forged Steel

Sale price$210.30

Dixon Valve
Hammer Union | 1002-Series

For use in high pressure systems and truck mounting applications running water, oil or mud.
Buy More, Save More!
Quantity Price Each
5–19 $197.68
20–59 $178.76
60+ $168.24
Discounts applied in cart/checkout.
Features:
  • Lip type seal ring minimizes fluid flow turbulence while creating a pressure seal.
Construction:
  • Forged Steel.
  • Blue sub, red nut.
Specifications:
  • Temperature range: -20°F to 250°F (-29°C to 121°C).
  • Up to 10,000 PSI NSCWP (non-shock cold working pressure).
  • Pressure rating given at ambient temperature 70°F/21°C.
Safety Notes:
  • Hammer unions work at extremely high pressures. Mismatching components of one series with another (i.e. series 602 with series 1502) can lead to destruction of property, serious bodily injury or death.
Part Number Size Configuration NSCWP (PSI)
HU1002100 1" Threaded 10000 PSI NSCWP
HU1002200 2" Threaded 10000 PSI NSCWP
HU1002300 3" Threaded 10000 PSI NSCWP
HU1002400 4" Threaded 10000 PSI NSCWP

Product Data:

Series:
  • 1002 Series
Shape:

Straight

Ends Configuration:
  • 2in Female NPT
  • 2in Female NPT
  • Some Ends Match
