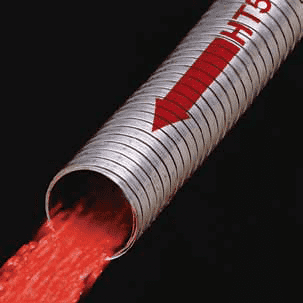

HTSS5250-600X25 Hose-Tec by Kuriyama | HT5000 Series | Smooth Bore (Lined) "Smooth Flow" Interlocked Metal Hose | SS Armor/SS Liner | Extra Heavy Weight | ID: 6" | 304 Stainless Steel | 25ft Length
If you are interested in this item please fill out the Contact Form below.
Contact Us
How can we help you?
Price, availability, and details—available upon request.
SPECIFICATIONS
| Application: | Abrasive Material Handling, Bulk Unloading/Loading (Railcar/Truck), Dry Bulk Transfer (Railcar/Truck/In-Plant), Grain Handling, High Temperature Material Handling, Low Temperature Material Transfer, Plastic Pellet Transfer, Pneumatic Transfer, Railcar - Bulk Unloading/Loading, Truck - Bulk Unloading/Loading, Vacuum Trucks and Equipment | SAE Rating: | N/A |
|---|---|---|---|
| Other Ratings: | N/A | Tube: | 300 Stainless Steel |
| Reinforcement: | N/A | Cover: | 300 Stainless Steel |
| Temperature Range: | Max. Service Temp: Up to 1500 deg. F | Crimp Fittings: | N/A |
| Reusable Fittings: | N/A | Specifications | N/A |
| Other Features: | |||
|
|||
| Part Number | Hose Size ID (in.) | Min Inside Bend Radius (in.) | Length (ft.) | Weight (per foot) |
|---|---|---|---|---|
| HTSS5250-300X25 | 3" | 17.50" | 25ft | 3.75 lbs |
| HTSS5250-350X25 | 3-1/2" | 18.50" | 25ft | 4.35lbs |
| HTSS5250-400X25 | 4" | 19.50" | 25ft | 5.10lbs |
| HTSS5250-450X25 | 4-1/2" | 22.00" | 25ft | 5.40lbs |
| HTSS5250-500X25 | 5" | 24.00" | 25ft | 5.60lbs |
| HTSS5250-600X25 | 6" | 30.00" | 25ft | 6.25lbs |
| HTSS5250-700X25 | 7" | 34.00" | 25ft | 7.80lbs |
| HTSS5250-800X25 | 8" | 37.00" | 25ft | 8.80lbs |
| HTSS5250-1000X25 | 10" | 43.00" | 25ft | 11.00lbs |
| HTSS5250-1200X25 | 12" | 52.00" | 25ft | 13.00lbs |
| HTSS5250-1400X25 | 14" | 60.00" | 25ft | 15.50lbs |
| HTSS5250-1600X25 | 16" | 69.00" | 25ft | 18.00lbs |
