HTSS5150-400X25 Hose-Tec by Kuriyama | HT5000 Series | Smooth Bore (Lined) "Smooth Flow" Interlocked Metal Hose | SS Armor/SS. Liner | Light Weight | ID: 4" | 304 Stainless Steel | 25ft Length

HTSS5150-400X25 Hose-Tec by Kuriyama | HT5000 Series | Smooth Bore (Lined) "Smooth Flow" Interlocked Metal Hose | SS Armor/SS. Liner | Light Weight | ID: 4" | 304 Stainless Steel | 25ft Length

Sale price$1,174.13

Kuriyama Hose Tec® HT5000 Series Smooth Bore(Lined) "Smooth Flow" Interlocked Metal Hose - Light Weight - Stainless Steel

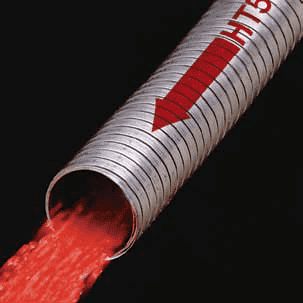

HT5000's Smooth Bore Interlocked Metal Hose combines the Hose Tec® single-strip interlocking armor construction with a second strip liner, providing a smooth interior flexible metal hose that resists material build-up; reduces internal abrasion and material degradation. Materials flow smoothly in one direction shown by arrows.

Package Quantity: 25 FT

Buy More, Save More!
Quantity Price Each
4–7 $1,103.68
8–14 $1,056.72
15+ $939.30
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Hose Tec
Series:
  • HTSS5150 Series
Color(s):
  • Metallic

SPECIFICATIONS

Application: Abrasive Material Handling, Bulk Unloading/Loading (Railcar/Truck), Dry Bulk Transfer (Railcar/Truck/In-Plant), Grain Handling, High Temperature Material Handling, Low Temperature Material Transfer, Plastic Pellet Transfer, Pneumatic Transfer, Railcar - Bulk Unloading/Loading, Truck - Bulk Unloading/Loading, Vacuum Trucks and Equipment SAE Rating: N/A
Other Ratings: N/A Tube: Stainless Steel
Reinforcement: N/A Cover: Stainless Steel
Temperature Range: Max. Service Temp: Up to 1500 deg. F Crimp Fittings: N/A
Reusable Fittings: N/A Specifications N/A
Other Features:
  • Construction: An armor strip is combined with a strip of liner material and formed to create a lined flexible interlocked metal hose that offers superior strength and abrasion-resistance for longer hose life.
  • Directional flow arrows are provided on each length.
  • Thickness: .015" Armor / .015" Liner.
  • Galvanized or Stainless steel liner provides additional strength and greater resistance to abrasion; extends hose life.
  • Smooth liner reduces material degradation and improves loading/unloading time.
  • Provides maximum flow rates for pneumatic conveying applications.
  • Flow indication arrows are provided on each length.
  • Available in standard 25' lengths.
Part Number Hose Size ID (in.) Min Inside Bend Radius (in.) Length (ft.) Weight (per foot)
HTSS5150-150X25 1-1/2" 5.625" 25ft 1.10 lbs
HTSS5150-175X25 1-3/4" 6.50" 25ft 1.35lbs
HTSS5150-200X25 2" 7.50" 25ft 1.60 lbs
HTSS5150-225X25 2-1/4" 8.50" 25ft 1.90 lbs
HTSS5150-250X25 2-1/2" 9.50" 25ft 2.10 lbs
HTSS5150-275X25 2-3/4" 10.50" 25ft 2.30 lbs
HTSS5150-300X25 3" 11.50" 25ft 2.50lbs
HTSS5150-350X25 3-1/2" 13.50" 25ft 2.90lbs
HTSS5150-400X25 4" 15.00" 25ft 3.40lbs
HTSS5150-450X25 4-1/2" 17.00" 25ft 3.75lbs
HTSS5150-500X25 5" 18.50" 25ft 4.10lbs
HTSS5150-600X25 6" 22.00" 25ft 4.90lbs
HTSS5150-700X25 7" 26.50" 25ft 5.80lbs
HTSS5150-800X25 8" 30.50" 25ft 6.60lbs
Note: If utilizing packing material, service temperatures may vary. Note: Standard coil length is 25 ft., WHEN FULLY EXTENDED; other lengths available on request.
