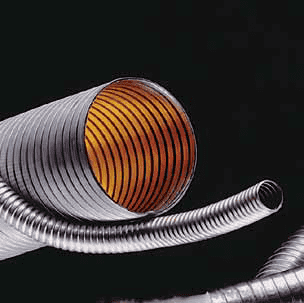

HTS4200-1000X25 Hose-Tec by Kuriyama | HT4000 Series | Rough Bore (Unlined) "Multi-Flex" Interlocked Metal Hose | Medium Weight | ID: 10" | 300 Stainless Steel | 25ft Length
If you are interested in this item please fill out the Contact Form below.
Contact Us
How can we help you?
Price, availability, and details—available upon request.
SPECIFICATIONS
| Application: | Abrasive Material Handling, Air Intake Supply; Fresh Air Intake Bend Restrictor, Bop (Blow Out Protection) for Hydraulic, Cryogenic and Other High Pressure Hoses Bulk Unloading/Loading (Railcar/Truck),Dry Bulk Transfer (Railcar/Truck/In-Plant) Dust/Fume Collection, Engine Exhaust, Environmental/Industrial Clean-Up Fly Ash/Soda Ash Handling, Fume Hood Exhaust, Garage Fume Exhaust, Grain Handling, High Temperature Material Handling,Hot Air Blower/Suction, Hot Air Ducting, Industrial Dryer Vents, Liner for Corrugated/Braided Assemblies, Low Temperature Material Transfer, Oven/Kiln Exhaust, Plastic Pellet Transfer, Pneumatic Transfer, Protective Armor/Shielding for Hoses, Railcar - Bulk Unloading/Loading, Shielding for Wiring, Spot Cooling/Air Conditioning Ducting, Steam Hose Liner Truck - Bulk Unloading/Loading, Truck Exhaust/Flexible Tailpipe Exhaust Vacuum Trucks and Equipment | SAE Rating: | N/A |
|---|---|---|---|
| Other Ratings: | N/A | Tube: | 300 Stainless Steel |
| Reinforcement: | N/A | Cover: | N/A |
| Temperature Range: | Max. Service Temp: Up to 1500 deg. F | Crimp Fittings: | N/A |
| Reusable Fittings: | N/A | Specifications | N/A |
| Other Features: | |||
|
|||
| Part Number | Hose Size ID (in.) | Min Inside Bend Radius (in.) | Length (ft.) | Weight (per foot) |
|---|---|---|---|---|
| HTS4200-150X255 | 1-1/2" | 6.00" | 25ft | 1.00 lbs |
| HTS4200-162X25 | 1-5/8" | 6.50" | 25ft | 1.05 lbs |
| HTS4200-187X25 | 1-7/8" | 7.50 | 25ft | 1.20 lbs |
| HTS4200-200X25 | 2" | 8.00" | 25ft | 1.30lbs |
| HTS4200-225X25 | 2-1/4" | 8.50" | 25ft | 1.45lbs |
| HTS4200-250X25 | 2-1/2" | 9.00" | 25ft | 1.60 lbs |
| HTS4200-275X25 | 2-3/4" | 10.00" | 25ft | 1.80 lbs |
| HTS4200-300X25 | 3" | 11.00" | 25ft | 2.00 lbs |
| HTS4200-325X25 | 3-1/4" | 12.00" | 25ft | 2.10 lbs |
| HTS4200-350X25 | 3-1/2" | 12.50" | 25ft | 2.30lbs |
| HTS4200-400X25 | 4" | 14.50" | 25ft | 2.60lbs |
| HTS4200-450X25 | 4-1/2" | 16.00" | 25ft | 2.90lbs |
| HTS4200-500X25 | 5" | 17.00" | 25ft | 3.00lbs |
| HTS4200-525X25 | 5-1/4" | 18.00" | 25ft | 3.15lbs |
| HTS4200-550X25 | 5-1/2" | 19.50" | 25ft | 3.30lbs |
| HTS4200-600X25 | 6" | 22.00" | 25ft | 3.60lbs |
| HTS4200-600X50 | 6" | 22.00" | 50ft | 3.60lbs |
| HTS4200-625X25 | 6-1/4" | 23.00" | 25ft | 3.75lbs |
| HTS4200-650X25 | 6-1/2" | 23.50" | 25ft | 3.90lbs |
| HTS4200-700X25 | 7" | 25.00" | 25ft | 4.20lbs |
| HTS4200-725X25 | 7-1/4" | 26.00" | 25ft | 4.30lbs |
| HTS4200-750X25 | 7-1/2" | 26.50" | 25ft | 4.40lbs |
| HTS4200-800X25 | 8" | 28.00" | 25ft | 4.70lbs |
| HTS4200-900X25 | 9" | 30.50" | 25ft | 5.30lbs |
| HTS4200-950X25 | 9-1/2" | 31.50" | 25ft | 5.60lbs |
| HTS4200-1000X25 | 10" | 32.50" | 25ft | 5.90lbs |
| HTS4200-1100X25 | 11" | 35.50" | 25ft | 6.50lbs |
| HTS4200-1120X25 | 11-1/4" | 36.00" | 25ft | 6.60lbs |
| HTS4200-1150X25 | 11-1/2" | 37.00" | 25ft | 6.75lbs |
| HTS4200-1200X25 | 12" | 38.00" | 25ft | 7.00lbs |
| HTS4200-1400X25 | 14" | 53.00" | 25ft | 8.10lbs |
| HTS4200-1600X25 | 16" | 60.50" | 25ft | 9.20lbs |
Note : If utilizing packing material, service temperatures may vary. Note: Standard coil length is 25 ft., WHEN FULLY EXTENDED; other lengths available on request.
