HTS4200-1000X25 Hose Tec® by Kuriyama | HTS4200 Series | Rough Bore Interlocked Metal Hose | Medium Weight | 10" ID | 304 Stainless Steel | 25ft Length
If you are interested in this item please fill out the Contact Form below.
Contact Us
How can we help you?
Price, availability, and details—available upon request.

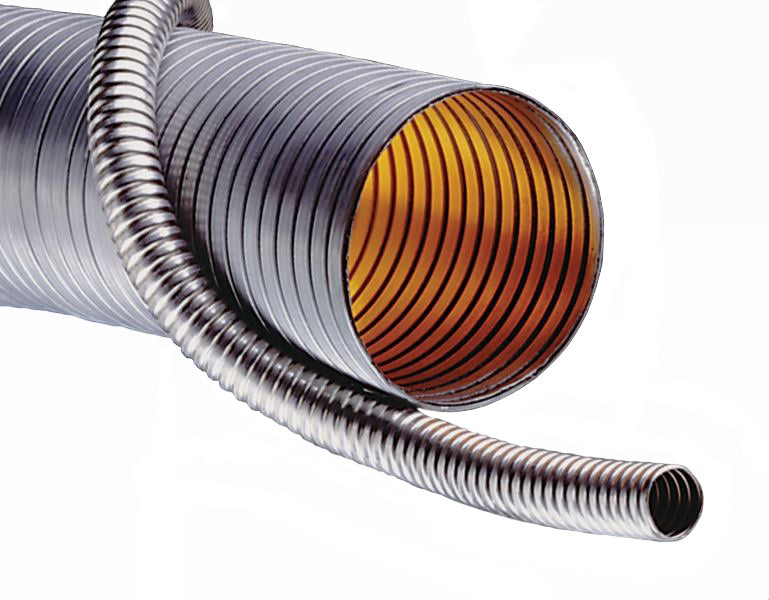

Interlocked Metal Hose
Kuriyama HTG4200 & HTS4200 Series
Interlocked metal hose wound from a single strip of galvanized (HTG4200) or 304 stainless steel (HTS4200), built for high-temperature transfer, abrasive materials, and full-vacuum service.
Conductive
Prevents static build-up and "hose arcing"
Heat Resistant
To +750°F galvanized, +1,500°F stainless
Full Vacuum
Rated for full vacuum service
Abrasion Resistant
Steel construction stands up to damaging materials
1
What is this product used for?
- Abrasive material handling
- BOP (Blow out Protection) for hydraulic, cryogenic and other high pressure hoses
- Bulk truck and railcar unloading
- Dry bulk transfer
- Fly ash and soda handling
- Grain handling
- Protective armor/shielding for hoses
- Transfer of high temperature air, gasses and materials
- Truck tailpipe exhaust

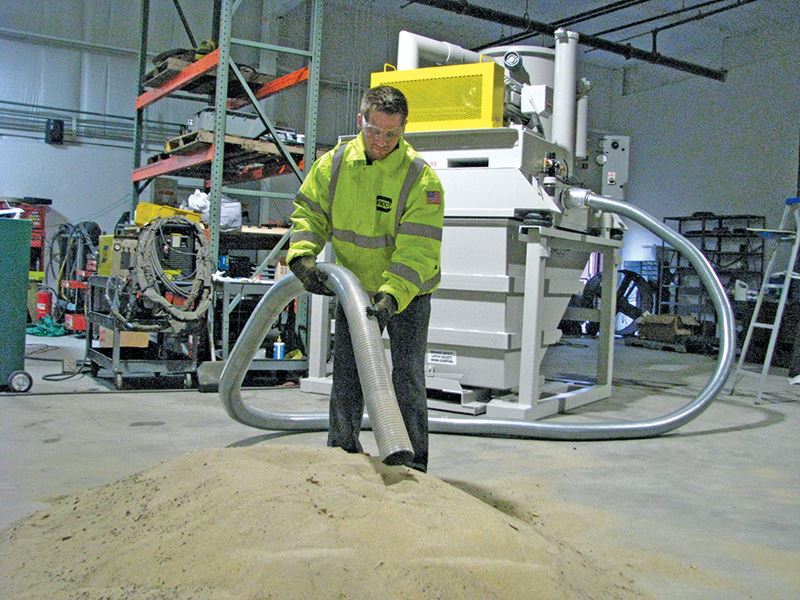

- Vacuum trucks and equipment
2
What are the key specifications?
Construction
Single strip of galvanized or 304 stainless steel wound into an interlocked metal hose, with or without packing materials
Service Temperature — Galvanized
To +750°F (+399°C)
Service Temperature — Stainless
To +1,500°F (+816°C)
Standard Length
25 ft
Size Range
1-1/2" to 16" ID
3
What are the main product features?
- Conductive — Prevents the build-up of static electricity eliminating the risk of "hose arcing."
- Flexible — Corrugations allow for greater flexibility than lined metal hose.
- Abrasion Resistant and Durable — Steel construction resists damage from abrasive and damaging materials.
- Corrosion Resistant (Stainless Only) — 304 stainless version resists corrosion making it resistant to the elements.
- Heat Resistant — Can withstand very high temperatures allowing for the transfer of hot materials.
- Full Vacuum — Suitable for full vacuum applications.
4
Which sizes are available?
| Galvanized Steel Part Number (25 ft Length) |
304 Stainless Steel Part Number (25 ft Length) |
ID (in) |
Wall Thickness (in) |
Min. Inside Bend Radius (in) |
Weight (lbs/ft) |
|---|---|---|---|---|---|
| HTG4200-150X25 | HTS4200-150X25 | 1-1/2" | 0.0185" | 6.00" | 1.00 |
| HTG4200-175X25 | — | 1-3/4" | 0.0185" | 7.00" | 1.10 |
| HTG4200-200X25 | HTS4200-200X25 | 2" | 0.0185" | 8.00" | 1.30 |
| HTG4200-225X25 | HTS4200-225X25 | 2-1/4" | 0.0185" | 8.50" | 1.45 |
| HTG4200-250X25 | HTS4200-250X25 | 2-1/2" | 0.0185" | 9.00" | 1.60 |
| HTG4200-275X25 | HTS4200-275X25 | 2-3/4" | 0.0185" | 10.00" | 1.80 |
| HTG4200-300X25 | HTS4200-300X25 | 3" | 0.0185" | 11.00" | 2.00 |
| HTG4200-350X25 | HTS4200-350X25 | 3-1/2" | 0.0185" | 12.50" | 2.30 |
| HTG4200-400X25 | HTS4200-400X25 | 4" | 0.0185" | 14.50" | 2.60 |
| HTG4200-450X25 | HTS4200-450X25 | 4-1/2" | 0.0185" | 16.00" | 2.90 |
| HTG4200-500X25 | HTS4200-500X25 | 5" | 0.0185" | 17.00" | 3.00 |
| HTG4200-600X25 | HTS4200-600X25 | 6" | 0.0185" | 22.00" | 3.60 |
| HTG4200-650X25 | — | 6-1/2" | 0.0185" | 23.50" | 3.90 |
| HTG4200-700X25 | HTS4200-700X25 | 7" | 0.0185" | 25.00" | 4.20 |
| — | HTS4200-750X25 | 7-1/2" | 0.0185" | 26.50" | 4.40 |
| HTG4200-800X25 | HTS4200-800X25 | 8" | 0.0185" | 28.00" | 4.70 |
| HTG4200-900X25 | HTS4200-900X25 | 9" | 0.0185" | 30.50" | 5.30 |
| HTG4200-1000X25 | HTS4200-1000X25 | 10" | 0.0185" | 32.50" | 5.90 |
| — | HTS4200-1200X25 | 12" | 0.0185" | 38.00" | 7.00 |
| HTG4200-1400X25 | HTS4200-1400X25 | 14" | 0.0185" | 53.00" | 8.10 |
| — | HTS4200-1600X25 | 16" | 0.0185" | 60.50" | 9.20 |
Galvanized (HTG4200) and 304 stainless (HTS4200) versions are not available in every size — see the chart above for availability by ID.
How is this product sold?
Sold in standard 25 ft lengths.
