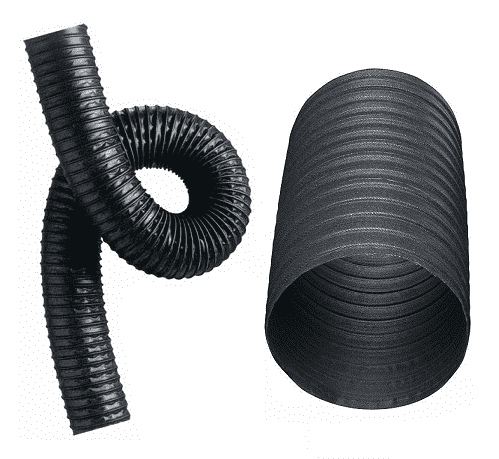

HTNP2-1600X25 by Kuriyama | Series HTNP | Neo-Duct Ducting Hose | Black | ID: 16" | 15 PSI | Neoprene Coated | 25ft Length
Kuriyama

HTNP2-1600X25 by Kuriyama | Series HTNP | Neo-Duct Ducting Hose | Black | ID: 16" | 15 PSI | Neoprene Coated | 25ft Length

Contact for Price

If you are interested in this item please fill out the Contact Form below.

Contact Us

How can we help you?

Price, availability, and details—available upon request.

SPECIFICATIONS

Application: Dust collection, Air movement, Fume control, Light Material Handling SAE Rating: N/A
Other Ratings: UL94V-O Tube: Neoprene-coated two-ply polyester
Reinforcement: N/A Cover: N/A
Temperature Range: -65 deg. F (-54 deg. C) to 250 deg. F (+127 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications N/A
Other Features:
  • Double-ply construction - works extremely well in both positive and negative pressure applications, offers extreme flexibility and compressibility, combined with excellent crush-resistance and tensile strength. Recommended for all air handling applications, dust and fume control and light material handling.
  • Neoprene coating with polyester fabric construction - provides excellent flexibility, will not rot
  • Manufactured to meet UL94V-O rating
  • Standard packaging: 25' lengths in cartons
Part Number Nominal ID Min. Bend. Radius Max Working* Pressure Length Weight
(in.) (mm) (in.) (mm) PSI (lbs/ft)
HTNP2-150X25 1-1/2" 38.1mm 2.6" 66.0mm 32 PSI 25ft .16 lbs
HTNP2-200X018 2" 50.8mm 3.5" 88.9mm 30 PSI 18ft .16 lbs
HTNP2-200X055 2" 50.8mm 3.5" 88.9mm 30 PSI 55ft .16 lbs
HTNP2-200X25 2" 50.8mm 3.5" 88.9mm 30 PSI 25ft .16 lbs
HTNP2-250X25 2-1/2" 63.5mm 4.0" 101.6mm 28 PSI 25ft .28 lbs
HTNP2-300X25 3" 76.2mm 5.0" 127.0mm 25 PSI 25ft .33 lbs
HTNP2-350X25 3-1/2" 88.9mm 5.7" 144.8mm 24 PSI 25ft .42 lbs
HTNP2-400X25 4" 101.6mm 6.5" 165.1mm 23 PSI 25ft .48 lbs
HTNP2-500X25 5" 127.0mm 7.5" 190.5mm 22 PSI 25ft .61 lbs
HTNP2-600X25 6" 152.4mm 9.0" 228.6mm 21 PSI 25ft .70 lbs
HTNP2-700X25 7" 177.8mm 9.5" 241.3mm 20 PSI 25ft .92 lbs
HTNP2-800X25 8" 203.2mm 10.0" 254.0mm 19 PSI 25ft 1.04 lbs
HTNP2-250X25 10" 254mm 11.0" 279.4mm 18 PSI 25ft 1.36 lbs
HTNP2-1200X25 12" 304.8mm 13.5" 342.9mm 17 PSI 25ft 1.85 lbs
HTNP2-1400X25 14" 355.6mm 15.5" 393.7mm 16 PSI 25ft 2.10 lbs
HTNP2-1600X25 16" 406.4mm 18.5" 469.9mm 15 PSI 25ft 2.40 lbs
HTNP2-1800X25 18" 457.2mm 22.0" 558.8mm 6 PSI 25ft 2.70 lbs
HTNP2-2000X25 20" 508.0mm 24.0" 609.6mm 4 PSI 25ft 3.00 lbs
* Minimum burst pressure 4:1 safety factor for ID sizes 1" to 2" and 3:1 for ID sizes 2 1/2" to 3".
