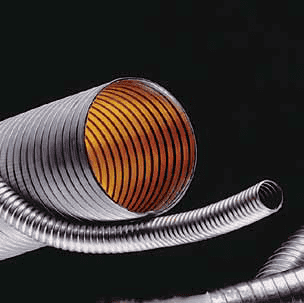

HTG4200-700X25 Hose-Tec by Kuriyama | HT4000 Series | Rough Bore (Unlined) "Multi-Flex" Interlocked Metal Hose | Medium Weight | ID: 7" | Galvanized Steel | 25ft Length
If you are interested in this item please fill out the Contact Form below.
Contact Us
How can we help you?
Price, availability, and details—available upon request.
SPECIFICATIONS
| Application: | Abrasive Material Handling, Air Intake Supply; Fresh Air Intake Bend Restrictor, Bop (Blow Out Protection) for Hydraulic, Cryogenic and Other High Pressure Hoses, Bulk Unloading/Loading (Railcar/Truck), Dry Bulk Transfer (Railcar/Truck/In-Plant), Dust/Fume Collection, Engine Exhaust, Environmental/Industrial Clean-Up, Fly Ash/Soda Ash Handling, Fume Hood Exhaust, Garage Fume Exhaust, Grain Handling, High Temperature Material Handling, Hot Air Blower/Suction, Hot Air Ducting, Industrial Dryer Vents, Liner for Corrugated/Braided Assemblies, Low Temperature Material Transfer, Oven/Kiln Exhaust, Plastic Pellet Transfer, Pneumatic Transfer, Protective Armor/Shielding for Hoses, Railcar - Bulk Unloading/Loading, Shielding for Wiring, Spot Cooling/Air Conditioning Ducting, Steam Hose Liner, Truck - Bulk Unloading/Loading, Truck Exhaust/Flexible Tailpipe Exhaust, Vacuum Trucks and Equipment | SAE Rating: | N/A |
|---|---|---|---|
| Other Ratings: | N/A | Tube: | Galvanized steel |
| Reinforcement: | N/A | Cover: | N/A |
| Temperature Range: | Max. Service Temp: Up to 750 deg. F | Crimp Fittings: | N/A |
| Reusable Fittings: | N/A | Specifications | N/A |
| Other Features: | |||
|
|||
| Part Number | Hose Size ID (in.) | Min Inside Bend Radius (in.) | Length (ft.) | Weight (per foot) |
|---|---|---|---|---|
| HTG4200-150X25 | 1-1/2" | 6.00" | 25ft | 1.00 lbs |
| HTG4200-175X25 | 1-3/4" | 7.00" | 25ft | 1.10 lbs |
| HTG4200-200X25 | 2" | 8.00" | 25ft | 1.30lbs |
| HTG4200-225X25 | 2-1/4" | 8.50" | 25ft | 1.45lbs |
| HTG4200-250X25 | 2-1/2" | 9.00" | 25ft | 1.60 lbs |
| HTG4200-275X25 | 2-3/4" | 10.00" | 25ft | 1.80 lbs |
| HTG4200-300X25 | 3" | 11.00" | 25ft | 2.00 lbs |
| HTG4200-350X25 | 3-1/2" | 12.50" | 25ft | 2.30lbs |
| HTG4200-400X25 | 4" | 14.50" | 25ft | 2.60lbs |
| HTG4200-450X25 | 4-1/2" | 16.00" | 25ft | 2.90lbs |
| HTG4200-500X25 | 5" | 17.00" | 25ft | 3.00lbs |
| HTG4200-600X25 | 6" | 22.00" | 25ft | 3.60lbs |
| HTG4200-650X25 | 6-1/2" | 23.50" | 25ft | 3.90lbs |
| HTG4200-700X25 | 7" | 25.00" | 25ft | 4.20lbs |
| HTG4200-800X25 | 8" | 28.00" | 25ft | 4.70lbs |
| HTG4200-900X25 | 9" | 30.50" | 25ft | 5.30lbs |
| HTG4200-1000X25 | 10" | 32.50" | 25ft | 5.90lbs |
| HTG4200-1400X25 | 14" | 53.00" | 25ft | 8.10lbs |
