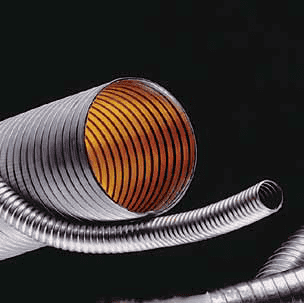

HTG4150-700X25 Hose-Tec by Kuriyama | HT4000 Series | Rough Bore (Unlined) "Multi-Flex" Interlocked Metal Hose | Light Medium Weight | ID: 7" | Galvanized Steel | 25ft Length
If you are interested in this item please fill out the Contact Form below.
Contact Us
How can we help you?
Price, availability, and details—available upon request.
SPECIFICATIONS
| Application: | Abrasive Material Handling, Air Intake Supply; Fresh Air Intake, Bend Restrictor, Bop (Blow Out Protection) for Hydraulic, Cryogenic and Other High Pressure Hoses, Bulk Unloading/Loading (Railcar/Truck), Dry Bulk Transfer (Railcar/Truck/In-Plant), Dust/Fume Collection, Engine Exhaust, Environmental/Industrial Clean-Up, Fly Ash/Soda Ash Handling, Fume Hood Exhaust, Garage Fume Exhaust,Grain Handling, High Temperature Material Handling, Hot Air Blower/Suction, Hot Air Ducting, Industrial Dryer Vents, Liner for Corrugated/Braided Assemblies, Low Temperature Material Transfer, Oven/Kiln Exhaust, Plastic Pellet Transfer, Pneumatic Transfer, Protective Armor/Shielding for Hoses, Railcar - Bulk Unloading/Loading, Shielding for Wiring, Spot Cooling/Air Conditioning Ducting, Steam Hose Liner, Truck - Bulk Unloading/Loading, Truck Exhaust/Flexible Tailpipe Exhaust, Vacuum Trucks and Equipment | SAE Rating: | N/A |
|---|---|---|---|
| Other Ratings: | N/A | Tube: | Galvanized steel |
| Reinforcement: | N/A | Cover: | N/A |
| Temperature Range: | Max. Service Temp: Up to 750 deg. F | Crimp Fittings: | N/A |
| Reusable Fittings: | N/A | Specifications | N/A |
| Other Features: | |||
|
|||
| Part Number | Hose Size ID (in.) | Min Inside Bend Radius (in.) | Length (ft.) | Weight (per foot) |
|---|---|---|---|---|
| HTG4150-137X25 | 1-3/8" | 5.00" | 25ft | 0.60 lbs |
| HTG4150-150X25 | 1-1/2" | 5.50" | 25ft | 0.70 lbs |
| HTG4150-162X25 | 1-5/8" | 5.75" | 25ft | 0.75 lbs |
| HTG4150-175X25 | 1-3/4" | 6.00" | 25ft | 0.80 lbs |
| HTG4150-187X25 | 1-7/8" | 6.25" | 25ft | 0.85 lbs |
| HTG4150-200X25 | 2" | 6.50" | 25ft | 0.90lbs |
| HTG4150-225X25 | 2-1/4" | 7.25" | 25ft | 1.10lbs |
| HTG4150-250X25 | 2-1/2" | 8.00" | 25ft | 1.20 lbs |
| HTG4150-275X25 | 2-3/4" | 8.25" | 25ft | 1.30 lbs |
| HTG4150-300X25 | 3" | 10.50" | 25ft | 1.40 lbs |
| HTG4150-325X25 | 3-1/4" | 11.25" | 25ft | 1.50 lbs |
| HTG4150-350X25 | 3-1/2" | 12.00" | 25ft | 1.60lbs |
| HTG4150-400X25 | 4" | 13.50" | 25ft | 1.80lbs |
| HTG4150-450X25 | 4-1/2" | 15.00" | 25ft | 2.00lbs |
| HTG4150-500X25 | 5" | 16.00" | 25ft | 2.30lbs |
| HTG4150-525X25 | 5-1/4" | 17.25" | 25ft | 2.40lbs |
| HTG4150-550X25 | 5-1/2" | 18.50" | 25ft | 2.50lbs |
| HTG4150-600X25 | 6" | 21.00" | 25ft | 2.70lbs |
| HTG4150-625X25 | 6-1/4" | 21.50" | 25ft | 2.80lbs |
| HTG4150-650X25 | 6-1/2" | 22.00" | 25ft | 2.95lbs |
| HTG4150-700X25 | 7" | 23.00" | 25ft | 3.20lbs |
| HTG4150-725X25 | 7-1/4" | 23.75" | 25ft | 3.30lbs |
| HTG4150-750X25 | 7-1/2" | 24.50" | 25ft | 3.40lbs |
| HTG4150-800X25 | 8" | 26.00" | 25ft | 3.60lbs |
| HTG4150-900X25 | 9" | 28.25" | 25ft | 4.05lbs |
| HTG4150-950X25 | 9-1/2" | 29.50" | 25ft | 4.25lbs |
| HTG4150-1000X25 | 10" | 30.50" | 25ft | 4.50lbs |
| HTG4150-1100X25 | 11" | 33.00" | 25ft | 5.00lbs |
| HTG4150-1120X25 | 11-1/4" | 33.75" | 25ft | 5.10lbs |
| HTG4150-1150X25 | 11-1/2" | 34.50" | 25ft | 5.20lbs |
| HTG4150-1200X25 | 12" | 36.00" | 25ft | 5.40lbs |
| HTG4150-1400X25 | 14" | 50.00" | 25ft | 6.30lbs |
