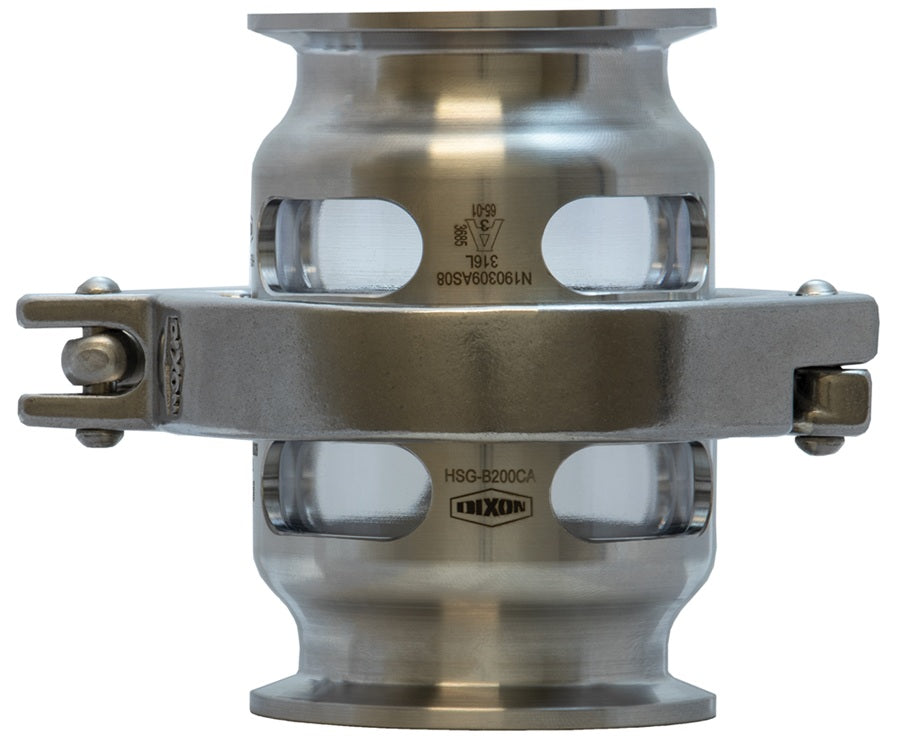

HSGE300CCA Dixon Valve HSG Sight Glass - 3" Single Pin Clamp Style - EPDM Gasket - 316L Stainless Steel

HSGE300CCA Dixon Valve HSG Sight Glass - 3" Single Pin Clamp Style - EPDM Gasket - 316L Stainless Steel

Sale price$363.25
Buy more, save moreDiscounts applied in cart/checkout.
Features:
  • Easy assembly and disassembly
  • Clamp connection standard
  • Higher pressure range than other sight glasses
  • Rubber seals are I-line gasket
  • Clamp protects glass from getting damaged
  • Patent pending assembly design
Construction:
  • Body: 316L stainless steel
  • Sight glass: Polycarbonate
  • Gaskets: EPDM (EPDM supplied with single pin clamp)
  • 3A Certified for CIP
Part Number Tube OD Max. Operating Pressure
HSGE100CCA 1" 500 PSI @ 70°F
300 PSI @ 200°F
HSGE150CCA 1-1/2" 450 PSI @ 70°F
250 PSI @ 200°F
HSGE200CCA 2" 400 PSI @ 70°F
200 PSI @ 200°F
HSGE250CCA 2-1/2" 350 PSI @ 70°F
175 PSI @ 200°F
HSGE300CCA 3" 250 PSI @ 70°F
125 PSI @ 200°F
HSGE400CCA 4" 80 PSI @ 70°F
40 PSI @ 200°F
HSGE600CCA 6" 50 PSI @ 70°F
25 PSI @ 200°F

Additional Product Data:

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
