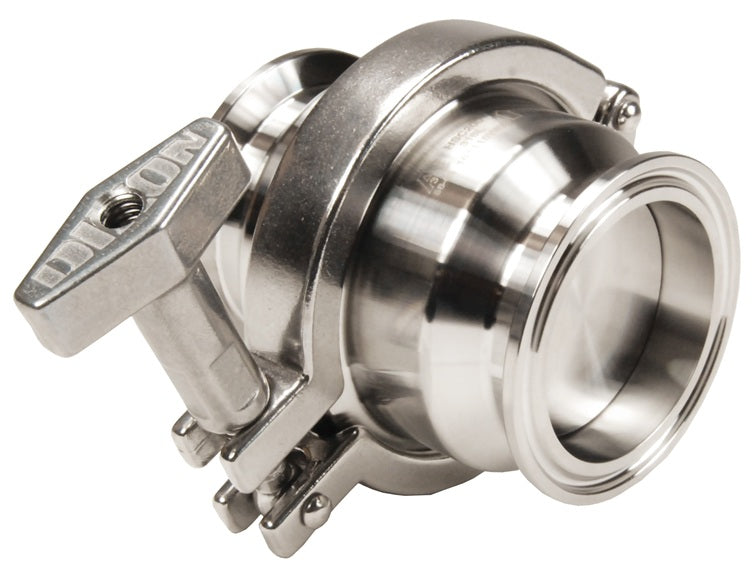

HSCV050 Dixon Valve HSC Spring Check Valve - 1/2" Clamp Connection - FKM Gasket - 316L Stainless Steel

HSCV050 Dixon Valve HSC Spring Check Valve - 1/2" Clamp Connection - FKM Gasket - 316L Stainless Steel

Sale price$211.00
Buy more, save moreDiscounts applied in cart/checkout.
Features:
  • Machined from solid bar
  • Standard O-ring (FKM) and gasket seal design
  • Can be serviced in field (no special tools required)
  • Finish: sanitary polish 32 Ra
  • Temperature Range: 15° F to 200° F
Part Number Size Cracking Pressure Max. Operating Pressure
HSCV050 1/2" 10.0 PSI 145 PSI
HSCV075 3/4" 4.0 PSI 145 PSI
HSCV100 1" 2.5 PSI 145 PSI
HSCV150 1-1/2" 1.0 PSI 145 PSI
HSCV200 2" 1.5 PSI 145 PSI
HSCV250* 2-1/2" 0.8 PSI 145 PSI
HSCV300* 3" 0.5 PSI 145 PSI
HSCV400* 4" 0.4 PSI 145 PSI

* CF8M (plunger)

Additional Product Data:

Shape:

Straight

Ends Configuration:
  • 1/2in Sanitary Clamp End
  • 1/2in Sanitary Clamp End
  • Some Ends Match
Material(s):
  • 316L Stainless Steel

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
