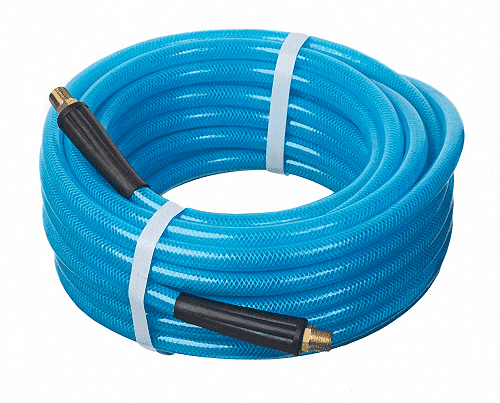

HS5090-06X100 Kuri-Tec by Kuriyama | PNEU-THANE HS5090 Series | Lightweight Reinforced Polyurethane Pneumatic Air Tool Hose Assembly | Aqua | 3/8" ID | .560" OD | 100ft Length

HS5090-06X100 Kuri-Tec by Kuriyama | PNEU-THANE HS5090 Series | Lightweight Reinforced Polyurethane Pneumatic Air Tool Hose Assembly | Aqua | 3/8" ID | .560" OD | 100ft Length

Sale price$215.29

Kuriyama Kuri Tec PNEU-THANE® PNEU-THANE HS5090 Series Lightweight Reinforced Polyurethane Pneumatic Air Tool Hose Assembly - Aqua

Buy More, Save More!
Quantity Price Each
5–19 $202.37
20–59 $183.00
60+ $161.47
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Kuri Tec
  • PNEU-THANE
Series:
  • HS5090 Series
Color(s):
  • Aqua

SPECIFICATIONS

Application: Pneumatic Air Tool SAE Rating: N/A
Other Ratings: N/A Tube: Polyurethane
Reinforcement: N/A Cover: N/A
Temperature Range: -40 deg. F (-40 deg. C) to +185 deg. F (+85 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications N/A
Other Features:
  • With Rubber Bend Restrictors
  • Hose assemblies are furnished with the following fittings: 1/4" ID - 1/4" X 1/4"M NPT, 3/8" ID - 3/8" X 1/4"M NPT.
Part Number Nominal ID Nominal OD Working Pressure Assembled Lengths Approx Weight per Pkg
(in.) (mm) (in.) (mm) @ 70 deg. F (20 deg. C) (PSI) @ 122 deg. F (50 deg. C) (PSI)
HS5090-04X100 1/4" 6.5mm .395" 10.0mm 250 PSI 200 PSI 100 ft. 4 lbs.
HS5090-04X25 1/4" 6.5mm .395" 10.0mm 250 PSI 200 PSI 25 ft. 1 lbs.
HS5090-04X50 1/4" 6.5mm .395" 10.0mm 250 PSI 200 PSI 50 ft. 2 lbs.
HS5090-06X100 3/8" 9.5mm .560" 14.2mm 250 PSI 200 PSI 100 ft. 6 lbs.
HS5090-06X25 3/8" 9.5mm .560" 14.2mm 250 PSI 200 PSI 25 ft. 1.5 lbs.
HS5090-06X50 3/8" 9.5mm .560" 14.2mm 250 PSI 200 PSI 50 ft. 3 lbs.

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
