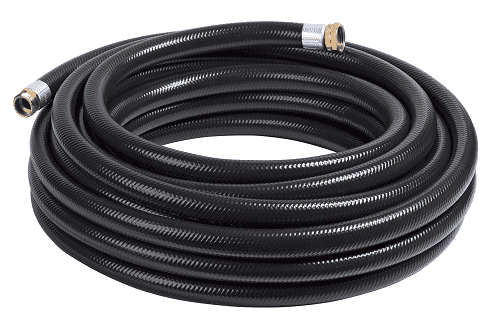

HS2163HDW-12X50 Kuri-Tec by Kuriyama | HS2163HDW Series | Black Contractors Water Hose Assembly | Black | 3/4" ID | 1.030" OD | PVC | 50ft Length

HS2163HDW-12X50 Kuri-Tec by Kuriyama | HS2163HDW Series | Black Contractors Water Hose Assembly | Black | 3/4" ID | 1.030" OD | PVC | 50ft Length

Sale price$97.23

Kuriyama Kuri Tec® HS2163HDW Series Black Contractors PVC Water Hose Assemblies
Buy More, Save More!
Quantity Price Each
5–19 $91.40
20–59 $82.65
60+ $72.92
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Kuri Tec
  • PNEU-THANE
Series:
  • HS2163HDW Series
Color(s):
  • Black

SPECIFICATIONS

Application: Water Hose, Contractors Hose SAE Rating: N/A
Other Ratings: N/A Tube: PVC
Reinforcement: N/A Cover: N/A
Temperature Range: +25 deg. F (-4 deg. C) to +150 deg. F (+65 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications N/A
Other Features:
  • Hose assemblies are furnished with heavy-duty Brass GHT, 3/4" M x F fittings.
Part Number Nominal ID Nominal OD Working Pressure Assembled Lengths Approx Weight per Pkg
(in.) (mm) (in.) (mm) @ 70 deg. F (20 deg. C) (PSI) @ 122 deg. F (50 deg. C) (PSI) (ft.)
HS2163HDW-12X50 3/4" 19.1mm 1.030" 26.2mm 150 PSI 75 PSI 50 ft. 12 lbs.
Note: Working Pressure decreases as temperature increases. Pressure ratings can only be obtained with proper coupling procedures.

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
