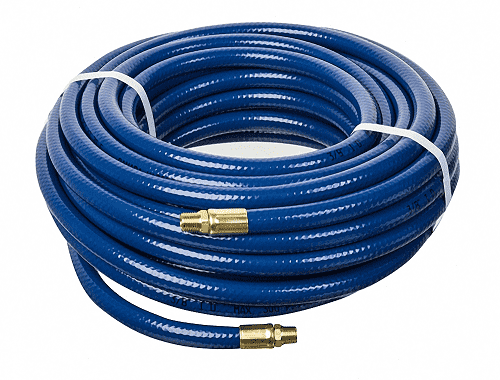

HS1186-04X25 Kuri-Tec by Kuriyama | HS1186 Series | Utility-Grade Air Tool Hose Assembly | Blue | 1/4" ID | .475" OD | PVC | 25ft Length

HS1186-04X25 Kuri-Tec by Kuriyama | HS1186 Series | Utility-Grade Air Tool Hose Assembly | Blue | 1/4" ID | .475" OD | PVC | 25ft Length

Sale price$25.26

Kuriyama Kuri Tec® HS1184 Series Utility-Grade PVC Air Tool Hose Assemblies - Red

Buy More, Save More!
Quantity Price Each
10–39 $23.74
40–79 $21.47
80+ $18.95
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Kuri Tec
Series:
  • HS1186 Series
Color(s):
  • Blue

SPECIFICATIONS

Application: Air Tools SAE Rating: N/A
Other Ratings: N/A Tube: PVC
Reinforcement: N/A Cover: N/A
Temperature Range: +14 deg. F (-10 deg. C) to +150 deg. F (+65 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications N/A
Other Features:
  • Note: Hose Assembly are furnished with the following fittings:
    • 1/4" ID - 1/4" X 1/4"M NPT
    • 3/8" ID - 3/8" X 1/4"M NPT
Part Number Nominal ID Nominal OD Working Pressure Assembled Lengths Approx Weight per Pkg
(in.) (mm) (in.) (mm) @ 70 deg. F (20 deg. C) (PSI)
HS1186-04X100 1/4" 6.5mm .475" 12.1mm 300 PSI 100 ft. 7.4 lbs.
HS1186-04X25 1/4" 6.5mm .475" 12.1mm 300 PSI 25 ft. 1.9 lbs.
HS1186-04X50 1/4" 6.5mm .475" 12.1mm 300 PSI 50 ft. 3.7 lbs.
HS1186-06X100 3/8" 9.5mm .600" 15.2mm 300 PSI 100 ft. 10.2 lbs.
HS1186-06X25 3/8" 9.5mm .600" 15.2mm 300 PSI 25 ft. 2.6 lbs.
HS1186-06X50 3/8" 9.5mm .600" 15.2mm 300 PSI 50 ft. 5.1 lbs.
Note: Working Pressure decreases as temperature increases. Pressure ratings can only be obtained with proper coupling procedures.

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
