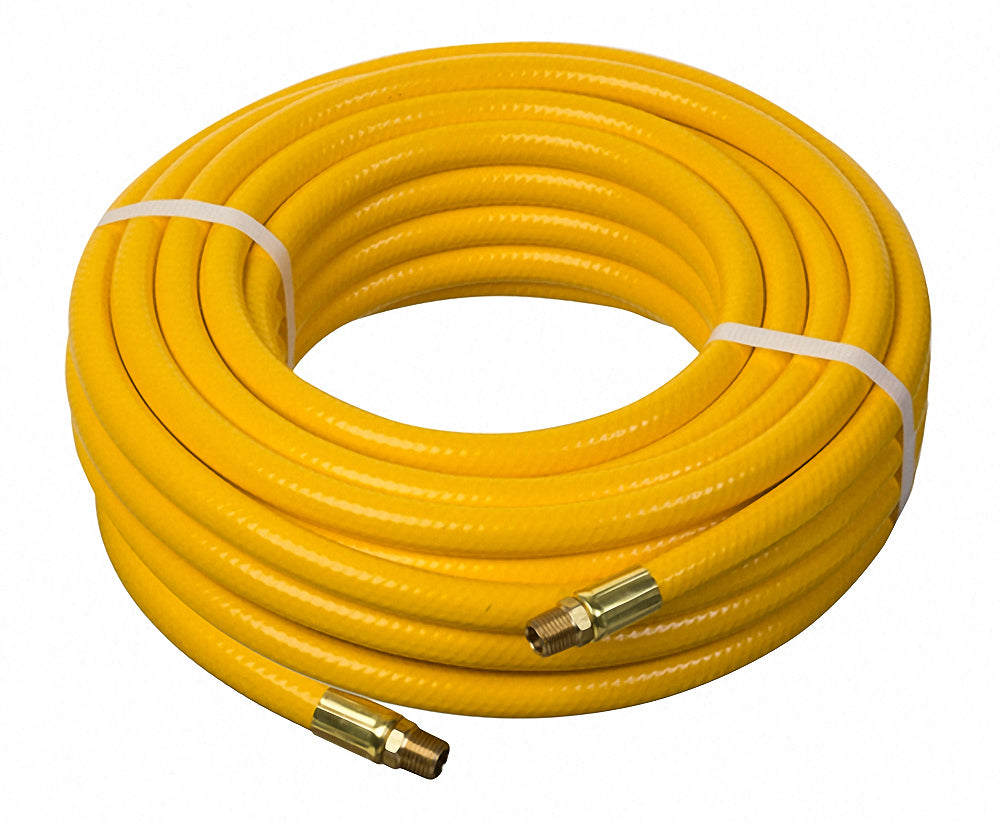

HS1181-04X50 Kuri-Tec by Kuriyama | HS1181 Series | Utility-Grade PVC Air Tool Hose Assembly | 1/4" ID | 1/4" x 1/4" Male NPT | Yellow | 50ft Length

HS1181-04X50 Kuri-Tec by Kuriyama | HS1181 Series | Utility-Grade PVC Air Tool Hose Assembly | 1/4" ID | 1/4" x 1/4" Male NPT | Yellow | 50ft Length

Sale price$33.13

Kuri Tec® by Kuriyama
HS1181 Series | Utility-Grade PVC Air Tool Hose Assembly
Buy More, Save More!
Quantity Price Each
10–39 $31.14
40–79 $28.16
80+ $24.85
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Kuri Tec
Series:
  • HS1181 Series
Color(s):
  • Yellow

SPECIFICATIONS

Applications: Air Tool Applications
Tube: PVC Reinforcement: -
Cover: PVC Service Temperature Range: +14°F (-10°C) to +150°F (+65°C)
Specifications: Phthalate Free
Other Features:
  • Hose assemblies are furnished with brass fittings.
  • Phthalate Free.
  • Note: Working Pressure decreases as temperature increases. Pressure ratings can only be obtained with proper coupling procedures.
    		•
    HS1181 Series | Yellow
    Part Number
    25ft    		 Part Number
    50ft    		 Part Number
    100ft    		 Nominal ID Nominal OD Max. Working
    Pressure    		 Fittings
    in mm in mm @70°F
    (20°C)
    HS1181-04X25 HS1181-04X50 HS1181-04X100 1/4" 6.5mm 0.475" 12.1mm 300 PSI 1/4" x 1/4" Male NPT
    HS1181-06X25 HS1181-06X50 HS1181-06X100 3/8" 9.5mm 0.600" 15.2mm 300 PSI 3/8" x 1/4" Male NPT
    HS1184 Series | Red
    Part Number
    25ft    		 Part Number
    50ft    		 Part Number
    100ft    		 Nominal ID Nominal OD Max. Working
    Pressure    		 Fittings
    in mm in mm @70°F
    (20°C)
    HS1184-04X25 HS1184-04X50 HS1184-04X100 1/4" 6.5mm 0.475" 12.1mm 300 PSI 1/4" x 1/4" Male NPT
    HS1184-06X25 HS1184-06X50 HS1184-06X100 3/8" 9.5mm 0.600" 15.2mm 300 PSI 3/8" x 1/4" Male NPT
    HS1186 Series | Blue
    Part Number
    25ft    		 Part Number
    50ft    		 Part Number
    100ft    		 Nominal ID Nominal OD Max. Working
    Pressure    		 Fittings
    in mm in mm @70°F
    (20°C)
    HS1186-04X25 HS1186-04X50 HS1186-04X100 1/4" 6.5mm 0.475" 12.1mm 300 PSI 1/4" x 1/4" Male NPT
    HS1186-06X25 HS1186-06X50 HS1186-06X100 3/8" 9.5mm 0.600" 15.2mm 300 PSI 3/8" x 1/4" Male NPT

    Kuriyama

    Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
