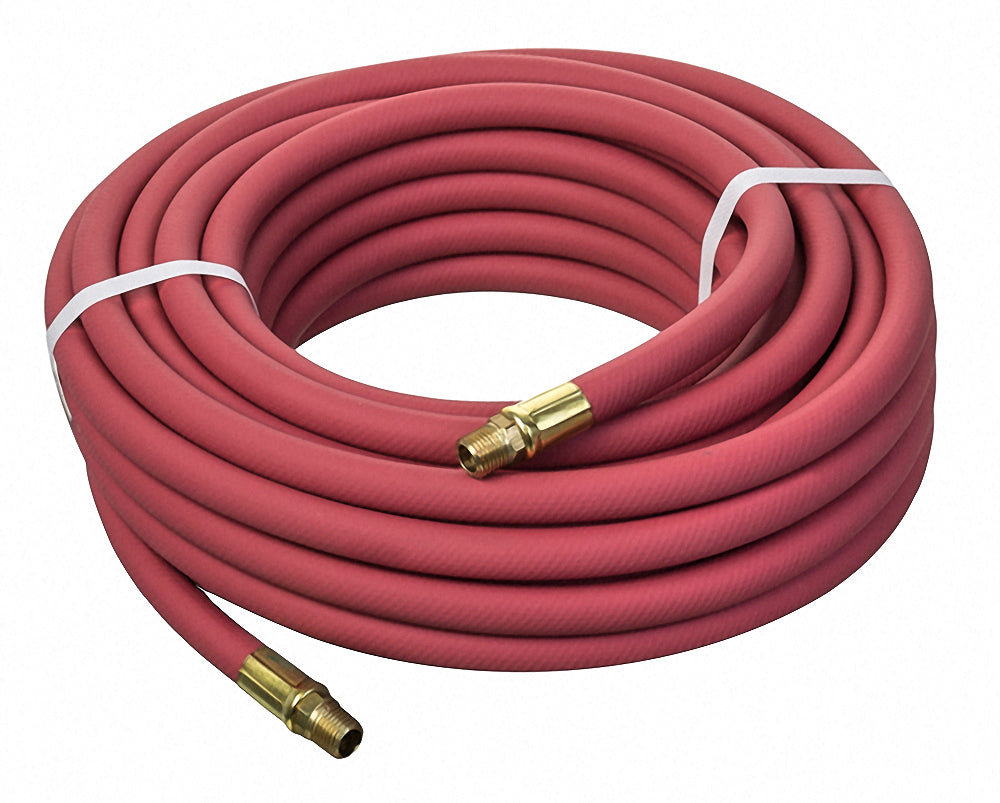

HS1174-06X25 Kuri-Tec by Kuriyama | HS1174 Series | General Service PVC Pneumatic Air Tool Hose Assembly | 3/8" ID | 3/8" x 1/4" Male NPT | Red | 25ft Length

HS1174-06X25 Kuri-Tec by Kuriyama | HS1174 Series | General Service PVC Pneumatic Air Tool Hose Assembly | 3/8" ID | 3/8" x 1/4" Male NPT | Red | 25ft Length

Sale price$32.30

Kuri Tec® by Kuriyama
HS1174 Series | General Service PVC Pneumatic Air Tool Hose Assembly
Buy More, Save More!
Quantity Price Each
10–39 $30.36
40–79 $27.46
80+ $24.23
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Kuri Tec
Series:
  • HS1174 Series
Color(s):
  • Red

SPECIFICATIONS

Applications: Pneumatic Air Tool Applications
Tube: PVC Reinforcement: -
Cover: PVC Service Temperature Range: -15°F (-26°C) to +150°F (+65°C)
Specifications: Phthalate Free
Other Features:
  • Hose assemblies are furnished with brass fittings.
  • Phthalate Free.
  • Note: Working Pressure decreases as temperature increases. Pressure ratings can only be obtained with proper coupling.
    		•
    HS1171 Series | Yellow
    Part Number
    25ft    		 Part Number
    50ft    		 Part Number
    100ft    		 Nominal ID Nominal OD Max. Working
    Pressure    		 Fittings
    in mm in mm @70°F
    (20°C)    		 @122°F
    (50°C)
    HS1171-04X25 HS1171-04X50 HS1171-04X100 1/4" 6.5mm 0.475" 12.1mm 300 PSI 150 PSI 1/4" x 1/4" Male NPT
    HS1171-06X25 HS1171-06X50 HS1171-06X100 3/8" 9.5mm 0.600" 15.2mm 300 PSI 150 PSI 3/8" x 1/4" Male NPT
    HS1171-08X25 HS1171-08X50 HS1171-08X100 1/2" 12.7mm 0.750" 19.1mm 300 PSI 150 PSI 1/2" x 3/8" Male NPT
    HS1174 Series | Red
    Part Number
    25ft    		 Part Number
    50ft    		 Part Number
    100ft    		 Nominal ID Nominal OD Max. Working
    Pressure    		 Fittings
    in mm in mm @70°F
    (20°C)    		 @122°F
    (50°C)
    HS1174-04X25 HS1174-04X50 HS1174-04X100 1/4" 6.5mm 0.475" 12.1mm 300 PSI 150 PSI 1/4" x 1/4" Male NPT
    HS1174-06X25 HS1174-06X50 HS1174-06X100 3/8" 9.5mm 0.600" 15.2mm 300 PSI 150 PSI 3/8" x 1/4" Male NPT
    HS1174-08X25 HS1174-08X50 HS1174-08X100 1/2" 12.7mm 0.750" 19.1mm 300 PSI 150 PSI 1/2" x 3/8" Male NPT
    HS1176 Series | Blue
    Part Number
    25ft    		 Part Number
    50ft    		 Part Number
    100ft    		 Nominal ID Nominal OD Max. Working
    Pressure    		 Fittings
    in mm in mm @70°F
    (20°C)    		 @122°F
    (50°C)
    HS1176-04X25 HS1176-04X50 HS1176-04X100 1/4" 6.5mm 0.475" 12.1mm 300 PSI 150 PSI 1/4" x 1/4" Male NPT
    HS1176-06X25 HS1176-06X50 HS1176-06X100 3/8" 9.5mm 0.600" 15.2mm 300 PSI 150 PSI 3/8" x 1/4" Male NPT
    HS1176-08X25 HS1176-08X50 HS1176-08X100 1/2" 12.7mm 0.750" 19.1mm 300 PSI 150 PSI 1/2" x 3/8" Male NPT

    Kuriyama

    Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
