HPOJ-6.0-100 by Texcel | SUPRA™ - HPOJ Series | High Pressure Oil & Jetting Hose | 6" Hose ID | 1,600 PSI | Black
Buy more, save moreDiscounts applied in cart/checkout.
Petroleum Hose

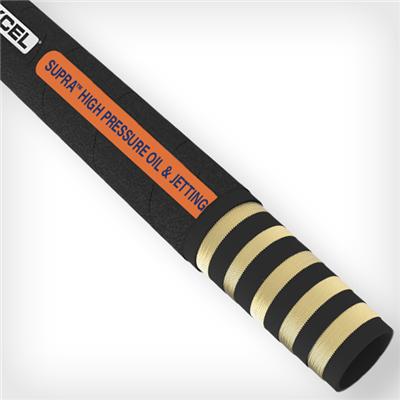

SUPRA™-HPOJ High Pressure Oil & Jetting Hose
High pressure oil and jetting hose built with multiple steel wire plies and an extremely abrasion- and weather-resistant CR cover.
1
What is this hose used for?
- High pressure oil transfer
- Jetting
2
What are the key specifications?
Tube
Black, NBR (50% aromatics, ORS)
Cover
Black, CR, extremely high abrasion and weather resistant
Reinforcement
Multiple steel wire plies
Operating Temperature
-20°F to +194°F; up to 212°F for oil use only
Working Pressure
1,600 psi (4,000 psi test)
Maximum Length
100 ft.
Couplings
Use GMCO™ 9000 Series couplings
Branding
SUPRA™ - HIGH PRESSURE OIL & JETTING HOSE
3
Which sizes are available?
| Part Number | Hose ID | Hose OD | Working Pressure (psi) | Test Pressure (psi) | Safety Factor | Bend Radius | Weight (lbs/ft) |
|---|---|---|---|---|---|---|---|
| HPOJ-4.0-100 | 4" | 5-5/64" | 1,600 | 4,000 | 2.5:1 | 20" | 6.6 |
| HPOJ-6.0-100 | 6" | 7-9/64" | 1,600 | 4,000 | 2.5:1 | 29" | 10.9 |
Additional Product Data:
Series:
Color(s):
Internal Diameter:
Outer Diameter:
Tubing Construction:
Cover Construction:
