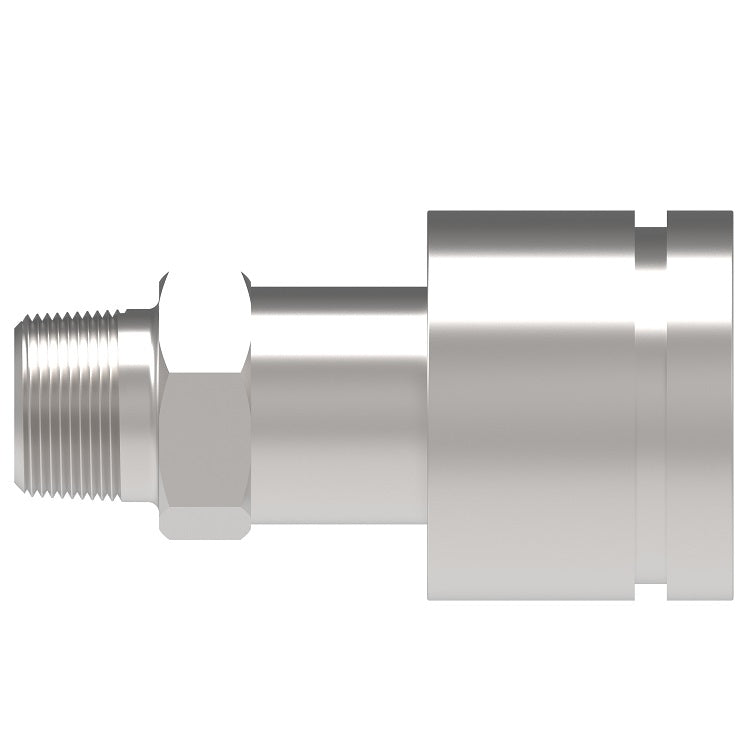

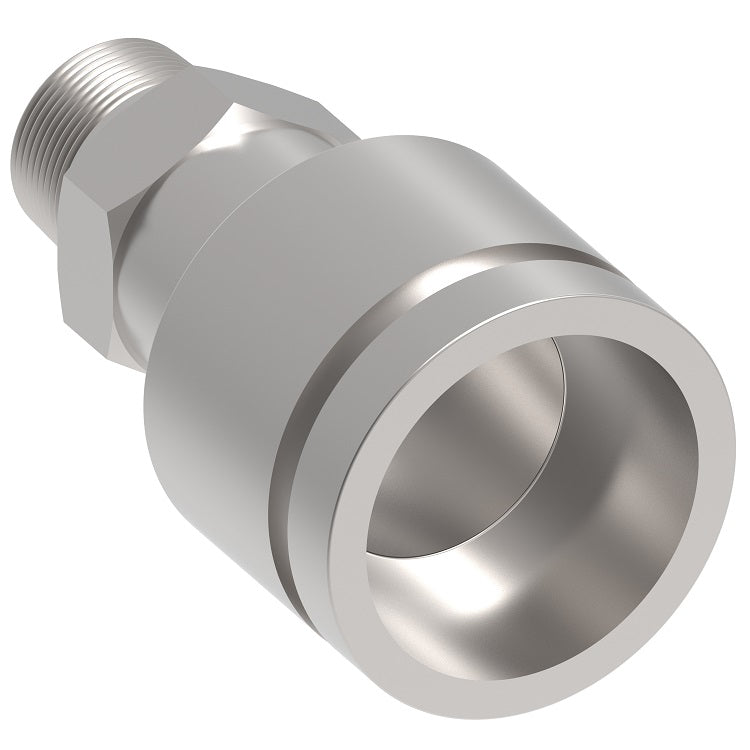

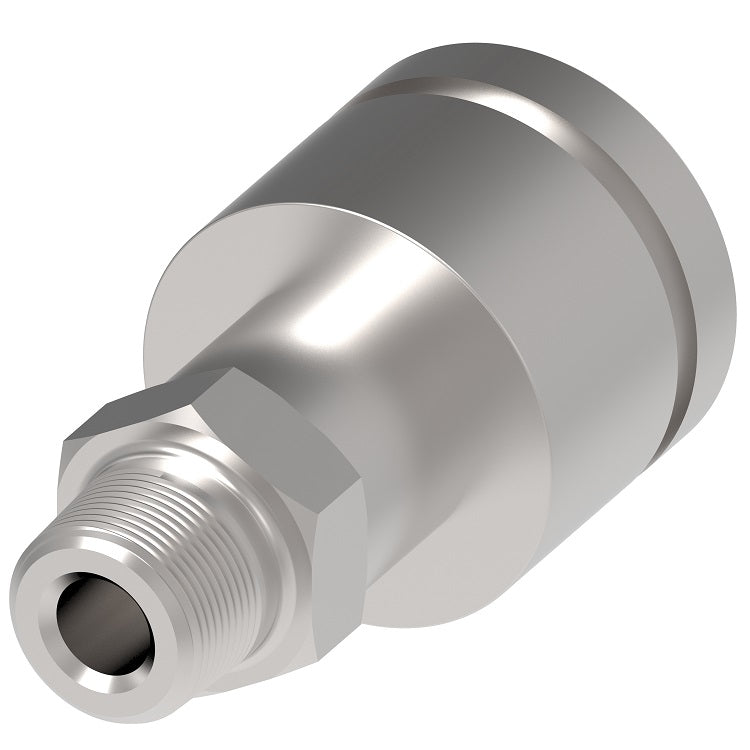

HP3SB37M Hansen® by Danfoss | Quick Disconnect Coupling | HP3 Series | 3/8" Male NPT x 3/8" High Pressure | Socket | NBR Seal | Steel
Hansen® by Danfoss
HP3 Series | High Pressure Application
Fluid Transfer and Hydraulic Quick Disconnect Coupling
Danfoss Hansen HP3 Series Hydraulic Jack/Enerpac Interchange is designed for high-pressure applications up to 700 bar (10,000 psi).
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $36.42 |
| 40–79 | $32.93 |
| 80+ | $29.06 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Shape:
Straight
Material(s):
Seal Material(s):
| Product Features: |
|
|---|---|
| Applications & Markets: |
|
| Materials: |
|
| Body Size | Max. Operating Pressure (Static) | Min. Burst Pressure | Rated Flow | |||
|---|---|---|---|---|---|---|
| Connected | Connected | |||||
| 3/8" | 700 bar | 10,000 psi | 2200 bar | 31,900 psi | 23 lmp | 6 gpm |
* Connect and disconnect under pressure not allowed
 |
 |
||||||||
|---|---|---|---|---|---|---|---|---|---|

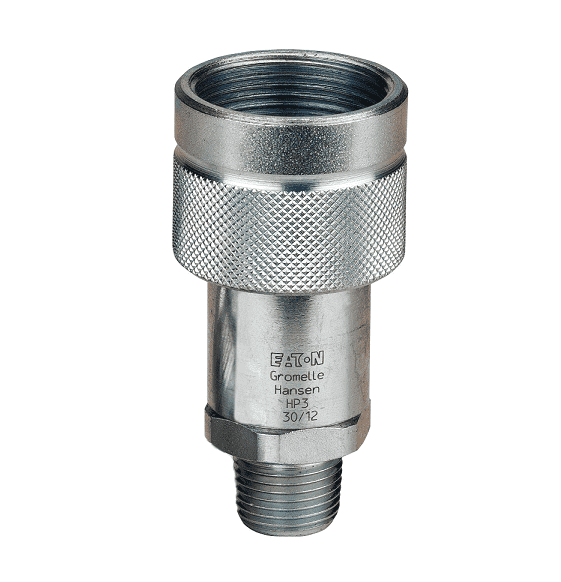

Socket/Female (Figure 1) |
Plug/Male (Figure 2) |
||||||||
| HP3 Series | High Pressure Application | |||||||||
| Part Number | Coupling Type |
Body Size |
Port Size |
Thread | Figure | Dimensions | Dust Plug/Cap Part Number |
||
| NBR | A | B | Hex | ||||||
| HP3SB37M | Socket/Female | 3/8" | 3/8" | 3/8-18 Male NPT | 1 | 2.84" (72.2mm) |
1.38" (35.0mm) |
0.94" (24mm) |
WA5612700 |
| HP3PB37F | Plug/Male | 3/8" | 3/8" | 3/8-18 Female NPT | 2 | 1.57" (40.0mm) |
1.38" (35.0mm) |
1.26" (32mm) |
WA5612400 |
