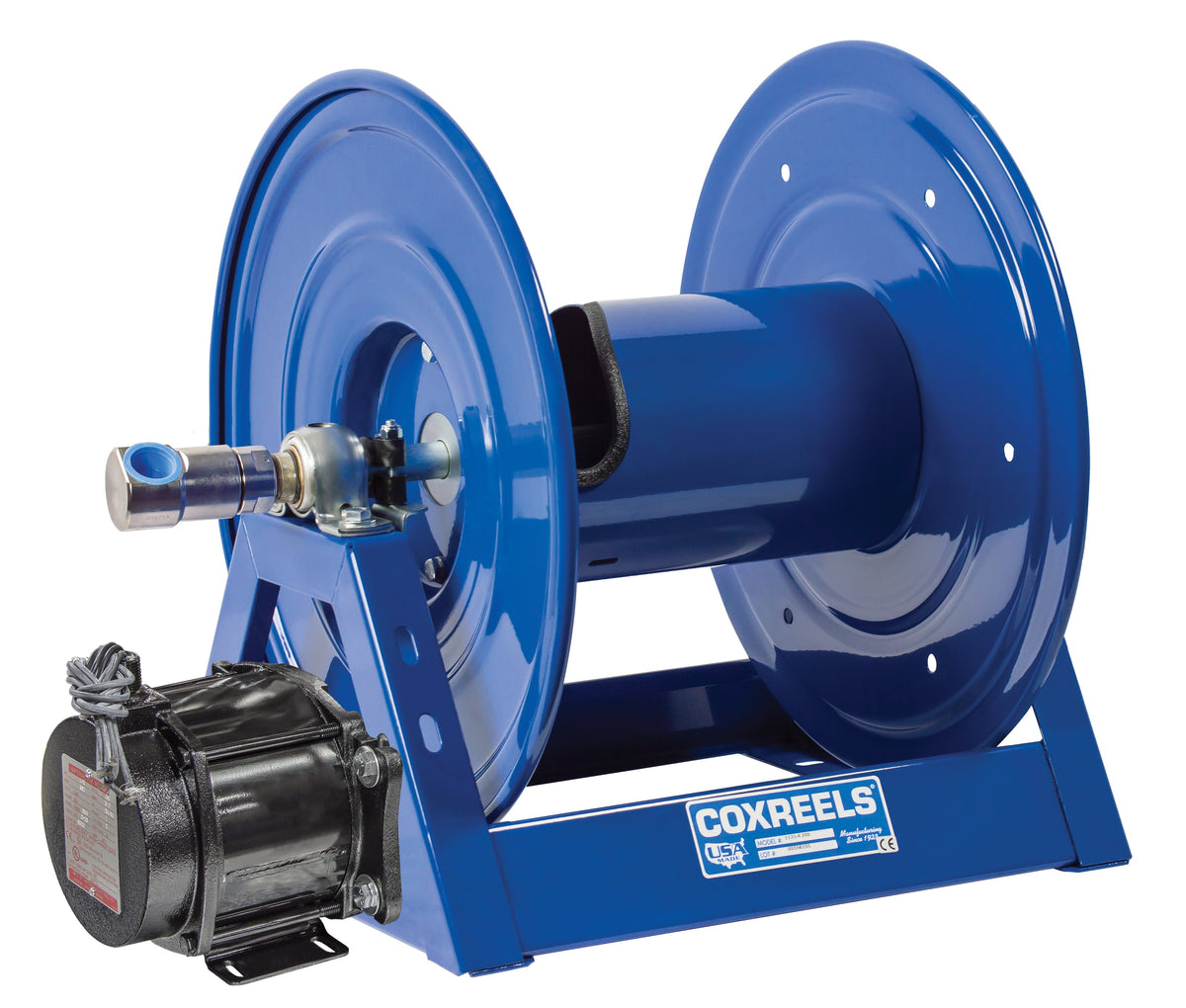

HP1125-5-175-EA by Coxreels | HP1125 Series | 5,000 PSI Motor Driven Hose Reel | 115V AC 1/2 HP Explosion Proof Electric Motor | 3/4" Hose ID, 3/4" FNPT Inlet | Steel | 175ft Capacity, Hose Not Included
Buy more, save moreDiscounts applied in cart/checkout.
Motor driven hose reel
Coxreels HP1125 Series Motor Driven Hose Reels
Steel A-frame motor driven hose reels for air, water, oil and lubrication, washdown and pressure washing, rated to 5,000 PSI. Made in the U.S.A.
1
What is this product used for?
- Air
- Water
- Oil & Lubrication
- Washdown
- Pressure Washing
- Pest Control
- Spraying Operations
- Chemical Fluid Transfer
- Jetting
2
What are the key specifications?
Construction
Steel, A-frame
Swivel
Electroless Nickel Plated Steel 90° full-flow with AFLAS seals
Inlet
Female NPT, same size as the hose I.D.
Max Temperature
250°F / +32 to +400°F depending on hose
Bearings
Permanently Lubricated Self Aligning Pillow Block Bearings
Finish
CPC™ powder coat
Mounting
Floor, Wall, Vehicle Mounting
Mounting Holes
0.5 SLOT
3
What are the main product features?
- Swivel — Electroless nickel plated steel 90 full-flow NPT swivel inlet.
- CNC Spun Discs — Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection, and operator safety.
- Outlet Riser — Exclusive low profile outlet riser and open drum slot design provides a non-crimping, flat smooth hose wrap.
- "A" Frame — Sturdy one piece, all CNC robotically welded 12 Gage steel "A" frame base, not bolted, for superior reel structure. Mounting pattern located in the steel base for easy reel installation and detachment.
- Permanently Lubricated Bearings — Sturdy permanently lubricated and self-aligning pillow block bearings for smooth rotation and trouble-free operation.
4
Which models are available?
| Base Model | Hose I.D. | Capacity | Max PSI | Drum Width | Available Motor Suffixes |
|---|---|---|---|---|---|
| HP1125-4-100 | 1/2" | 100 ft | 5,000 | 6" | -A -E -H -AB -EA -ED |
| HP1125-4-200 | 1/2" | 200 ft | 5,000 | 12" | -A -E -H -EA -EB -ED -EF |
| HP1125-4-325 | 1/2" | 325 ft | 5,000 | 18" | -A -E -H -AB -EA -ED -EJ |
| HP1125-4-450 | 1/2" | 450 ft | 5,000 | 24" | -A -E -H -AB -EA -ED |
| HP1125-4-500 | 1/2" | 500 ft | 5,000 | 28" | -E -H -AB -EA -ED -EJ |
| HP1125-5-50 | 3/4" | 50 ft | 5,000 | 6" | -A -E -EB |
| HP1125-5-100 | 3/4" | 100 ft | 5,000 | 12" | -A -E -H -EA -ED -EF |
| HP1125-5-175 | 3/4" | 175 ft | 5,000 | 18" | -A -E -EA |
| HP1125-5-200 | 3/4" | 200 ft | 5,000 | 24" | -A -E -EA -ED -EF |
| HP1125-5-250 | 3/4" | 250 ft | 5,000 | 28" | -A -E -EA -ED |
Part number = base model + motor suffix (e.g. HP1125-4-100-A). Suffix key:
| Suffix | Motor |
|---|---|
| -A | Air motor (#4 Gast) |
| -E | 12V DC, 1/3 HP electric motor |
| -H | Hydraulic motor |
| -AB | Air motor (#6 Gast) |
| -EA | 115V AC, 1/2 HP, explosion proof electric motor |
| -EB | 24V DC, 1/2 HP, explosion proof electric motor |
| -ED | 12V DC, 1/2 HP, explosion proof electric motor |
| -EF | 24V DC, 1/3 HP electric motor |
| -EJ | 230V AC, 1/2 HP, explosion proof electric motor |
5
Which accessories are available?
Mounting brackets — by drum width:
Roller guides — by drum width:
| Accessory | 6" | 12" | 18" | 24" | 28" |
|---|---|---|---|---|---|
| 3-way roller bracket, bottom rewind | 15362-6 | 15362-12 | 15362-18 | 15362-24 | 15362-28 |
| 3-way roller bracket, top rewind | 15359-6 | 15359-12 | 15359-18 | 15359-24 | 15359-28 |
| 4-way roller bracket, bottom rewind | 15354-6 | 15354-12 | 15354-18 | 15354-24 | 15354-28 |
| 4-way roller bracket, top payout, ceiling mount applications | 15358-6 | 15358-12 | 15358-18 | 15358-24 | 15358-28 |
| 4-way roller bracket, top rewind | 15353-6 | 15353-12 | 15353-18 | 15353-24 | 15353-28 |
| 4-way roller bracket, top rewind extension | 15353-P-6 | 15353-P-12 | 15353-P-18 | 15353-P-24 | 15353-P-28 |
| Part # | Accessory | Fits |
|---|---|---|
| Hose guides — fit every model | ||
| 15732 | Pivoting Hose Guide - Bottom Return | |
| 15733 | Pivoting Hose Guide - Top Return | |
| 15734 | Sliding Hose Guide | |
| Inlet connections — fit hose I.D. 1/2" | ||
| 15717 | Garden Hose Kit | |
| Upgrades and service parts | ||
| 7406 | Gear Guards (for motor driven only) | Every model |
| 8340 | Heavy Duty Band Brake | Every model |
| 7429-1-4 | High Temperature Drag Brake | Hose I.D. 1/2" |
| 7429-1-5 | High Temperature Drag Brake | Hose I.D. 3/4" |
| HSRK-050 | Hose Strain Relief Kit | Hose I.D. 1/2" |
| HSRK-075 | Hose Strain Relief Kit | Hose I.D. 3/4" |
| 20843 | Spring Loaded Lock Pin | Every model |
| 15735 | Wand Holder | Every model |
| Motor controls | ||
| 20873, 20874, 20875 | 115/230 AC/Volt Variable Speed Controller | -EA, -EJ models except HP1125-5-200/250-EA |
| 20870, 20871, 20872 | 12 Volt DC Electric Motor Variable Speed Controller | HP1125-4-100/200/325/450/500-E; HP1125-4-100/200/325/450/500-ED; HP1125-5-50/100/200/250-E; HP1125-5-100-ED |
| 20878 | Circuit Breaker | HP1125-4-100/200/325/450/500-E; HP1125-4-100/200/325/450/500-ED; HP1125-5-50/100/200/250-E; HP1125-5-100-ED |
| 15212 | Control Valve for No. 4 Gast Air Motor | -A models except HP1125-5-100/200-A |
| 15212-1 | Control Valve for No. 6 Gast Air Motor | -AB models |
| 20882 | Explosion Proof Stationary Push Button Switch | -E models except HP1125-5-175-E |
| 15210 | General Purpose Reversing Switch | -EA, -EJ models except HP1125-5-200/250-EA |
| 20876 | Sealed Push Button Switch | HP1125-4-100/200/325/450/500-E; HP1125-4-100/200/325/450/500-EA; HP1125-4-100/200/325/450/500-ED; HP1125-4-200-EB; HP1125-4-200-EF; HP1125-4-325/500-EJ; HP1125-5-50/100/200/250-E; HP1125-5-100/175-EA; HP1125-5-100-ED |
| 20877 | Solenoid Relay | HP1125-4-100/200/325/450/500-E; HP1125-4-100/200/325/450/500-ED; HP1125-5-50/100/200/250-E; HP1125-5-100-ED |
| 8281 | Switch Box | HP1125-4-100/200/325/450/500-E; HP1125-4-100/200/325/450/500-ED; HP1125-5-50/100/200/250-E; HP1125-5-100-ED |
| 20883 | Vapor Proof Junction Box | HP1125-4-100/200/325/450/500-E; HP1125-4-100/200/325/450/500-EA; HP1125-4-100/200/325/450/500-ED; HP1125-4-200-EB; HP1125-4-200-EF; HP1125-4-325/500-EJ; HP1125-5-50/100/200/250-E; HP1125-5-100/175-EA; HP1125-5-100-ED |
6
Which factory options can be ordered?
Options are built to order and quoted individually — use the quote form on this page. Each code is the full 4-character option code; X marks positions left standard (B = standard color). Add it after the model number and any mounting or hose suffix; combine options by merging characters. For example, -GXXX plus -BYXX is -GYXX. Leave it off if it would be BXXX. Combinations are confirmed with the quote.
| Code | Option |
|---|---|
| Prefix — added before the model number | |
| REPLACE "HP" WITH BH- | Brawny Reel Upgrade |
| Color / finish | |
| -GXXX | Gray |
| -KXXX | Gloss Black |
| -RXXX | Red |
| -CXXX | Wrinkle Black (25 reel minimum) |
| -WXXX | Gloss White (25 reel minimum) |
| -NXXX | Green (25 reel minimum) |
| -ZXXX | Galvanized |
| Swivel and plumbing | |
| -BYXX | Less swivel, no riser, storage |
| -BZXX | Less swivel |
| 4-way roller position | |
| -BXCX | Top payout, on reel, hand crank right |
| -BXIX | Top payout, ceiling mount applications, on reel |
| -BXFX | Bottom payout, on reel, hand crank left |
| 3-way roller position | |
| -BXEX | Top payout, on reel, hand crank right |
| -BXHX | Bottom payout, on reel, hand crank left |
7
Where can I find product documents?
Operating Manual
Installation, mounting, adjustment and routine maintenance.
Made in the U.S.A. by Coxreels. 2-year limited manufacturer’s warranty (parts only).
How is this product sold?
Each.
