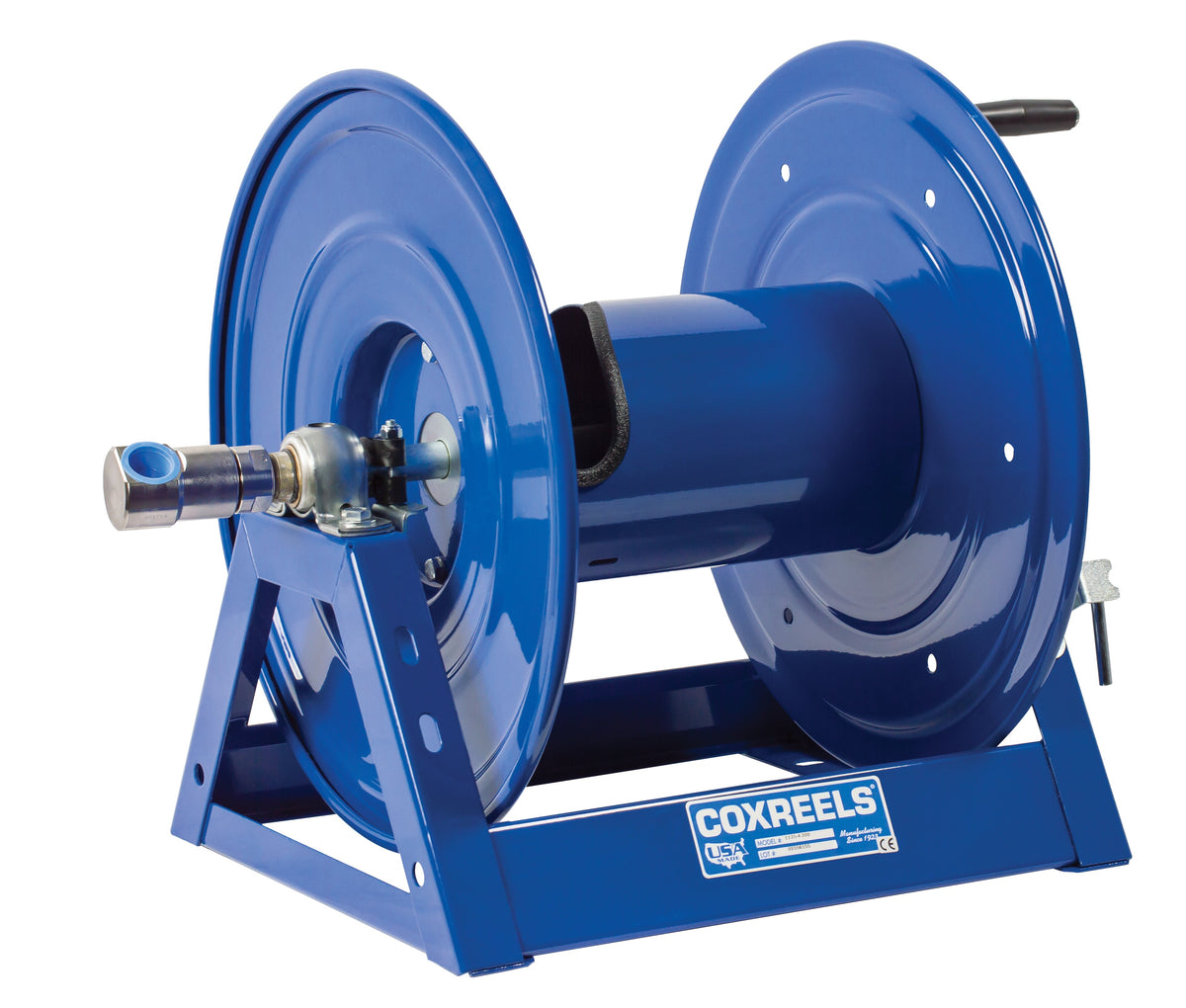

HP1125-4-100 by Coxreels | HP1125 Series | 5,000 PSI Hand Crank Hose Reel | 1/2" Hose ID, 1/2" FNPT Inlet | Steel | 100ft Capacity, Hose Not Included
Buy more, save moreDiscounts applied in cart/checkout.
Hand crank hose reel
Coxreels HP1125 Series Hand Crank Hose Reels
Steel A-frame hand crank hose reels for air, water, oil and lubrication, washdown and pressure washing, rated to 5,000 PSI. Made in the U.S.A.
1
What is this product used for?
- Air
- Water
- Oil & Lubrication
- Washdown
- Pressure Washing
- Pest Control
- Spraying Operations
- Chemical Fluid Transfer
- Jetting
2
What are the key specifications?
Construction
Steel, A-frame
Swivel
Electroless Nickel Plated Steel 90° full-flow with AFLAS seals
Max Temperature
250°F / +32 to +400°F depending on hose
Bearings
Permanently Lubricated Self Aligning Pillow Block Bearings
Finish
CPC™ powder coat
Mounting
Floor, Wall, Vehicle Mounting
0.5" slotted mounting holes
3
What are the main product features?
- Swivel — Electroless nickel plated steel 90 full-flow NPT swivel inlet.
- CNC Spun Discs — Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection, and operator safety.
- Outlet Riser — Exclusive low profile outlet riser and open drum slot design provides a non-crimping, flat smooth hose wrap.
- "A" Frame — Sturdy one piece, all CNC robotically welded 12 Gage steel "A" frame base, not bolted, for superior reel structure. Mounting pattern located in the steel base for easy reel installation and detachment.
- Permanently Lubricated Bearings — Sturdy permanently lubricated and self-aligning pillow block bearings for smooth rotation and trouble-free operation.
4
Which models are available?
| Part # | Hose I.D. | Capacity | Max PSI | Inlet | Drum Width | Reel W × H × L (in) |
|---|---|---|---|---|---|---|
| HP1125-4-100 | 1/2" | 100 ft | 5,000 | 1/2" FNPT | 6" | 19.5 × 18.75 × 17.625 |
| HP1125-4-100-C | 1/2" | 100 ft | 5,000 | 1/2" FNPT | 6" | 19.5 × 18.75 × 17.625 |
| HP1125-4-200 | 1/2" | 200 ft | 5,000 | 1/2" FNPT | 12" | 25.5 × 18.75 × 17.625 |
| HP1125-4-200-C | 1/2" | 200 ft | 5,000 | 1/2" FNPT | 12" | 25.5 × 18.75 × 17.625 |
| HP1125-4-325 | 1/2" | 325 ft | 5,000 | 1/2" FNPT | 18" | 31.5 × 18.75 × 17.625 |
| HP1125-4-325-C | 1/2" | 325 ft | 5,000 | 1/2" FNPT | 18" | 31.5 × 18.75 × 17.625 |
| HP1125-4-450 | 1/2" | 450 ft | 5,000 | 1/2" FNPT | 24" | 37.5 × 18.75 × 17.625 |
| HP1125-4-500 | 1/2" | 500 ft | 5,000 | 1/2" FNPT | 28" | 41.5 × 18.75 × 17.625 |
| HP1125-5-50 | 3/4" | 50 ft | 5,000 | 3/4" FNPT | 6" | 20.75 × 18.75 × 17.625 |
| HP1125-5-100 | 3/4" | 100 ft | 5,000 | 1/2" FNPT | 12" | 26.75 × 18.75 × 17.625 |
| HP1125-5-100-C | 3/4" | 100 ft | 5,000 | 1/2" FNPT | 12" | 26.75 × 18.75 × 17.625 |
| HP1125-5-175 | 3/4" | 175 ft | 5,000 | 3/4" FNPT | 18" | 32.75 × 18.75 × 17.625 |
| HP1125-5-200 | 3/4" | 200 ft | 5,000 | 3/4" FNPT | 24" | 38.75 × 18.75 × 17.625 |
| HP1125-5-200-C | 3/4" | 200 ft | 5,000 | 3/4" FNPT | 24" | 38.75 × 18.75 × 17.625 |
| HP1125-5-250 | 3/4" | 250 ft | 5,000 | 3/4" FNPT | 28" | 42.75 × 18.75 × 17.625 |
5
Which accessories are available?
Mounting brackets — by drum width:
Roller guides — by drum width:
| Accessory | 6" | 12" | 18" | 24" | 28" |
|---|---|---|---|---|---|
| 3-way roller bracket, bottom rewind | 15362-6 | 15362-12 | 15362-18 | 15362-24 | 15362-28 |
| 3-way roller bracket, top rewind | 15359-6 | 15359-12 | 15359-18 | 15359-24 | 15359-28 |
| 4-way roller bracket, bottom rewind | 15354-6 | 15354-12 | 15354-18 | 15354-24 | 15354-28 |
| 4-way roller bracket, top payout, ceiling mount applications | 15358-6 | 15358-12 | 15358-18 | 15358-24 | 15358-28 |
| 4-way roller bracket, top rewind | 15353-6 | 15353-12 | 15353-18 | 15353-24 | 15353-28 |
| 4-way roller bracket, top rewind extension | 15353-P-6 | 15353-P-12 | 15353-P-18 | 15353-P-24 | 15353-P-28 |
| Part # | Accessory | Fits |
|---|---|---|
| Hose guides — fit every model | ||
| 15732 | Pivoting Hose Guide - Bottom Return | |
| 15733 | Pivoting Hose Guide - Top Return | |
| 15734 | Sliding Hose Guide | |
| Inlet connections — fit hose I.D. 1/2" | ||
| 15717 | Garden Hose Kit | |
| Upgrades and service parts | ||
| 7429-1-4 | High Temperature Drag Brake | Hose I.D. 1/2" |
| 7429-1-5 | High Temperature Drag Brake | Hose I.D. 3/4" |
| HSRK-050 | Hose Strain Relief Kit | Hose I.D. 1/2" |
| HSRK-075 | Hose Strain Relief Kit | Hose I.D. 3/4" |
| 20843 | Spring Loaded Lock Pin | Every model |
| 15735 | Wand Holder | Every model |
| Carts | ||
| PR-1125-HC | Carry Handles | HP1125-4-200-C; HP1125-4-200 |
| PRP-1125-12 | Portable Cart - (w/ 8" semi-pneumatic tires) | HP1125-4-200-C; HP1125-4-200 |
| PR-1125-6 | Portable Cart - (w/ Solid 8" rubber tires) | Capacity 50 ft |
| PR-1125-12 | Portable Cart - (w/ Solid 8" rubber tires) | HP1125-4-200-C; HP1125-4-200 |
6
Which factory options can be ordered?
Options are built to order and quoted individually — use the quote form on this page. Each code is the full 4-character option code; X marks positions left standard (B = standard color). Add it after the model number and any mounting or hose suffix; combine options by merging characters. For example, -GXXX plus -BYXX is -GYXX. Leave it off if it would be BXXX. Combinations are confirmed with the quote.
| Code | Option |
|---|---|
| Prefix — added before the model number | |
| REPLACE "HP" WITH BH- | Brawny Reel Upgrade |
| Color / finish | |
| -GXXX | Gray |
| -KXXX | Gloss Black |
| -RXXX | Red |
| -CXXX | Wrinkle Black (25 reel minimum) |
| -WXXX | Gloss White (25 reel minimum) |
| -NXXX | Green (25 reel minimum) |
| -ZXXX | Galvanized |
| Swivel and plumbing | |
| -BYXX | Less swivel, no riser, storage |
| -BZXX | Less swivel |
| 4-way roller position | |
| -BXCX | Top payout, on reel, hand crank right |
| -BXIX | Top payout, ceiling mount applications, on reel |
| -BXFX | Bottom payout, on reel, hand crank left |
| 3-way roller position | |
| -BXEX | Top payout, on reel, hand crank right |
| -BXHX | Bottom payout, on reel, hand crank left |
7
Where can I find product documents?
Operating Manual
Installation, mounting, adjustment and routine maintenance.
Made in the U.S.A. by Coxreels. 2-year limited manufacturer’s warranty (parts only).
How is this product sold?
Each.
