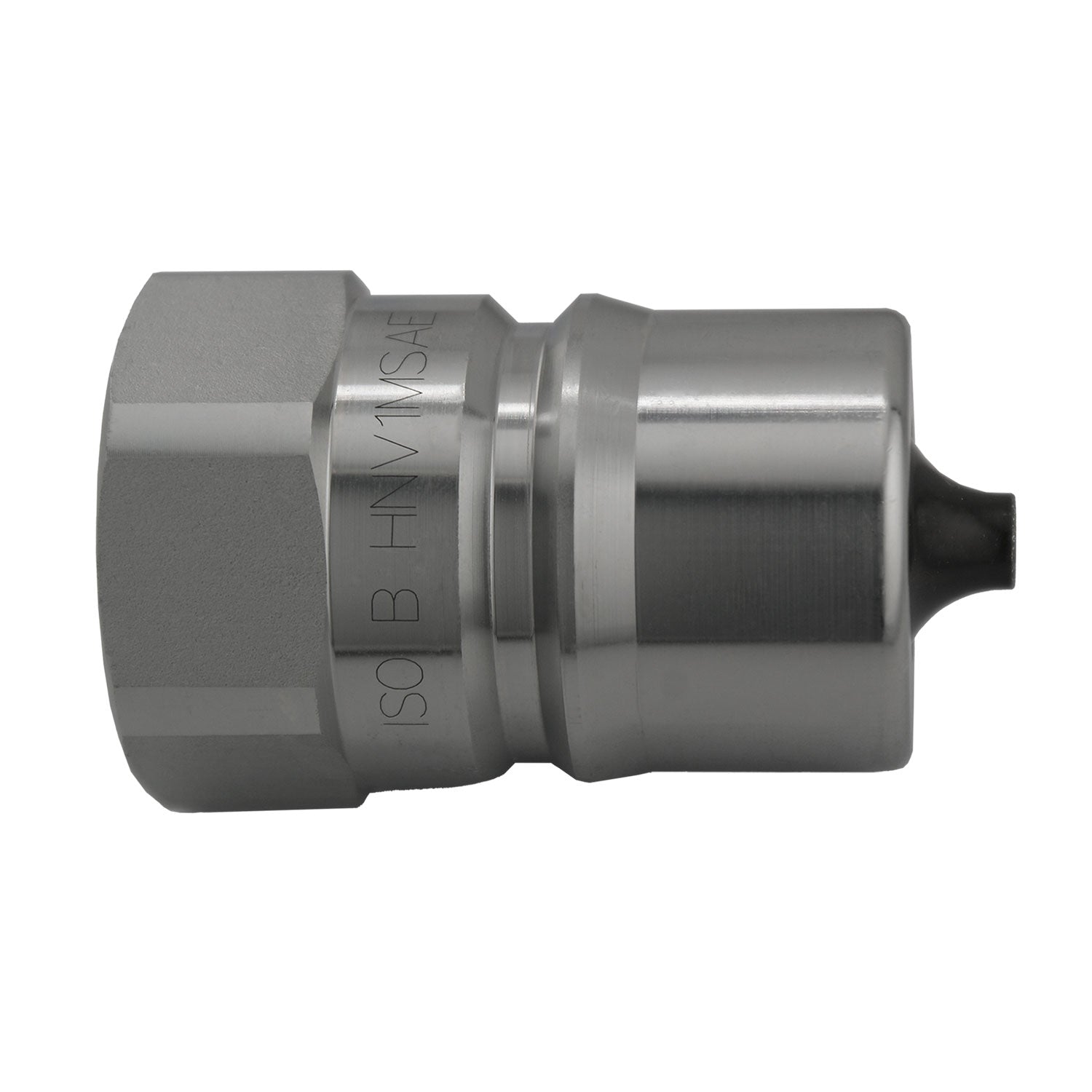

HNV12MSAE by Midland | Hydraulic Quick Disconnect | ISO-B Plug | 1/2" Body Size x 1/2" Female SAE O-Ring Boss | Steel
Minimum Order Quantity: 5 Units
Midland Industries
Hydraulic Quick Disconnects: ISO-B Female SAE ORB Plug - Steel
| Buy More, Save More! | |
| Quantity | Price Each |
| 20–39 | $7.55 |
| 40–79 | $6.83 |
| 80+ | $6.02 |
Discounts applied in cart/checkout.
Product Data:
Ends Configuration:
Material(s):
| Features: | |||
|---|---|---|---|
|
| ISO 7241-1 Series B ISO-B Interchange ( Connected ) | ||||||||
|---|---|---|---|---|---|---|---|---|
| Body Size | Steel Coupler/ Plug | Brass Coupler/ Plug | ||||||
| Maximum Working | Burst | Maximum Working | Burst | |||||
| PSI | Bar | PSI | Bar | PSI | Bar | PSI | Bar | |
| 1/4" | 5,000 PSI | 345 Bar | 22,500 PSI | 1,550 Bar | 3,000 PSI | 200 Bar | 15,000 PSI | 1,000 Bar |
| 3/8" | 4,000 PSI | 275 Bar | 16,500 PSI | 1,150 Bar | 2,500 PSI | 175 Bar | 12,000 PSI | 800 Bar |
| 1/2" | 4,000 PSI | 275 Bar | 16,000 PSI | 1,100 Bar | 2,500 PSI | 175 Bar | 11,500 PSI | 750 Bar |
| 3/4" | 4,000 PSI | 275 Bar | 16,500 PSI | 1,150 Bar | 2,000 PSI | 150 Bar | 12,000 PSI | 800 Bar |
| 1" | 4,000 PSI | 275 Bar | 16,000 PSI | 1,100 Bar | 1,500 PSI | 100 Bar | 8,500 PSI | 800 Bar |
