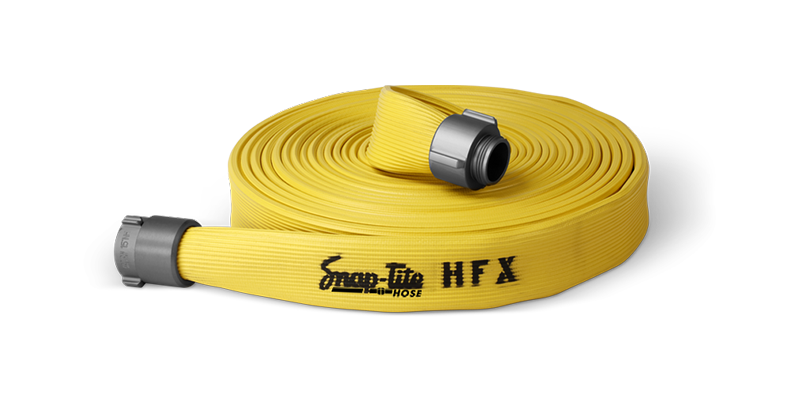

HFX15x25Y15NBR by Snap-Tite | HFX Series | Nitrile Fire Hose Assembly with Polyester/Nylon Reinforcement | 1-1/2" Hose I.D. | 1-1/2" Male NH x 1-1/2" Female NH Rocker Lug Couplings | 300 PSI | Yellow | 25ft Length

HFX15x25Y15NBR by Snap-Tite | HFX Series | Nitrile Fire Hose Assembly with Polyester/Nylon Reinforcement | 1-1/2" Hose I.D. | 1-1/2" Male NH x 1-1/2" Female NH Rocker Lug Couplings | 300 PSI | Yellow | 25ft Length

Sale price$179.17

Snap-Tite Hose
HFX™ - EXTRUDED NITRILE RUBBER HOSE

This hose may take 1-2 weeks to ship.

Package Quantity: 25 FT

Buy More, Save More!
Quantity Price Each
5–19 $168.42
20–59 $152.29
60+ $134.38
Discounts applied in cart/checkout.

Product Data:

Series:
  • HFX Series
Color(s):
  • Yellow
Internal Diameter:
  • 1-1/2in
Model: HFX™
Basic Construction: Nitrile rubber thru-the-weave with polyester and nylon reinforcing jacket
Application: Attack, Supply, Soft Suction
Colors: Yellow, Red
Temperature Range: -40 ° F - 200 ° F
Description:
HFX™ is a nitrile thru-the-weave, rubber covered .re hose that utilizes polyester and nylon 6.6 yarn in the reinforcing jacket. Under pressure, the polyester keeps the hose from snaking, while the nylon allows for controlled dilation, reducing friction loss, and generating higher ow rates. Our special rubber compound provides a tough cover that resists heat, abrasion, snags, and hot embers. The interlocking matrix also means no adhesives are used and there is a permanent bond to all the warp and weft yarns. The Snap-tite HFX™ is highly resistant to both conductive and radiant heat.
Features:
  • Extruded thru-the-weave, nitrile rubber fire hose. The reinforcement is made with a blend of circular woven, twill weave, polyester, and nylon fibers.
  • The ribs on the cover surface greatly increase abrasion resistance and help provide a long service life.
  • Remains flexible at temperatures as low as -40 °F (-40 °C) and is resistant to ozone, oxidation, and most chemicals and petrochemicals.
  • Suitable for attack, soft sleeve suction, and relay applications.
  • Unique extruded nitrile rubber thru-the-weave construction provides a flexible, easy to maneuver hose that is easy to pack.
  • Made in USA to ISO-9001:2015 certified quality assurance system.
YELLOW
Yellow
Nominal
Size		 Part Number
25ft		 Part Number
50ft		 Part Number
100ft		 Coupling
Type		 Testing Pressures (PSI) Weight
(LBS/FT)		 Abrasion
Resistance
Working Proof Burst Uncoupled # of Taber Abrasion Cycles (H-22 wheel)
1" HFX10x25Y10N HFX10x50Y10N HFX10x100Y10N Standard 300 psi 600 psi 900 psi 0.12 -
1-1/2" HFX15x25Y15N HFX15x50Y15N HFX15x100Y15N Standard 300 psi 600 psi 900 psi 0.30 11,000
HFX15x25Y15NBR HFX15x50Y15NBR HFX15x100Y15NBR Brass Rocker Lugs
1-3/4" HFX17x25Y15N HFX17x50Y15N HFX17x100Y15N Standard 300 psi 600 psi 900 psi 0.36 24,800
HFX17x25Y15NBR HFX17x50Y15NBR HFX17x100Y15NBR Brass Rocker Lugs
2" HFX20x25Y15N HFX20x50Y15N HFX20x100Y15N Standard 300 psi 600 psi 900 psi 0.40 8,500
2-1/2" HFX25x25Y25N HFX25x50Y25N HFX25x100Y25N Standard 300 psi 600 psi 900 psi 0.56 19,600
HFX25x25Y25NBR HFX25x50Y25NBR HFX25x100Y25NBR Brass Rocker Lugs
3" HFX30x25Y25N HFX30x50Y25N HFX30x100Y25N Standard 300 psi 600 psi 900 psi 0.62 14,000
4" HFX40x25Y40S HFX40x50Y40S HFX40x100Y40S Standard 250 psi 500 psi 750 psi 0.78 23,500
5" HFX50x25Y50S HFX50x50Y50S HFX50x100Y50S Standard 225 psi 450 psi 675 psi 0.91 20,800
RED
Red
Nominal
Size		 Part Number
25ft		 Part Number
50ft		 Part Number
100ft		 Coupling
Type		 Testing Pressures (PSI) Weight
(LBS/FT)		 Abrasion
Resistance
Working Proof Burst Uncoupled # of Taber Abrasion Cycles (H-22 wheel)
1" HFX10x25R10N HFX10x50R10N HFX10x100R10N Standard 300 psi 600 psi 900 psi 0.12 -
1-1/2" HFX15x25R15N HFX15x50R15N HFX15x100R15N Standard 300 psi 600 psi 900 psi 0.30 11,000
HFX15x25R15NBR HFX15x50R15NBR HFX15x100R15NBR Brass Rocker Lugs
1-3/4" HFX17x25R15N HFX17x50R15N HFX17x100R15N Standard 300 psi 600 psi 900 psi 0.36 24,800
HFX17x25R15NBR HFX17x50R15NBR HFX17x100R15NBR Brass Rocker Lugs
2" HFX20x25R15N HFX20x50R15N HFX20x100R15N Standard 300 psi 600 psi 900 psi 0.40 8,500
2-1/2" HFX25x25R25N HFX25x50R25N HFX25x100R25N Standard 300 psi 600 psi 900 psi 0.56 19,600
HFX25x25R25NBR HFX25x50R25NBR HFX25x100R25NBR Brass Rocker Lugs
3" HFX30x25R25N HFX30x50R25N HFX30x100R25N Standard 300 psi 600 psi 900 psi 0.62 14,000
4" HFX40x25R40S HFX40x50R40S HFX40x100R40S Standard 250 psi 500 psi 750 psi 0.78 23,500
5" HFX50x25R50S HFX50x50R50S HFX50x100R50S Standard 225 psi 450 psi 675 psi 0.91 20,800

*1-year warranty.

*1-1/2", 1-3/4", 2-1/2", 4", and 5" are UL/ULC Certified.

*2" ULC only.

*Potable water approved: No

*Quality Management System Certification: ISO 9001:2015 Registration # 11-R1045
