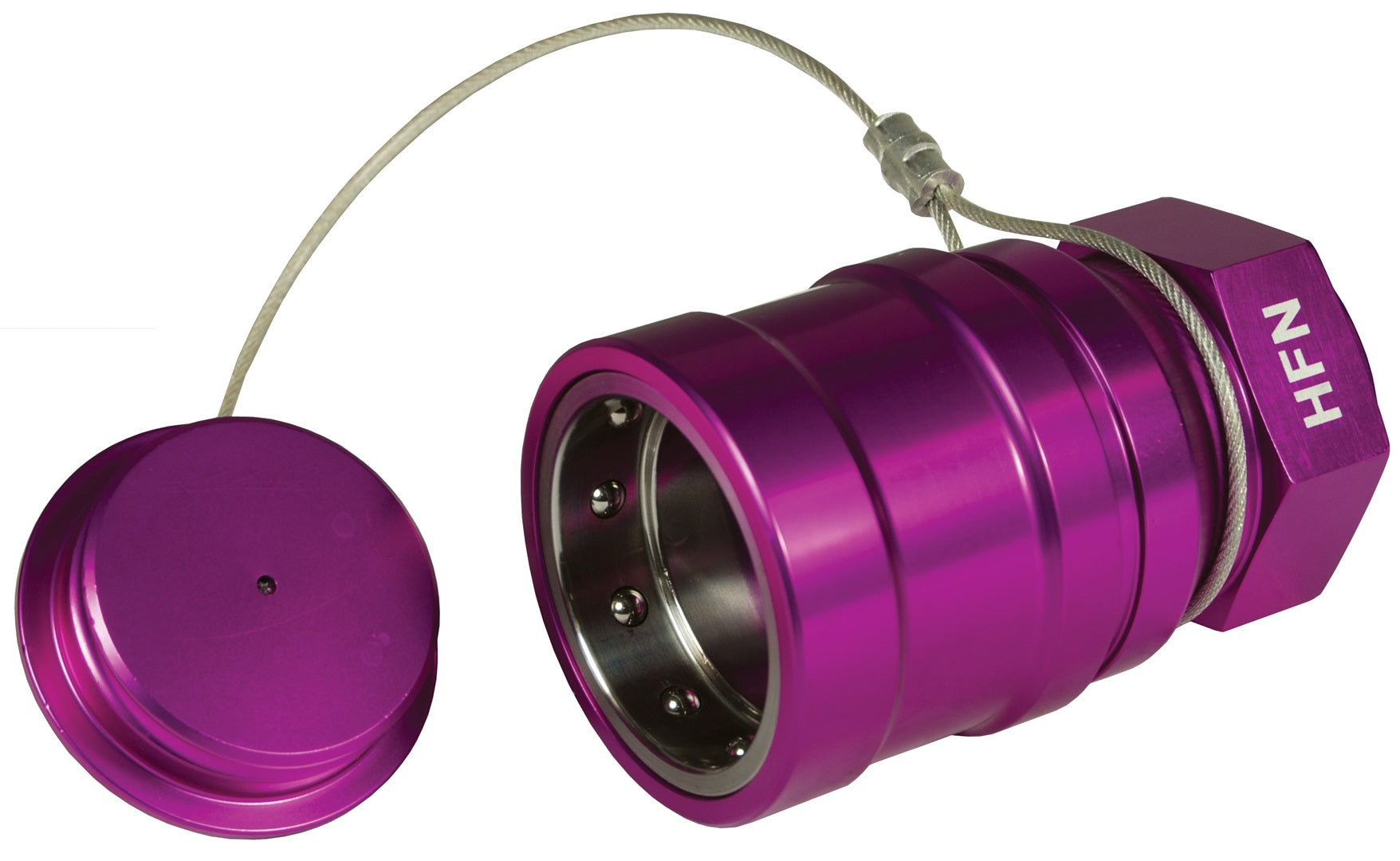

HFN-P4 by Dixon Valve | FloMAX High Flow 1"-Series | Nozzle with Plug | 1" Female NPT | Violet/Purple | Anodized Aluminum

HFN-P4 by Dixon Valve | FloMAX High Flow 1"-Series | Nozzle with Plug | 1" Female NPT | Violet/Purple | Anodized Aluminum

Sale price$559.69

Dixon Valve
FloMAX High Flow 1" Series | Nozzle

Nozzle and receiver sets are color coded for quick identification of mating parts.

Each color nozzle and receiver will only couple with their matching color component, providing complete protection against cross contamination.
Buy More, Save More!
Quantity Price Each
5–14 $526.11
15–29 $475.74
30+ $419.77
Discounts applied in cart/checkout.

Product Data:

Brand:
  • FloMAX
Series:
  • HFN-P Series
Shape:

Straight
Features:
  • The nozzle/receiver combination has a flow area equivalent to a 1" schedule 80 pipe.
  • Nozzle incorporates a "ball lock" mechanism to ensure smooth and reliable operation.
Construction:
  • All wear parts are constructed of stainless steel for long life and corrosion resistance.
  • All non-wear parts are constructed of colored anodized aircraft grade aluminum for high strength, lightweight and corrosion resistance.
Specifications:
  • Length: nozzle 3.90" (99 mm), receiver 3.44" (87 mm)
  • Nozzle and receiver coupled length: 5.44" (138 mm)
  • Diameter: 2.50" (64 mm)
  • Hex size: 2" (51 mm)
  • Working pressure: 500 PSI with burst pressure: 1500 PSI.
FloMAX High Flow 1" Series Nozzles
Part Number Description Female Thread
HFN-P1 Red Nozzle with Plug 1" Female NPT
HFN-P2 Gold Nozzle with Plug 1" Female NPT
HFN-P3 Teal Nozzle with Plug 1" Female NPT
HFN-P4 Violet/Purple Nozzle with Plug 1" Female NPT
HFN-P5 Navy Nozzle with Plug 1" Female NPT
HFN-P6 Copper Nozzle with Plug 1" Female NPT
HFN-P7 Blue/Gray Nozzle with Plug 1" Female NPT
FloMAX High Flow 1" Series Receivers
Part Number Description Male Thread
HFR-C1 Red Receiver with Cap 1" Male NPT
HFR-C2 Gold Receiver with Cap 1" Male NPT
HFN-C3 Teal/Blue Receiver with Cap 1" Male NPT
HFR-C4 Violet/Purple Receiver with Cap 1" Male NPT
HFR-C5 Navy Receiver with Cap 1" Male NPT
HFN-C6 Copper Receiver with Cap 1" Male NPT
HFR-C7 Blue/Gray Receiver with Cap 1" Male NPT

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
