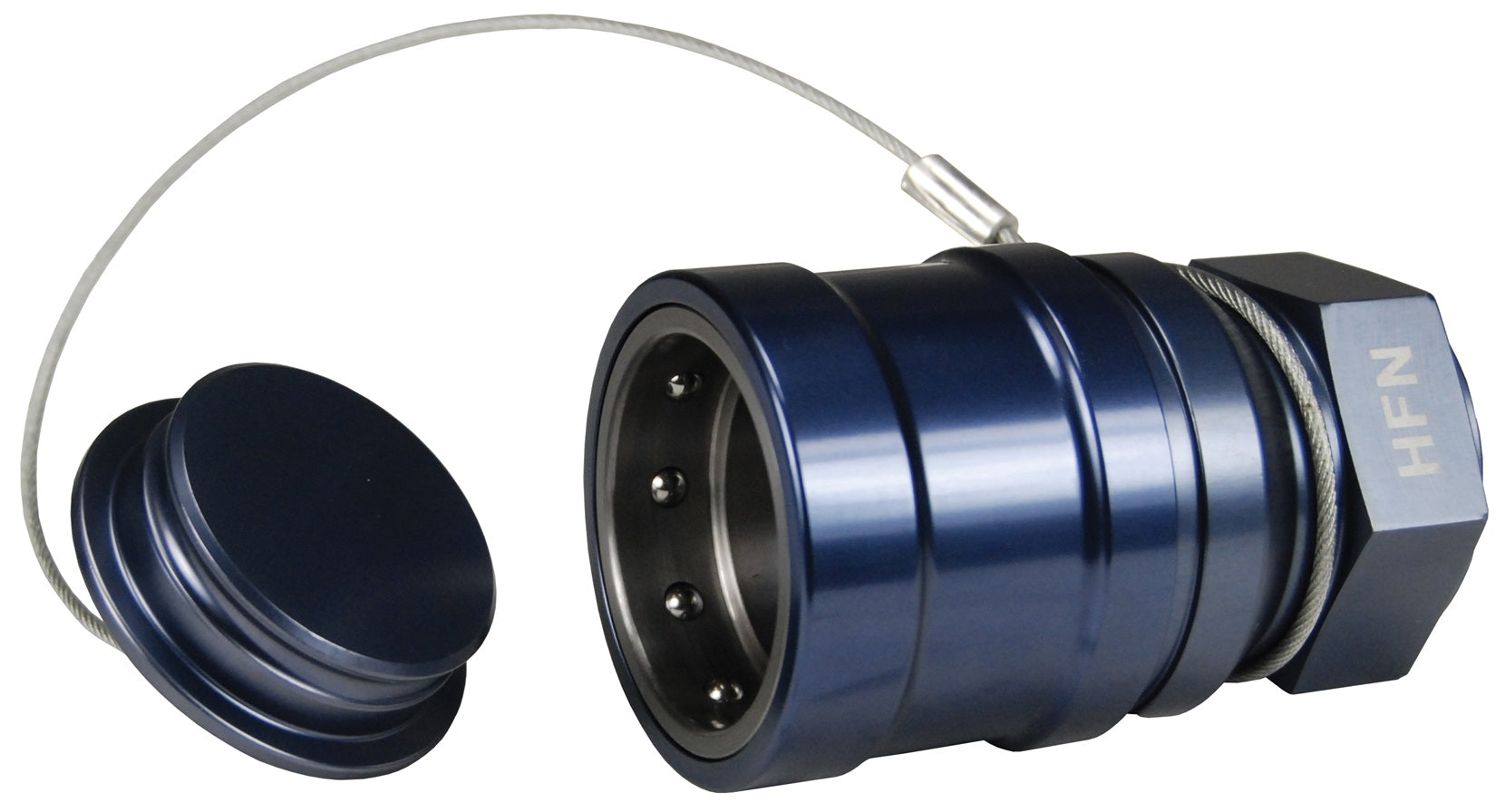

HFN-P7 by Dixon Valve | FloMAX High Flow 1"-Series | Nozzle with Plug | 1" Female NPT | Blue/Gray | Anodized Aluminum

HFN-P7 by Dixon Valve | FloMAX High Flow 1"-Series | Nozzle with Plug | 1" Female NPT | Blue/Gray | Anodized Aluminum

Sale price$559.39
Factory Order - Lead Time Applies
Buy more, save moreDiscounts applied in cart/checkout.
Features:
  • The nozzle/receiver combination has a flow area equivalent to a 1" schedule 80 pipe.
  • Nozzle incorporates a "ball lock" mechanism to ensure smooth and reliable operation.
Construction:
  • All wear parts are constructed of stainless steel for long life and corrosion resistance.
  • All non-wear parts are constructed of colored anodized aircraft grade aluminum for high strength, lightweight and corrosion resistance.
Specifications:
  • Length: nozzle 3.90" (99 mm), receiver 3.44" (87 mm)
  • Nozzle and receiver coupled length: 5.44" (138 mm)
  • Diameter: 2.50" (64 mm)
  • Hex size: 2" (51 mm)
  • Working pressure: 500 PSI with burst pressure: 1500 PSI.
FloMAX High Flow 1" Series Nozzles
Part Number Description Female Thread
HFN-P1 Red Nozzle with Plug 1" Female NPT
HFN-P2 Gold Nozzle with Plug 1" Female NPT
HFN-P3 Teal Nozzle with Plug 1" Female NPT
HFN-P4 Violet/Purple Nozzle with Plug 1" Female NPT
HFN-P5 Navy Nozzle with Plug 1" Female NPT
HFN-P6 Copper Nozzle with Plug 1" Female NPT
HFN-P7 Blue/Gray Nozzle with Plug 1" Female NPT
FloMAX High Flow 1" Series Receivers
Part Number Description Male Thread
HFR-C1 Red Receiver with Cap 1" Male NPT
HFR-C2 Gold Receiver with Cap 1" Male NPT
HFN-C3 Teal/Blue Receiver with Cap 1" Male NPT
HFR-C4 Violet/Purple Receiver with Cap 1" Male NPT
HFR-C5 Navy Receiver with Cap 1" Male NPT
HFN-C6 Copper Receiver with Cap 1" Male NPT
HFR-C7 Blue/Gray Receiver with Cap 1" Male NPT

Additional Product Data:

Brand:
  • FloMAX
Series:
  • HFN-P Series
Shape:

Straight

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
