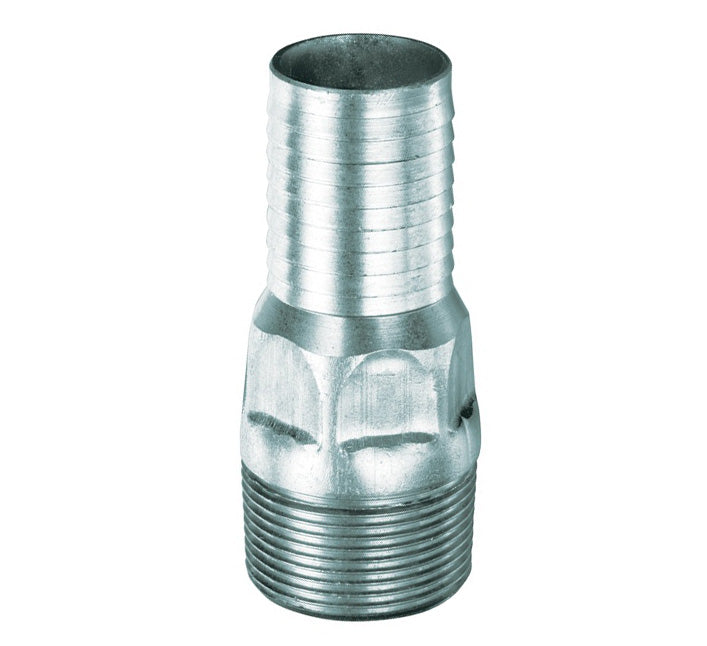

HEX-SPN125 by Kuriyama | HEX-SPN Series | Combination Hose Nipple with Hex | 1-1/4" Male NPT x 1-1/4" Hose Barb | Zinc Plated Steel

HEX-SPN125 by Kuriyama | HEX-SPN Series | Combination Hose Nipple with Hex | 1-1/4" Male NPT x 1-1/4" Hose Barb | Zinc Plated Steel

Minimum Order Quantity: 5 Units

Sale price$9.50
Buy more, save moreDiscounts applied in cart/checkout.

What are the Features?

  • Versatile hose connectors designed to connect hose and pipes of the same thread size.
  • Hex design allows for tighterning with wrench.
  • Frequently used in low pressure suction and discharge applications, and can be connected to many different types of strainers and couplings.
  • Multi-serrated barb design allows for secure hose grip when properly clamped or crimped.

What are the Materials?

  • Plain Steel - Complies with ASTM A53 B welded pipe.
Part Number Size
(in)		 PSI Rating
at 70°F		 Weight
Each
(lbs)
HEX-SPN050 1/2" 125 PSI 0.14 lbs
HEX-SPN075 3/4" 125 PSI 0.22 lbs
HEX-SPN100 1" 125 PSI 0.32 lbs
HEX-SPN125 1-1/4" 125 PSI 0.56 lbs

Additional Product Data:

Series:
  • HEX-SPN Series
MAWP:

125

Shape:

Straight

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
