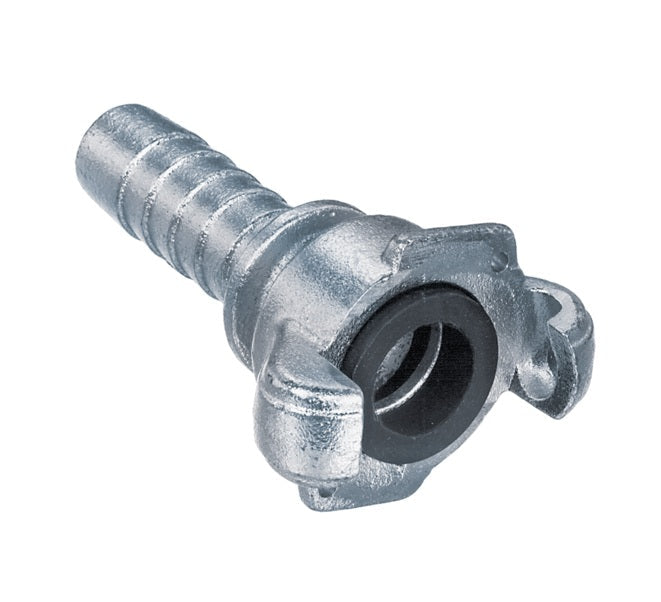

HE-200 by Kuriyama | HE Series | Universal Air Hose Coupling | Two Lug | 2" Hose ID | Zinc Plated Carbon Steel

HE-200 by Kuriyama | HE Series | Universal Air Hose Coupling | Two Lug | 2" Hose ID | Zinc Plated Carbon Steel

Sale price$26.56

Kuriyama of America Inc.
HE Series | Universal Air Hose Coupling | Two Lug | Zinc Plated Carbon Steel

Applications include compressed air systems and pneumatic tools.

Designed for compressed air and water service only.


In stock
Buy More, Save More!
Quantity Price Each
10–39 $24.97
40–79 $22.58
80+ $19.92
Discounts applied in cart/checkout.

What are the Applications?

  • Applications include compressed air systems and pneumatic tools.
  • Designed for compressed air and water service only.
  • WARNING: Not for use in steam applications!

What are the Materials?

  • ASTM A27, Grade 1030 Zinc Plated Carbon Steel.
  • Complies with Mil-Spec A-A-59553.
Part Number Hose ID Size
(in)		 Style Gasket PSI Rating
at 70°F		 Weight
Each
(lbs)
HE-38 3/8" 2 Lug AHG-75 150 PSI 0.44 lbs
HE-50 1/2" 2 Lug AHG-75 150 PSI 0.48 lbs
HE-75 3/4" 2 Lug AHG-75 150 PSI 0.56 lbs
HE-100 1" 2 Lug AHG-75 150 PSI 0.64 lbs
HE-125 1-1/4" 4 Lug AHG-100 150 PSI 1.70 lbs
HE-150 1-1/2" 4 Lug AHG-100 150 PSI 1.80 lbs
HE-200 2" 4 Lug AHG-100 150 PSI 2.00 lbs

Product Data:

Series:
  • HE Series
MAWP:

150

Shape:

Straight

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
