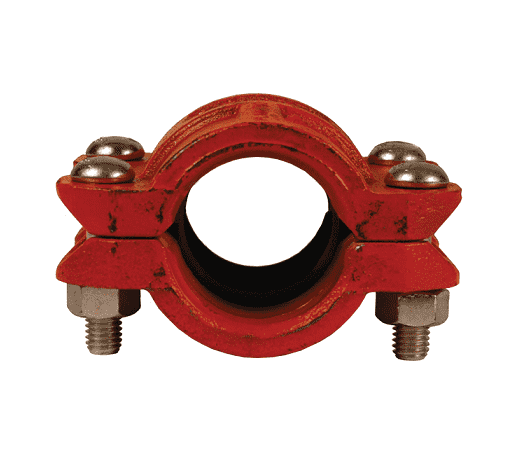

HDPE600BU Dixon Valve Ductile Iron High Density Polyethylene (HDPE) Coupling with Buna-N Gasket - 6" Nominal Size - 6.625" Pipe OD

HDPE600BU Dixon Valve Ductile Iron High Density Polyethylene (HDPE) Coupling with Buna-N Gasket - 6" Nominal Size - 6.625" Pipe OD

Sale price$1,150.58

Dixon Pipe & Welding Fittings - High Density Polyethylene (HDPE) Couplings - Ductile Iron w/ Buna-N Gasket

Buy More, Save More!
Quantity Price Each
4–7 $1,081.55
8–14 $1,035.52
15+ $920.46
Discounts applied in cart/checkout.

Product Data:

Material(s):
  • Ductile Iron
Seal Material(s):
  • Buna-N/Nitrile Rubber
Maximum Clamp I.D.:

6.625"
Applications:
  • Designed for mechanically joining high density polyethylene pipe and fittings.
Features:
  • ductile iron body with rust inhibiting paint.
  • uses four bolts to drive the sharply machined housing teeth into the outside of the pipe.
  • Comparable to: Grinnell's #9095.
  • For replacement gaskets, nuts, and bolts see: Pipe and Welding Accessories
Dimensions:
Part Number Nominal Size Pipe OD Coupling Dimensions Bolts Weight (Lbs.)
A B C Qty Size Length
HDPE200BU 2" 2.375" 3-3/8" 5-1/2" 4-5/8" 4 1/2" 2-3/8" 4.5000
HDPE300BU 3" 3.500" 4-5/8" 6-3/4" 4-5/8" 4 1/2" 3" 8.5000
HDPE400BU 4" 4.500" 5-1/4" 8" 5-3/4" 4 1/2" 3" 12.0000
HDPE600BU 6" 6.625" 7-1/2" 11" 5-7/8" 4 5/8" 3-1/2" 18.0000

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
