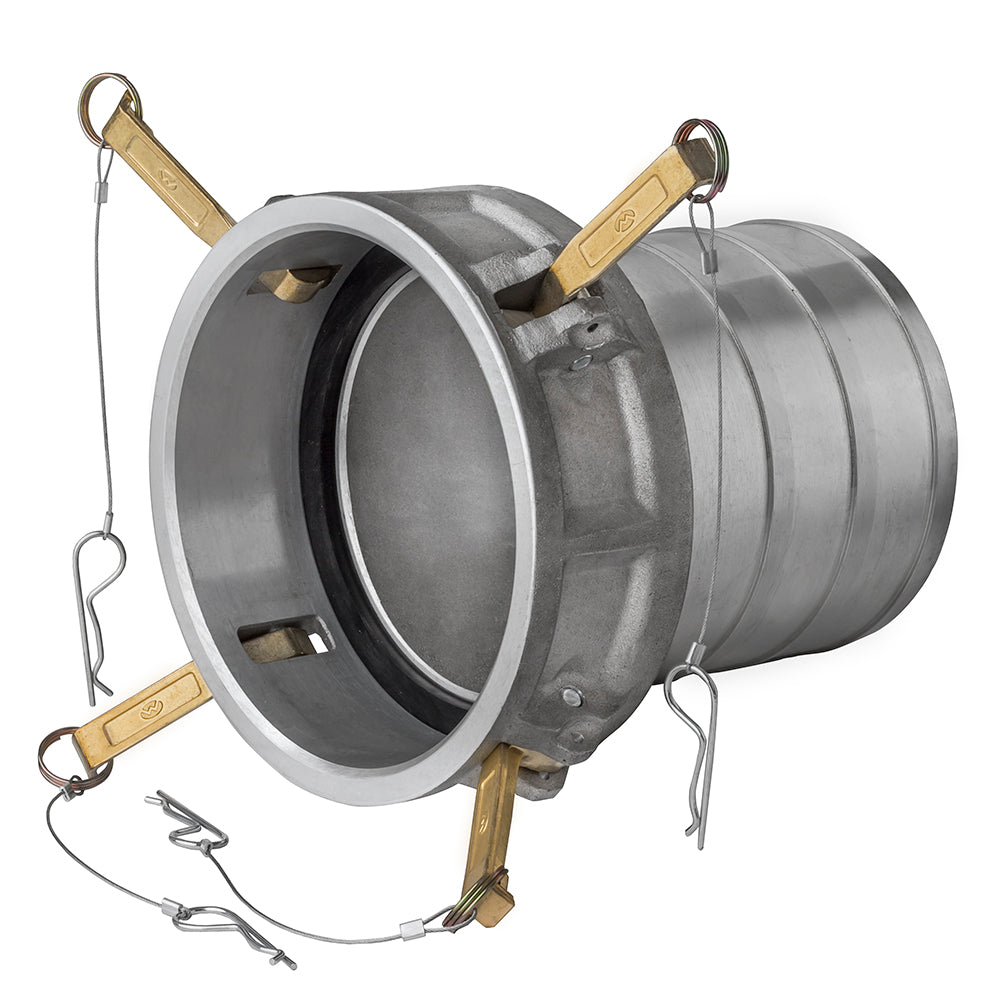

HDAL-C801 by Kuriyama | AL-C Series | Part C | Cam & Groove Fitting | 8" Coupler x 8" Hose Barb | Aluminum
Kuriyama of America Inc.
Cam & Groove (Camlock) Fitting | AL-C Series | Part C | Coupler x Hose Barb | Aluminum
Kuriyama Camlock Couplings are intended for use in many industrial applications.
High quality design made to withstand rigorous applications found in industrial markets.
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–14 | $441.98 |
| 15–29 | $399.66 |
| 30+ | $352.64 |
Discounts applied in cart/checkout.
What are the Applications?
- Kuriyama Camlock Couplings are intended for use in many industrial applications.
- Ideal for agriculture, industrial, petroleum, construction, and irrigation.
What are the Features?
- High quality design made to withstand rigorous applications found in industrial markets.
- Tri-Couple™ design available in 1-1/2", 2", 2-1/2", 3", 4", 6" sizes.
- Hose Barbs especially designed for easy assembly with Tigerflex™ type hoses.
- Kuriyama offers two 8" coupling styles in aluminum.*
- Aluminum alloy specially designed for high tensile strength and impact resistance.
- Supplied with forged brass handles which results in less wear on connecting parts.
- 8" & 10" sizes supplied with four brass handles.
What are the Materials?
- ASTM aluminum alloy.
- Complies with Mil-Spec A-A-59326 for interchangeability in relevant sizes.
- Forged brass handles.
- Zinc-plated carbon steel handle pins, pull rings and safety clips.
- Buna-N gasket included.
| Part Number | Coupler Size (in) |
Thread Size Female NPT (in) |
PSI Rating at 70°F |
ASTM Specification |
Weight Each (lbs) |
|---|---|---|---|---|---|
| AL-C050 | 1/2" | 1/2" | 250 PSI | B108-92 356 | 0.20 lbs |
| AL-C075 | 3/4" | 3/4" | 250 PSI | B85 Grade 383 | 0.26 lbs |
| AL-C100 | 1" | 1" | 250 PSI | B85 Grade 383 | 0.42 lbs |
| AL-C125 | 1-1/4" | 1-1/4" | 250 PSI | B108-92 356 | 0.68 lbs |
| AL-C150** | 1-1/2" | 1-1/2" | 250 PSI | B85 Grade 383 | 0.74 lbs |
| AL-C200** | 2" | 2" | 250 PSI | B85 Grade 383 | 0.98 lbs |
| AL-C2015 | 2" | 1-1/2" | 250 PSI | B85 Grade 383 | 0.93 lbs |
| AL-C250** | 2-1/2" | 2-1/2" | 150 PSI | B85 Grade 383 | 1.28 lbs |
| AL-C300** | 3" | 3" | 150 PSI | B85 Grade 383 | 2.20 lbs |
| AL-C3020 | 3" | 2" | 150 PSI | B85 Grade 383 | 1.74 lbs |
| AL-C3040 | 3" | 4" | 150 PSI | B85 Grade 383 | 2.29 lbs |
| AL-C400** | 4" | 4" | 150 PSI | B85 Grade 383 | 3.16 lbs |
| AL-C4030 | 4" | 3" | 150 PSI | B85 Grade 383 | 2.94 lbs |
| AL-C500 | 5" | 5" | 75 PSI | B108-92 356 | 3.88 lbs |
| AL-C600** | 6" | 6" | 75 PSI | B85 Grade 383 | 7.70 lbs |
| AL-C800* | 8" | 8" | 50 PSI | B108-92 356 | 10.83 lbs |
| AL-C1000 | 10" | 10" | 50 PSI | B26, Grade 713 | 16.67 lbs |
| HDAL-C801* | 8" | 8" | 50 PSI | B26, Grade 713 | 12.58 lbs |
** Designates Tri-Couple Fitting.
* DETERMINING 8" COUPLING STYLE: To determine which version you need, please measure the outside diameter of the male coupling. If the measurement is less than 9" it is AL-B800. If the measurement is more than 9" it is HDAL-B801.
Product Data:
Series:
MAWP:
50
Shape:
Straight
Cam & Groove Type:
Type C
Ends Configuration:
Material(s):
Seal Material(s):
