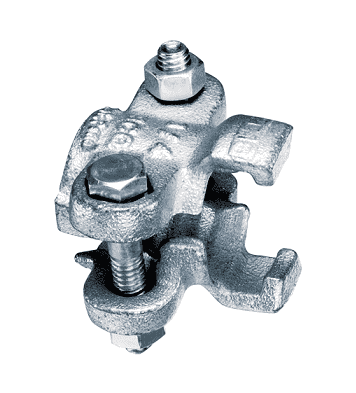

HC-100 by Kuriyama | Universal 2 Bolt Hose Clamp | Size Range: 1-17/32" - 1-21/32" | Torque: 6 ft. lbs. | Cast Steel

HC-100 by Kuriyama | Universal 2 Bolt Hose Clamp | Size Range: 1-17/32" - 1-21/32" | Torque: 6 ft. lbs. | Cast Steel

Sale price$11.01

Kuriyama Couplings™ - Interlocking Bolt Clamps - 2 Bolt Hose Clamp - Cast Steel

Buy More, Save More!
Quantity Price Each
10–39 $10.35
40–79 $9.36
80+ $8.26
Discounts applied in cart/checkout.

Product Data:

Material(s):
  • Steel
Minimum Clamp I.D.:

1.53125"

Maximum Clamp I.D.:

1.65625"
Applications:
  • Recommended for use with Universal Couplings
  • Construction
  • For use with Kuriyama Hoses
Features:
  • All Universal Air Hose Couplings are investment cast steel for better dimensional precision, with machined threads and recessed gasket seat area
  • Note: For safety purposes, use of lanyard and safety clip (supplied with hose ends) is recommended with all Universal Air Hose Couplings.
  • WARNING: Not to be used for steam service
Materials:
  • N/A
Part Number Size Range (in.) Torque (ft. lbs.) Weight (Lbs.)
HC-50 1" - 1-1/8" 6 ft. Lbs. 0.32 lbs
HC-75 1-1/8" - 1-5/16" 12 ft. Lbs. 0.56 lbs
HC-100 1-17/32" - 1-21/32" 21 ft. Lbs. 0.72 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
