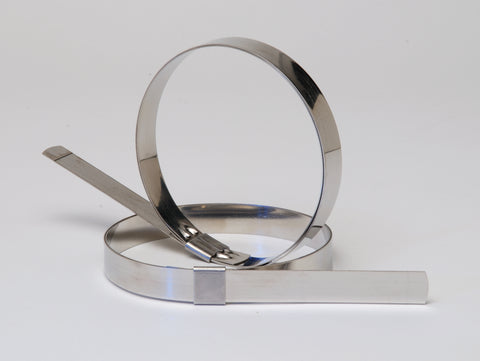

HBCP5S by Strapbinder | Center Punch Clamp | 1-1/4" ID | 5/8" Width | .025" Thickness | 201 Stainless Steel | Box of 100
by Strapbinder
Preformed Hose Clamps:Galvanized Carbon Steel Center Punch Clamp
Under conditions of high corrosion, we recommend the stainless steel clamp.
Double wrapped and locked with the conical punch of the HBC300 Tensioning Tool.
Measure the outside diameter of the hose with the fitting inserted to figure out what size clamp you would need.
Package Quantity: 100 EA
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $140.14 |
| 20–59 | $126.73 |
| 60+ | $111.82 |
Discounts applied in cart/checkout.
Product Data:
Material(s):
Clamp Thickness:
0.025"
Clamp Width:
0.625"
Minimum Clamp I.D.:
1-1/4"
| Features: | |||
|---|---|---|---|
|
| Part Number | Clamp ID | Band Width | Band Thickness | Material | Weight |
|---|---|---|---|---|---|
| HBCP3S | 13/16" | 3/8" | .025" | 201 Stainless Steel | 3.60 lbs |
| HBCP311S | 1-3/16" | 3/8" | .025" | 201 Stainless Steel | 4.60 lbs |
| HBCP4S | 1" | 5/8" | .025" | 201 Stainless Steel | 8.30 lbs |
| HBCP5S | 1-1/4" | 5/8" | .025" | 201 Stainless Steel | 8.70 lbs |
| HBCP6S | 1-1/2" | 5/8" | .025" | 201 Stainless Steel | 9.70 lbs |
| HBCP7S | 1-3/4" | 5/8" | .025" | 201 Stainless Steel | 10.60 lbs |
| HBCP8S | 2" | 5/8" | .025" | 201 Stainless Steel | 11..5 lbs |
| HBCP9S | 2-1/4" | 5/8" | .025" | 201 Stainless Steel | 12.60 lbs |
| HBCP10S | 2-1/2" | 5/8" | .025" | 201 Stainless Steel | 6.80 lbs |
| HBCP11S | 2-3/4" | 5/8" | .025" | 201 Stainless Steel | 7.30 lbs |
| HBCP12S | 3" | 5/8" | .025" | 201 Stainless Steel | 7.70 lbs |
| HBCP14S | 3-1/2" | 5/8" | .025" | 201 Stainless Steel | 8.70 lbs |
| HBCP16S | 4" | 5/8" | .025" | 201 Stainless Steel | 4.90 lbs |
| HBCP18S | 4-1/2" | 5/8" | .025" | 201 Stainless Steel | 5.50 lbs |
| HBCP20S | 5" | 5/8" | .025" | 201 Stainless Steel | 5.90 lbs |
| HBCP24S | 6" | 5/8" | .025" | 201 Stainless Steel | 6.80 lbs |
| HBCP28S | 7" | 5/8" | .025" | 201 Stainless Steel | 7.40 lbs |
| HBCP32S | 8" | 5/8" | .025" | 201 Stainless Steel | 8.20 lbs |
| HBCP3 | 13/16" | 3/8" | .025" | Galvanized Carbon Steel | 3.60 lbs |
| HBCP311 | 1-3/16" | 3/8" | .025" | Galvanized Carbon Steel | 4.60 lbs |
| HBCP4 | 1" | 5/8" | .025" | Galvanized Carbon Steel | 8.30 lbs |
| HBCP5 | 1-1/4" | 5/8" | .025" | Galvanized Carbon Steel | 8.70 lbs |
| HBCP6 | 1-1/2" | 5/8" | .025" | Galvanized Carbon Steel | 9.70 lbs |
| HBCP7 | 1-3/4" | 5/8" | .025" | Galvanized Carbon Steel | 10.60 lbs |
| HBCP8 | 2" | 5/8" | .025" | Galvanized Carbon Steel | 11..5 lbs |
| HBCP9 | 2-1/4" | 5/8" | .025" | Galvanized Carbon Steel | 12.60 lbs |
| HBCP10 | 2-1/2" | 5/8" | .025" | Galvanized Carbon Steel | 6.80 lbs |
| HBCP11 | 2-3/4" | 5/8" | .025" | Galvanized Carbon Steel | 7.30 lbs |
| HBCP12 | 3" | 5/8" | .025" | Galvanized Carbon Steel | 7.70 lbs |
| HBCP14 | 3-1/2" | 5/8" | .025" | Galvanized Carbon Steel | 8.70 lbs |
| HBCP16 | 4" | 5/8" | .025" | Galvanized Carbon Steel | 4.90 lbs |
| HBCP18 | 4-1/2" | 5/8" | .025" | Galvanized Carbon Steel | 5.50 lbs |
| HBCP20 | 5" | 5/8" | .025" | Galvanized Carbon Steel | 5.90 lbs |
| HBCP24 | 6" | 5/8" | .025" | Galvanized Carbon Steel | 6.80 lbs |
| HBCP28 | 7" | 5/8" | .025" | Galvanized Carbon Steel | 7.40 lbs |
| HBCP32 | 8" | 5/8" | .025" | Galvanized Carbon Steel | 8.20 lbs |
