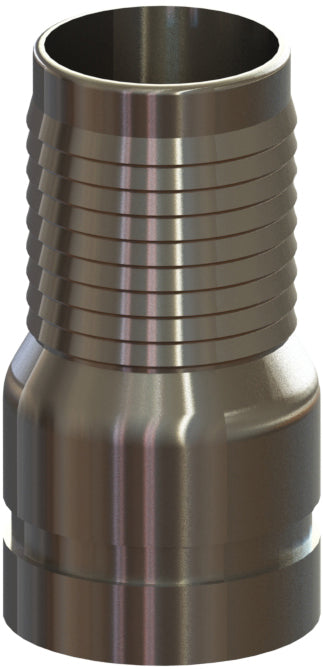

HAGSS-12 by Campbell Fittings | Grooved Combination Nipple | 3" Female NPT Thread x 3" Hose Barb | 316 Stainless Steel

HAGSS-12 by Campbell Fittings | Grooved Combination Nipple | 3" Female NPT Thread x 3" Hose Barb | 316 Stainless Steel

Sale price$138.66

by Campbell
Combination Nipples & Menders:HAGSS Grooved Combination Nipple
Buy More, Save More!
Quantity Price Each
5–19 $130.34
20–59 $117.86
60+ $104.00
Discounts applied in cart/checkout.

Product Data:

Series:
  • HAGSS Series
Shape:

Straight

Ends Configuration:
  • 3in Female NPT
  • 3in Hose Barb
Recommended Use:
  • Liquid, bulk handling, low pressure air
Recommended Hose Attachments:
  • Sleeves
  • Preformed Bands Clamps
Features and Benefits:
  • Maximum number of serrations for maximum holding power
  • Long lead serration for easier hose insertion
  • Formed hex wrench area on 3/4" through 1-1/2" combination nipples for easier installation
Part Number Hose Size
HAGSS-4 1"
HAGSS-5 1-1/4"
HAGSS-6 1-1/2"
HAGSS-8 2"
HAGSS-12 3"
HAGSS-16 4"
HAGSS-20 5"
HAGSS-24 6"
HAGSS-32 8"

Campbell Fittings

Campbell Fittings offers a range of hose fittings, couplings, ferrules, and sleeves, for applications across a variety of industries.
