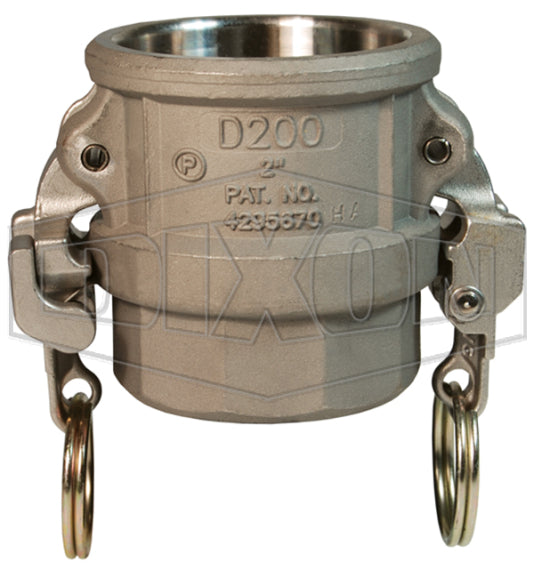

HAD200EZ by Dixon Valve | EZ Boss-Lock Cam & Groove Coupler | Type D | 2" Coupler x 2" Female NPT | Hastelloy®

HAD200EZ by Dixon Valve | EZ Boss-Lock Cam & Groove Coupler | Type D | 2" Coupler x 2" Female NPT | Hastelloy®

Sale price$534.47

Dixon Valve
EZ Boss-Lock Cam & Groove Fitting | Type D | Coupler x Female NPT | Hastelloy®

Designed for use with liquids.
Buy More, Save More!
Quantity Price Each
5–14 $502.40
15–29 $454.30
30+ $400.85
Discounts applied in cart/checkout.

Product Data:

Brand:
  • EZ Boss-Lock
MAWP:

250

Shape:

Straight
Construction:
  • 316 stainless steel EZ Boss-Lock™ cam arms.
  • 303 stainless steel pins.
  • Trivalent chrome plated 12 gauge steel rings.
  • Supplied with FKM-A gasket.
Safety Notes:
  • Under no circumstances should cam and groove couplings be used for compressed air or steam service!
  • Under no circumstances should the EZ Boss-Lock cam arms be used on any fitting not specifically designed for their use.
  • Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70°F (21°C) with a standard seal installed. For use at elevated temperature or other unusual operating conditions, consult Dixon.
How It Works:
  • To make a connection, simply slide the adapter into the coupler and with normal hand pressure, press the cam levers down.
  • Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter.
Specifications:
  • Produced to interchange with all product produced to Commercial Item Description A-A-59326D.
Hastelloy® CW12MW
Part Number		 Size Max. Operating Pressure
HAD100EZ 1" 250 PSI
HAD150EZ 1-1/2" 250 PSI
HAD200EZ 2" 250 PSI
HAD300EZ 3" 125 PSI

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
