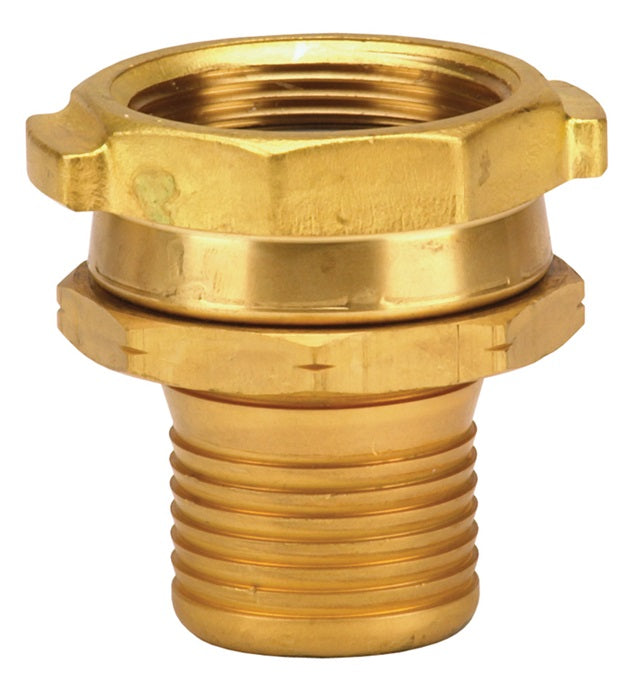

H5241L-A-BU by Dixon Valve | Holedall® API Certified Attached Petroleum Female Coupling | Long | 2" Female NPSH x 2" Hose ID | Brass

H5241L-A-BU by Dixon Valve | Holedall® API Certified Attached Petroleum Female Coupling | Long | 2" Female NPSH x 2" Hose ID | Brass

Sale price$122.59

Dixon Valve
Holedall® API Certified Attached Petroleum Female Coupling

Recommended for discharge and suction service. Commonly used in the transfer of fuel to homes, airplanes, ships, etc.

Tested and compliant with API 1529 6th edition.
Buy More, Save More!
Quantity Price Each
5–19 $115.23
20–59 $104.20
60+ $91.94
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Holedall
Shape:

Straight

Ends Configuration:
  • 2in Female NPS
  • 2in Hose Barb
Features:
  • Stems are machined from bar stock or solid brass forgings.
  • Male has octagonal facets for tightening with a wrench.
  • The stem is expanded to nominal ID of hose for a rigid, uniform, full-flow area.
  • Couplings are pre-lubricated for assembly.
Notes:
  • Designed for internal expansion only.
  • The working pressure of the 520-H fitting varies with the size of the fitting, the size and construction of the hose and the media being conveyed.
Safety Notes:
  • Do not interchange with other manufacturer's fittings.
  • Designed for internal expansion only.
  • Dixon Holedall stems and ferrules are specifically designed to be used together as a coupling system.
  • Do not use a wrench or vice on ferrule.
  • Holedall couplings, regardless of coupling style, are never to be used for steam service at any pressure.
  • Holedall fittings are not to be used with cable reinforced high-pressure hose, 4 or 6 braid wire hydraulic hose or any other service not listed in the recommendations. Consult Dixon for recommendations on usage.
  • Strict adherence to ferrule OD range (Internally Expanded) for each hose end to be assembled is essential for satisfactory performance.
  • Hose service working pressure (including surges and spikes) is never to exceed the maximum recommended working pressure for the fitting. The assembly's (hose + coupling) maximum working pressure is the lesser of the hose rated working pressure or the coupling rated working pressure.
  • Media being transported through the hose should be compatible with the stem material. Compatibility of ferrule material with the environment in which it will be used is recommended. Consult the Compatibility Chart or the Dixon factory for material compatibility.
  • For applications other than the ones list, please consult Dixon.
Holedall® API Certified Attached Petroleum Female Coupling








Brass
Part Number		 Thread Type Hose ID







H5211-A-BU 1" Female NPSH 1"







H5221-A-BU 1-1/4" Female NPSH 1-1/4"







H5231-A-BU 1-1/2" Female NPSH 1-1/2"







H5241L-A-BU 2" Female NPSH 2"







H5251L-A-BU 2-1/2" Female NPSM 2-1/2"







H5261L-A-BU 3" Female NPSM 3"







Holedall® API Certified Attached Petroleum Male Coupling
Brass
Part Number		 Thread Type Hose ID
H5212-A 1" Male NPT 1"
H5222-A 1-1/4" Male NPT 1-1/4"
H5232-A 1-1/2" Male NPT 1-1/2"
H5242L-A 2" Male NPT 2"
H5252L-A 2-1/2" Male NPT 2-1/2"
H5262L-A 3" Male NPT 3"
H5282L-A 4" Male NPT 4"

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
