H5021B-AL by ZSi-Foster | Beta Clamp Stacking Kit | Heavy Series | 1" Pipe | Aluminum

H5021B-AL by ZSi-Foster | Beta Clamp Stacking Kit | Heavy Series | 1" Pipe | Aluminum

Sale price$40.15

ZSI-Foster
Beta Hydraulic Clamps - Heavy Series - Stacking Kit - Aluminum Cushion

Recommended systems with greater than 1,500 psi (103 bar) operating pressure, operations with pressure surges, and applications with wide temperature fluctuations.

Aluminum cushions are used in higher heat applications up to 500°F (260°C).
Buy More, Save More!
Quantity Price Each
10–39 $37.74
40–79 $34.13
80+ $30.11
Discounts applied in cart/checkout.

Product Data:

Series:
  • Heavy Series
Maximum Clamp I.D.:

1"
Overview:
  • Beta Clamps are an economical and easy way of securing pipe, tube, hose, and electrical cables. They are used in industrial, mobile and marine hydraulics, general industrial pipe construction, press technology, instrumentation and control technology, and many other applications.
Features:
  • Shock absorption, vibration dampening, and noise reducing properties.
  • Securely and easily anchor clamps to machinery and steel work with weldable plates.
  • Easily cleaned.
  • Ribs in clamp bore absorb shock and vibration in direction of tube axis.
  • Upper and lower clamp halves are identical.
Materials:
  • Components: Steel
  • Cushion: Aluminum
Installation:

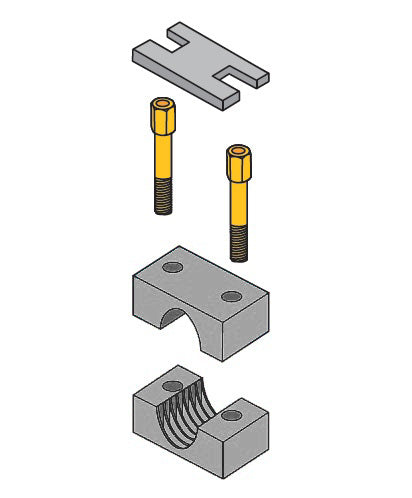

Assembly Includes:
Quantity Description
1 Each Safety Plate
2 Each Stacking Bolts
1 Set Cushions
Clamp for:
Tube
Part Number		 Pipe
Part Number		 Size Hex Bolt
H3004B-AL - 1/4" 3/8-16 x 1-3/4
H3008B-AL H4014B-AL 1/2" Tube: 3/8-16 x 1-3/4
Pipe: 3/8-16 x 2-1/4
H3010B-AL - 5/8" 3/8-16 x 1-3/4
H4012B-AL H4017B-AL 3/4" 3/8-16 x 2-1/4
H4016B-AL H5021B-AL 1" Tube: 3/8-16 x 2-1/4
Pipe: 3/8-16 x 2-3/4
H5020B-AL H5027B-AL 1-1/4" 3/8-16 x 2-3/4
H5024B-AL H6030B-AL 1-1/2" Tube: 3/8-16 x 2-3/4
Pipe: 1/2-13 x 4
- H6038B-AL 2" 1/2-13 x 4
- H7046B-AL 2-1/2" 5/8-11 x 5-1/4
H7044B-AL - 2-3/4" 5/8-11 x 5-1/4
H7050B-AL H7056B-AL 3" 5/8-11 x 5-1/4
H7057B-AL - 3-1/2" 5/8-11 x 5-1/4
