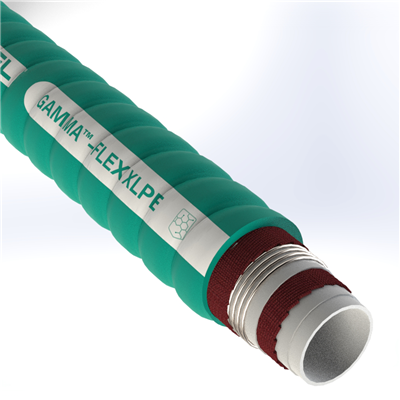

GXL20F1-1.5 by Texcel | GAMMA™-FLEX XLPE Series | Cross-Linked Polyethylene Chemical Hose | 1-1/2" Hose ID | 200 PSI | Green
GAMMA™ by Texcel
FLEX XLPE Series | Cross-Linked Polyethylene Chemical Hose
Purchased Lengths of hose will be multiple pieces unless Product Option or Title specifies Exact Length.
Package Quantity: 100 Feet
| Buy More, Save More! | |
| Quantity | Price Each |
| 4–7 | $25.50 |
| 8–14 | $24.42 |
| 15+ | $21.70 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Color(s):
Internal Diameter:
Outer Diameter:
Tubing Construction:
Cover Construction:
| Technical Data: | |||
|---|---|---|---|
| Description: | Designed to handle a wide range of chemicals, solvents and corrosive liquids in both pressure and suction service. | Tube: | Clear, cross-linked polyethylene |
| Cover: | Green, EPDM (corrugated) | Reinforcement: | High tensile tire cord plies; dual helix wire |
| Safety Factor: | 4:1 | Temperature: | -40°F to +212°F |
| Branding: | TEXCEL® GAMMA™-FLEX XLPE - CHEMICAL SUCTIOn AND DISCHARGE HOSE 200 PSI W.P. XLPE TUBE | Safety Note : | Temperature rating depends on specific chemical conveyed and concentration |
| Features: | Exceptional flexibility | ||
| Part Number | Hose ID | Hose OD | Working Pressure (psi) | Vacuum (in./HG) | Bend Radius | Lbs./ft |
|---|---|---|---|---|---|---|
| GXL20F1-1.0 | 1" | 1-30/64" | 200 psi | 29 | 2.5" | 0.56 lbs |
| GXL20F1-1.5 | 1-1/2" | 1-62/64" | 200 psi | 29 | 3" | 0.80 lbs |
| GXL20F1-2.0 | 2" | 2-32/64" | 200 psi | 29 | 4" | 1.15 lbs |
| GXL20F1-2.5 | 2-1/2" | 3" | 200 psi | 29 | 5" | 1.41 lbs |
| GXL20F1-3.0 | 3" | 3-35/64" | 200 psi | 29 | 6" | 1.89 lbs |
| GXL20F1-4.0 | 4" | 4-39/64" | 200 psi | 29 | 8" | 2.69 lbs |
