GWAP-32x32 by Couplamatic | GW Series Coupling | 2" Hose ID x 2-11-1/2 Thread NPTF | API Thread Male Solid | Straight | Trivalent Zinc Plating

GWAP-32x32 by Couplamatic | GW Series Coupling | 2" Hose ID x 2-11-1/2 Thread NPTF | API Thread Male Solid | Straight | Trivalent Zinc Plating

Sale price$100.95
Buy more, save moreDiscounts applied in cart/checkout.
GW Series — 100R12 No-Skive Spiral

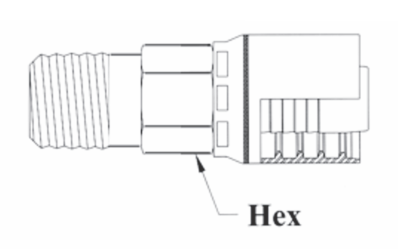

GWAP GW Series — NPTF, Male Solid, Straight

GWAP is the NPTF, Male Solid, Straight configuration of the GW Series, terminating SAE 100R12 four spiral hose and 1-1/2" to 2" 100R2 thin cover hose.

1

What are the main product features?
  • NO SKIVE REQUIRED
  • The GW Series Four Spiral Coupling is compatible with some fixed and virtually all adjustable spiral crimp machines on the market. Check crimp O.D. carefully.
  • Trivalent Zinc Plating
  • Bite to the wire — the shell grips the hose reinforcement directly.
  • Also covers large 100R2 — the recommended system for 1-1/2" and 2" 100R2 thin cover hose.
2

Which sizes are available?
Part Number Hose ID Pipe Size Thread Size Hex Size
GWAP-32x32 2" 2" 2-11-1/2 2-1/2"

Additional Product Data:

Series:
  • GW Series
Shape:

Straight

Ends Configuration:
  • 2-1/2in Male NPTF
  • 2in Hose Barb

Couplamatic Systems Inc

In the business for over 50 years, we're here to bring you the highest quality, most rigorously tested, American made hydraulic components on the market. We utilize state-of-the-art facilities and equipment to produce industry leading, quality hydraulic products. When you buy Couplamatic System Inc. products, you are buying precision and reliability.
