GW81-20x20 by Couplamatic | GW Series Coupling | 1-1/4" Hose ID x 1-1/4" Extra Heavy Duty Flange Size | 45° Elbow | Trivalent Zinc Plating | For use on Caterpillar® Equipment

GW81-20x20 by Couplamatic | GW Series Coupling | 1-1/4" Hose ID x 1-1/4" Extra Heavy Duty Flange Size | 45° Elbow | Trivalent Zinc Plating | For use on Caterpillar® Equipment

Sale price$79.47

Couplamatic Systems Inc.
GW Series - Extra Heavy Duty Flange - 45° Bend (For use on Caterpillar® Equipment)
Buy More, Save More!
Quantity Price Each
5–19 $74.70
20–59 $67.55
60+ $59.60
Discounts applied in cart/checkout.

Product Data:

Series:
  • GW Series
Shape:

45 Degree

Ends Configuration:
  • 1-1/4in Caterpillar Flange
  • 1-1/4in Hose Barb
Description:
  • NO SKIVE REQUIRED.
  • The GW Series Four Spiral Coupling is compatible with some fixed and virtually all adjustable spiral crimp machines on the market. Check crimp O.D. carefully.
  • Trivalent Zinc Plating

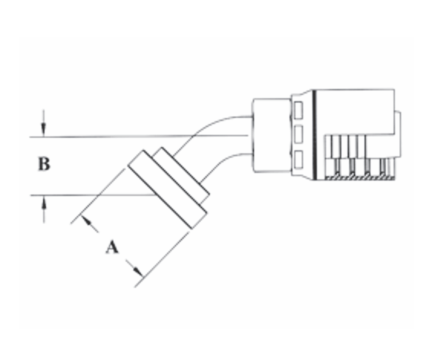

Part Number Hose ID Flange Size A-Dia Inches B-Drop Inches
GW81-12x12 3/4" 3/4" 1.62" 1.25"
GW81-16x16 1" 1" 1.88" 1.40"
GW81-20x20 1-1/4" 1-1/4" 2.12" 1.50

Couplamatic Systems Inc

In the business for over 50 years, we're here to bring you the highest quality, most rigorously tested, American made hydraulic components on the market. We utilize state-of-the-art facilities and equipment to produce industry leading, quality hydraulic products. When you buy Couplamatic System Inc. products, you are buying precision and reliability.
