GW81-16x16 by Couplamatic | GW Series Coupling | 1" Hose ID x 1" Extra Heavy Duty Flange Size | 45° Elbow | Trivalent Zinc Plating | For use on Caterpillar® Equipment

GW81-16x16 by Couplamatic | GW Series Coupling | 1" Hose ID x 1" Extra Heavy Duty Flange Size | 45° Elbow | Trivalent Zinc Plating | For use on Caterpillar® Equipment

Sale price$55.58

Couplamatic Systems Inc.
GW Series - Extra Heavy Duty Flange - 45° Bend (For use on Caterpillar® Equipment)
Buy More, Save More!
Quantity Price Each
10–39 $52.25
40–79 $47.24
80+ $41.69
Discounts applied in cart/checkout.

Product Data:

Series:
  • GW Series
Shape:

45 Degree

Ends Configuration:
  • 1in Caterpillar Flange
  • 1in Hose Barb
Description:
  • NO SKIVE REQUIRED.
  • The GW Series Four Spiral Coupling is compatible with some fixed and virtually all adjustable spiral crimp machines on the market. Check crimp O.D. carefully.
  • Trivalent Zinc Plating

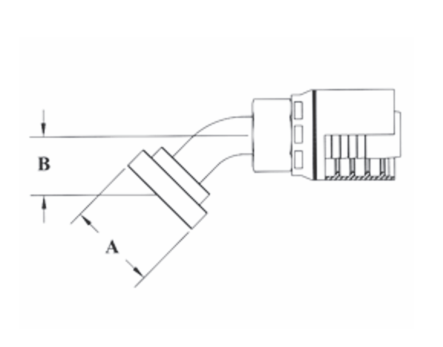

Part Number Hose ID Flange Size A-Dia Inches B-Drop Inches
GW81-12x12 3/4" 3/4" 1.62" 1.25"
GW81-16x16 1" 1" 1.88" 1.40"
GW81-20x20 1-1/4" 1-1/4" 2.12" 1.50
