GW80-20x20 by Couplamatic | GW Series Coupling | 1-1/4" Hose ID x 1-1/4" Extra Heavy Duty Flange Size | Straight | Trivalent Zinc Plating | For use on Caterpillar® Equipment

GW80-20x20 by Couplamatic | GW Series Coupling | 1-1/4" Hose ID x 1-1/4" Extra Heavy Duty Flange Size | Straight | Trivalent Zinc Plating | For use on Caterpillar® Equipment

Sale price$65.96
Buy more, save moreDiscounts applied in cart/checkout.
GW Series — 100R12 No-Skive Spiral

GW80 GW Series — Straight, for Caterpillar Equipment

GW80 is the Straight, for Caterpillar Equipment configuration of the GW Series, terminating SAE 100R12 four spiral hose and 1-1/2" to 2" 100R2 thin cover hose.

1

What are the main product features?
  • NO SKIVE REQUIRED
  • The GW Series Four Spiral Coupling is compatible with some fixed and virtually all adjustable spiral crimp machines on the market. Check crimp O.D. carefully.
  • Trivalent Zinc Plating
  • Bite to the wire — the shell grips the hose reinforcement directly.
  • Also covers large 100R2 — the recommended system for 1-1/2" and 2" 100R2 thin cover hose.
2

Which sizes are available?

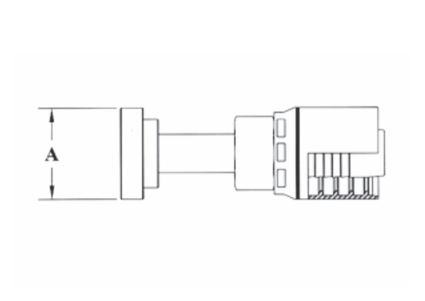

Part Number Hose ID Flange Size A-Dia Inches
GW80-12x12 3/4" 3/4" 1.62"
GW80-16x16 1" 1" 1.88"
GW80-20x20 1-1/4" 1-1/4" 2.12"

Additional Product Data:

Series:
  • GW Series
Shape:

Straight

Ends Configuration:
  • 1-1/4in Caterpillar Flange
  • 1-1/4in Hose Barb

Couplamatic Systems Inc

In the business for over 50 years, we're here to bring you the highest quality, most rigorously tested, American made hydraulic components on the market. We utilize state-of-the-art facilities and equipment to produce industry leading, quality hydraulic products. When you buy Couplamatic System Inc. products, you are buying precision and reliability.
