GW80-16x16 by Couplamatic | GW Series Coupling | 1" Hose ID x 1" Extra Heavy Duty Flange Size | Straight | Trivalent Zinc Plating | For use on Caterpillar® Equipment

GW80-16x16 by Couplamatic | GW Series Coupling | 1" Hose ID x 1" Extra Heavy Duty Flange Size | Straight | Trivalent Zinc Plating | For use on Caterpillar® Equipment

Sale price$50.66

Couplamatic Systems Inc.
GW Series - Extra Heavy Duty Flange - Straight (For use on Caterpillar® Equipment)
Buy More, Save More!
Quantity Price Each
10–39 $47.62
40–79 $43.06
80+ $38.00
Discounts applied in cart/checkout.

Product Data:

Series:
  • GW Series
Shape:

Straight

Ends Configuration:
  • 1in Caterpillar Flange
  • 1in Hose Barb
Description:
  • NO SKIVE REQUIRED.
  • The GW Series Four Spiral Coupling is compatible with some fixed and virtually all adjustable spiral crimp machines on the market. Check crimp O.D. carefully.
  • Trivalent Zinc Plating

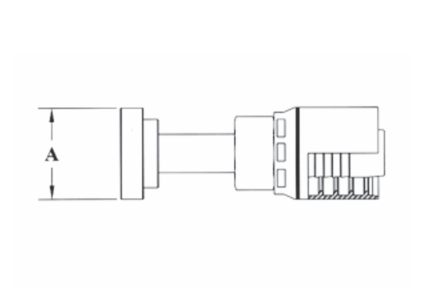

Part Number Hose ID Flange Size A-Dia Inches
GW80-12x12 3/4" 3/4" 1.62"
GW80-16x16 1" 1" 1.88"
GW80-20x20 1-1/4" 1-1/4" 2.12"

Couplamatic Systems Inc

In the business for over 50 years, we're here to bring you the highest quality, most rigorously tested, American made hydraulic components on the market. We utilize state-of-the-art facilities and equipment to produce industry leading, quality hydraulic products. When you buy Couplamatic System Inc. products, you are buying precision and reliability.
